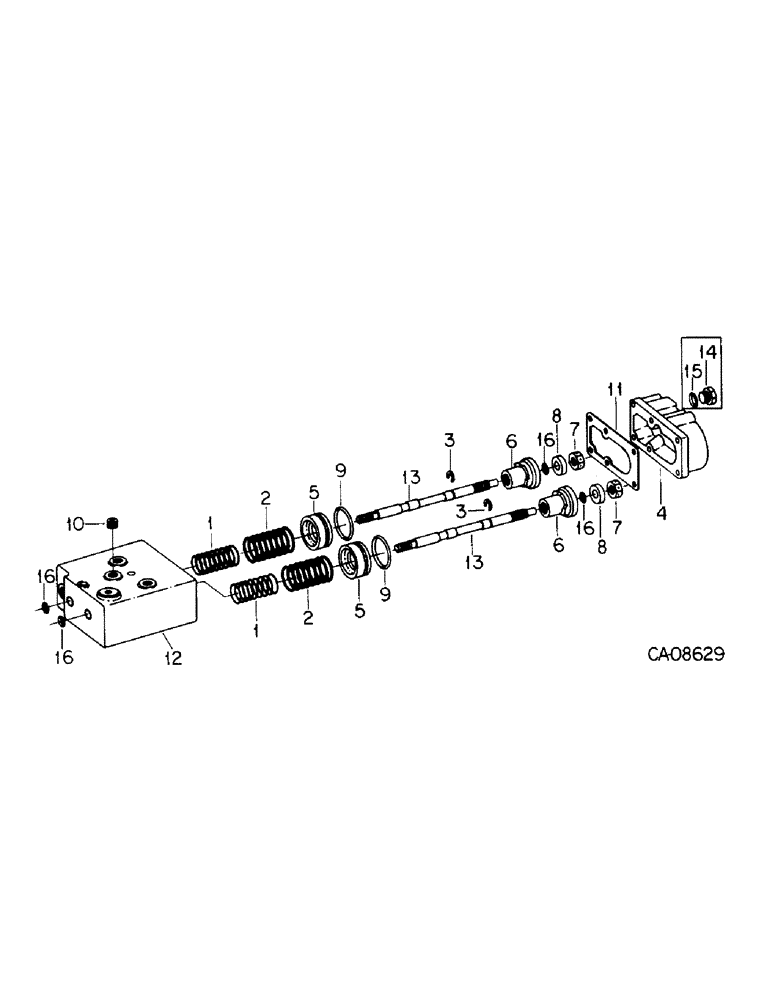

Запчасти Case IH 3488 (04-04) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1272218C91
VALVE
ASSY self-bleeding power brake, Consists of all unmarked parts and those marked Unit A
1шт.
NSS
NOT SOLD SEPARAT
PACKAGE brake valve service, 72803C93, Consists of valve (NSS), instructions (NSS) all marked parts and those marked Unit B, For service replacement, order valve assy, 1272218C91
1шт.
1
1263125C1
SPRING
return, Unit A
2шт.
1
71707C1
SPRING
return, Unit B
2шт.
2
1263124C1
SPRING
large piston, Unit A
2шт.
2
71708C1
SPRING
large piston, Unit B
2шт.
3
85633R1
RING
snap, 1/2 sq sect
2шт.
4
384495R1
CAP
body
1шт.
179796
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5
1/4 x 7/8 pln type 5
6шт.
5
1263122C1
PISTON
large, Unit A
2шт.
5
69156C2
PISTON
large, Unit B
2шт.
6
1263123C1
PISTON
small, Unit A
2шт.
6
69157C1
PISTON
small, Unit B
2шт.
7
9411648
LOCK NUT,1/2"-20, GC
NUT lock, 1/2 cad p/t type 1
2шт.
8
69158C1
WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk
piston
2шт.
9
NSS
NOT SOLD SEPARAT
O-RING piston, Order package 71487C91
2шт.
10
140720C1
PLATE
orifice, Unit A
1шт.
10
384501R1
PLATE
orifice, Unit B
1шт.
11
384503R2
GASKET,0.38mm Thk
body cap
1шт.
12
BODY power brake valve, Not serviced sepeartely, Order valve assy 1272218C91
1шт.
13
SPOOL valve, Not serviced sepatately, Order valve assy 1272218C91
2шт.
14
9410358
PLUG
3/8 C-Z std thd O-ring boss, Unit B
1шт.
15
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, unit B
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING spool
4шт.
71487C91
PACKAGE
brake valve o-ring and gasket service, Consists of
1шт.
9410358
PLUG
1шт.
384503R2
GASKET,0.38mm Thk
1шт.
NSS
NOT SOLD SEPARAT
O-RING
8шт.
NSS
NOT SOLD SEPARAT
INSTRUCTIONS
1шт.
Выбрано товаров: 31
