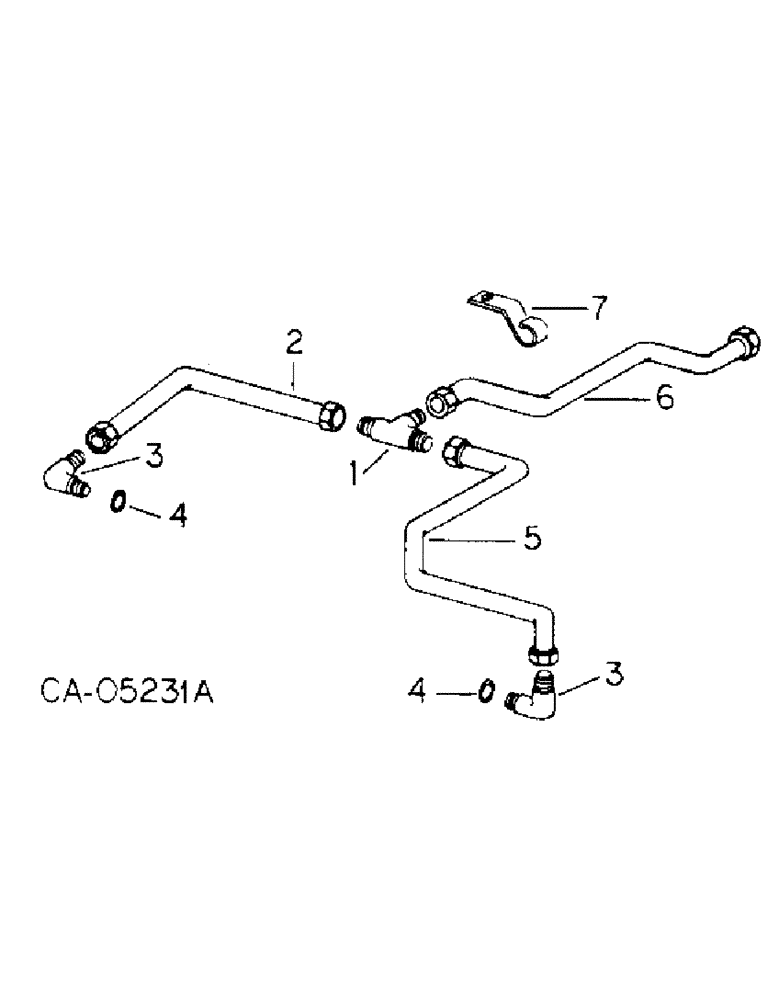

Запчасти Case IH 3488 (04-03) - BRAKES, MASTER BRAKE LUBRICATION (5.1) - BRAKES

1

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

brake orifice

1шт.

2

104774C2

TUBE

ASSY brake lube crossover

1шт.

3

71864C2

90 ELBOW

90 deg, reducer w/ orifice, 37 deg hyd flared tube, 5/8-3/8

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/8 OD tube

2шт.

5

120244C1

HYD TUBE

TUBE ASSY brake lube, right, tractor w/o differential lock

1шт.

5

120245C1

HYD TUBE

TUBE ASSY brake lube, right, tractor w/ differential lock

1шт.

120333C2

CONNECTOR, ELEC

CONNECTOR brake orifice tractor w/ differential lock

1шт.

6

120061C3

HYD TUBE,0.375" OD, 550.16, 225.81 mm Length

TUBE ASSY brake lube

1шт.

7

NOT USED THIS APPLICATION

1шт.
