Запчасти Case IH 3488 (04-02) - BRAKES, MASTER BRAKE CONTROLS (5.1) - BRAKES

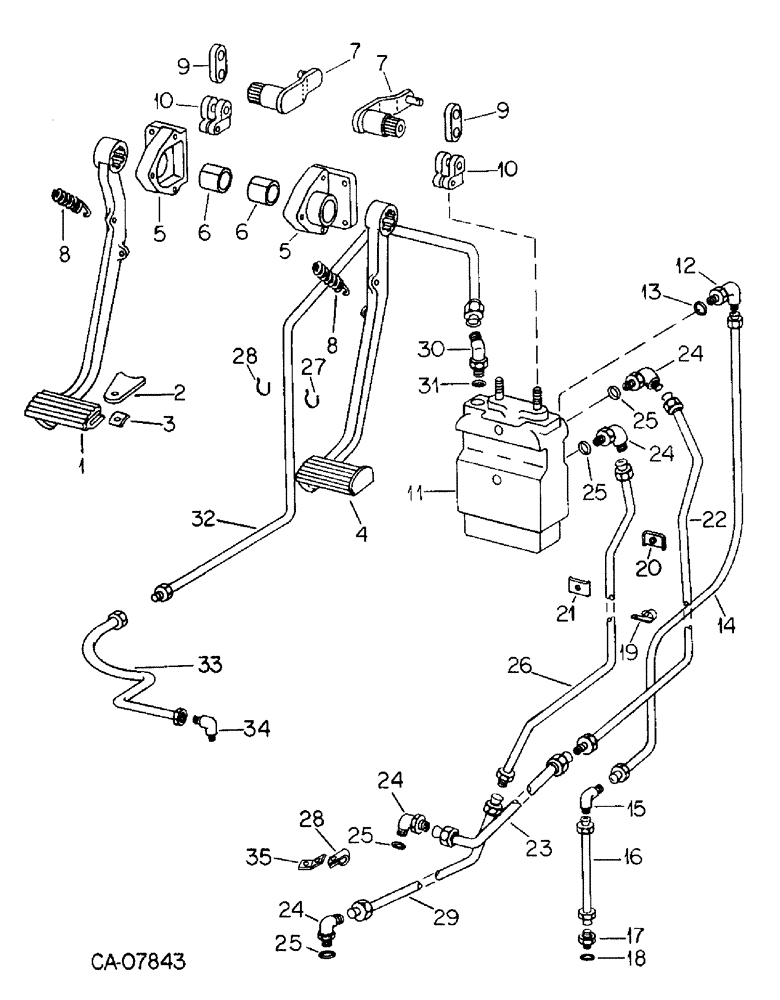

Схема запчастей Case IH 3488 - (04-02) - BRAKES, MASTER BRAKE CONTROLS (5.1) - BRAKES
35
16
25
21
10
29
7
20
33
2
4
22
25
8
34
6
24
19
26
9
13
32
9
8
12
5
14
6
24
7
11
31
27
5
25
25
30
23
24
17
3
10
24
28
18
28
15

Артикул

Название

Примечание

Количество

1

103953C1

PEDAL

brake, left

1шт.

26592R1

SCREW

set, 3/8 x 1-1/2 phc hd/pt, hdl/hs

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

2

120451C1

PLATE

brake pedal lock

1шт.

3

51293D

SPRING

brake pedal lock tension

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

4

103955C1

PEDAL

brake, right

1шт.

26592R1

SCREW

set, 3/8 x 1-1/2 phc hd/pt, hdl/hs

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

5

120175C91

HOUSING

brake pedal, with bushings

2шт.

6

120171C1

BUSHING

brake pedal pivot

2шт.

16073R1

BOLT, 5/16 x 2-3/8 pln type 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

181106

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 phc type 5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24497R1

WASHER

0.344 x 1.250 x 0.105 znd

2шт.

7

103956C2

LEVER

ASSY brake pedal and valve

2шт.

8

104783C1

SPRING

brake pedal return conduit, left, If req'd, Use 4.25 inches from roll marked 2643132R1

2шт.

9

384082R1

LINK

brake operating

2шт.

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN clevis, 1/2 x 1.688

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

0.531 x 1.062 x 0.074 pln

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

10

384083R2

YOKE

YOKE brake operating

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

1272218C91

VALVE

ASSY self bleeding power brake, For list of serviceable parts see power brake valve this group

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type

5шт.

20285H

WASHER

0.406 x 0.750 x 0.105 pln

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

104819C1

HYD TUBE

TUBE ASSY front brake pressure

1шт.

15

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION 90 deg. elbow, 3/8 C-Z hyd fld tube

1шт.

16

104818C1

HYD TUBE

TUBE ASSY rear brake pressure

1шт.

17

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP pressure pipe

2шт.

20

535306R1

CLAMP

ASSY front brake tube

2шт.

21

535307R1

CLAMP

front brake tube

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

104448C2

TUBE

ASSY front brake, left

1шт.

23

120075C2

HYD TUBE,0.375" OD, 916.94, 399.54 mm Length

TUBE ASSY rear brake, left

1шт.

24

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

3шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

3шт.

26

104446C2

TUBE

ASSY front brake, right

1шт.

27

120527

CLIP

CLAMP bare closed, 0.62 dia znp

1шт.

28

155850H1

CLAMP,3/8", 1/4" Bolt

bare med clo, 0.375 dia znp

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

29

104447C1

TUBE

ASSY rear brake, right

1шт.

30

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 45D

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

32

104478C3

HYD TUBE

TUBE ASSY front brake dump

1шт.

33

104479C1

PIPE

TUBE ASSY rear brake dump

1шт.

34

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

3/8-18 pipe thd

1шт.

35

120433C1

SUPPORT

tubing clip

1шт.
