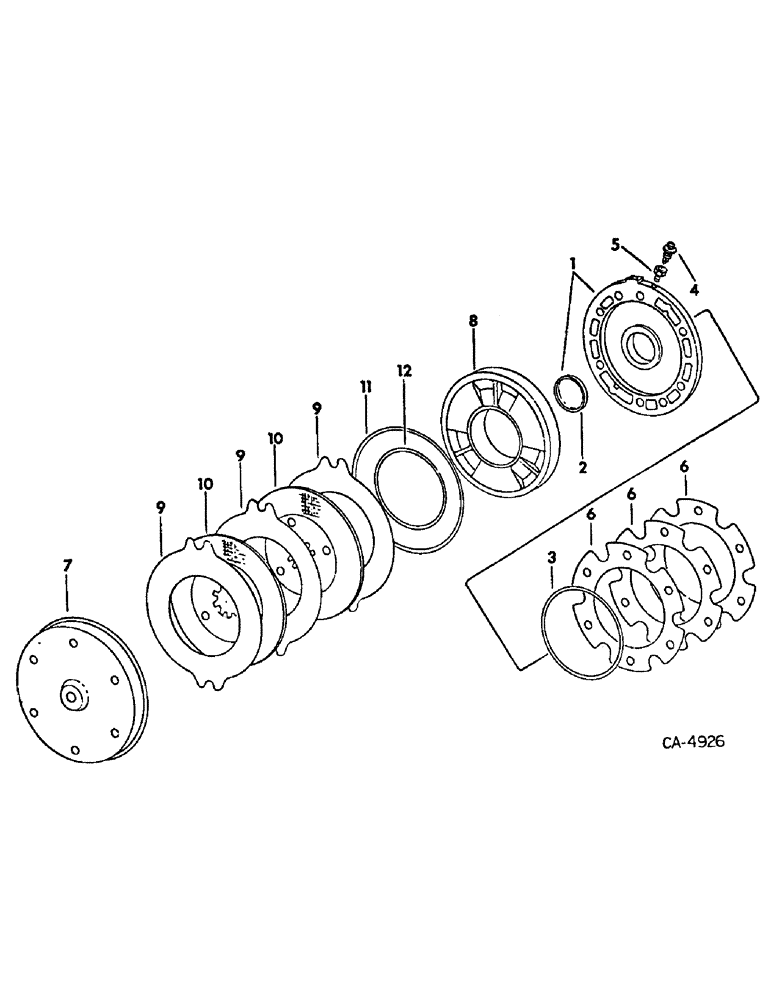

Запчасти Case IH 3488 (04-01) - BRAKES, MASTER BRAKES (5.1) - BRAKES

1

104658C91

HOUSING

BRAKE PISTON HOUSING ASSY

2шт.

2

104763C1

WASHER,56.39mm ID x 76.45mm OD x 0.69mm Thk

brake lub oil

2шт.

23896R1

DOWEL,5/8" x 3"

PIN dowel, 5/8 x 3.00 pln hdn

4шт.

3

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING brake piston housing

2шт.

4

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed, or

2шт.

4

306877R1

SCREW brake bleed

2шт.

5

397338R1

CONNECTOR, ELEC

CONNECTOR bleeder valve

2шт.

6

391816R1

SHIM

piston housing, 0.035 (Or as required)

2шт.

6

391817R1

SHIM

piston housing, 0.012 (Or as required)

4шт.

6

391818R1

SHIM

piston housing, 0.007 (Or as required)

6шт.

6

391819R1

SHIM

piston housing, 0.004 (Or as required)

1шт.

6

391820R1

SHIM

piston housing, 0.003 (Or as required)

1шт.

7

104654C2

HOUSING

brake

2шт.

26487R1

BOLT,Locking, 5/8"-11 x 4 1/2", G8

5/8 x 4-1/2 phc p/t type 8

8шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 pln type 5, Course Threads

4шт.

8

104655C1

PISTON

brake

2шт.

9

PLATE brake seperator, Not serviced seperately, Order service package 120235C93

1шт.

10

PLATE brake friction, Not serviced separately, Order service package 120235C93

1шт.

11

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8 piston, outer

2шт.

12

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/8 x 1/8 piston, inner

2шт.

474517C2

GASKET

TUBE gasket eliminator

1шт.

120235C93

PACKAGE

power brake friction plates, separators and o-ring seal service, two required per tractor, also order a tube of loctite, 474517C2

1шт.

NSS

NOT SOLD SEPARAT

PLATES friction

6шт.

NSS

NOT SOLD SEPARAT

PLATES seperator

7шт.

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING

1шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

1шт.

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

130979C1

SWITCH

1шт.

121814C1

RETAINER

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

399470R1

BOOT

INSULATOR

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.
