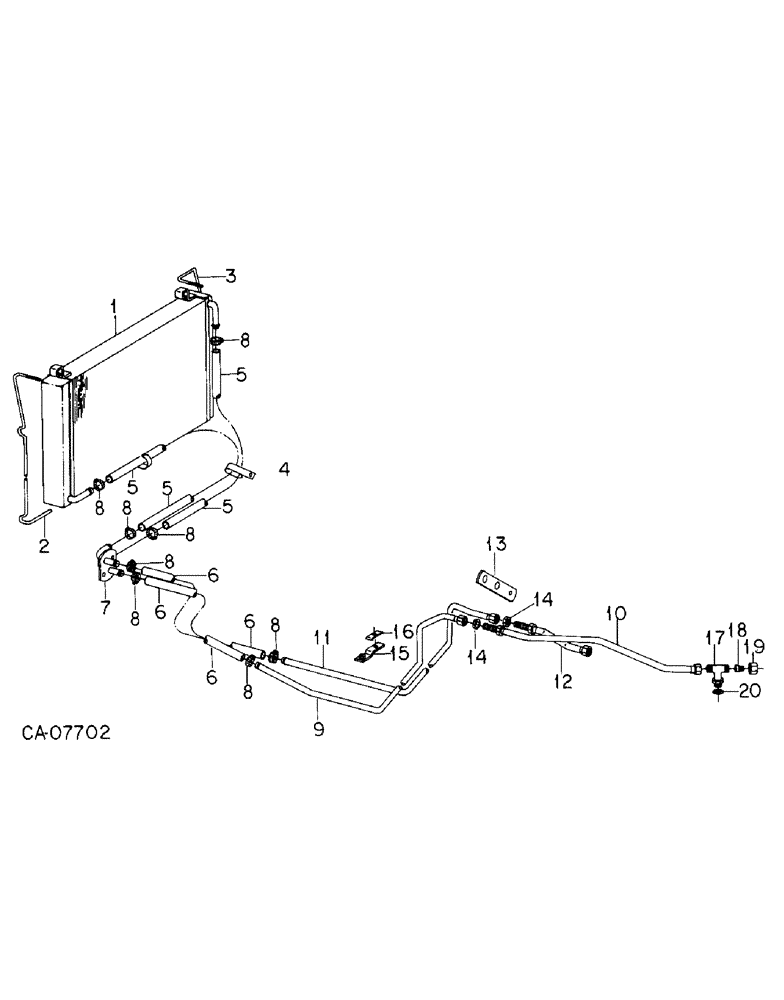

Запчасти Case IH 3488 (06-01) - COOLING, OIL COOLER Cooling

1

146411C2

COOLER

COOLER ASSY oil

1шт.

2

148995C1

BRACKET

SPARE PART BRACKET mtg, left

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 MM phc

2шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

3

148994C1

BRACKET

BRACKET mtg, right

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 MM phc

6шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

WASHER lock, 8 MM

2шт.

934900R1

WING NUT

NUT wing, M8 znp

2шт.

4

104773C3

CLAMP

CLIP hose

1шт.

615031R1

WASHER

WASHER, 0.375 x 0.875 x 0.064 pln

1шт.

5

HOSE inlet & outlet to elbow, Furnish 1054 MM from bulk roll marked 73200C1

2шт.

6

HOSE elbow to tube, Furnish 787 MM from bulk roll marked 73200C1

1шт.

7

130280C1

ELBOW

ELBOW ASSY

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 16, 8.8

2шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose

8шт.

9

1252759C1

TUBE

SPARE PART TUBE ASSY front inlet

1шт.

10

104463C1

HYD TUBE

TUBE ASSY rear inlet

1шт.

11

1252758C1

HYD TUBE

TUBE ASSY front outlet

1шт.

12

104475C1

TUBE

SPARE PART TUBE ASSY rear outlet

1шт.

13

104484C1

BAR

SPARE PART BAR tube support

1шт.

NLS

NO LONGER SERVICED

1шт.

14

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUTunion lock, 5/8 C-Z bulkhead

2шт.

15

120070C1

SUPPORT TUBE

STRAP ASSY tube

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

615031R1

WASHER

WASHER, 0.375 x 0.875 x 0.064 pln

1шт.

16

535307R1

CLAMP

CLAMP tube

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

17

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

TEE, 5/8 C-Z hyd fld tube adj

1шт.

18

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

FITTING tube redr, 5/8 x 3/8 C-Z hyd fld

1шт.

19

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 5/8 C-Z hyd fld type style B

1шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 5/8 OD tube class 6

1шт.
