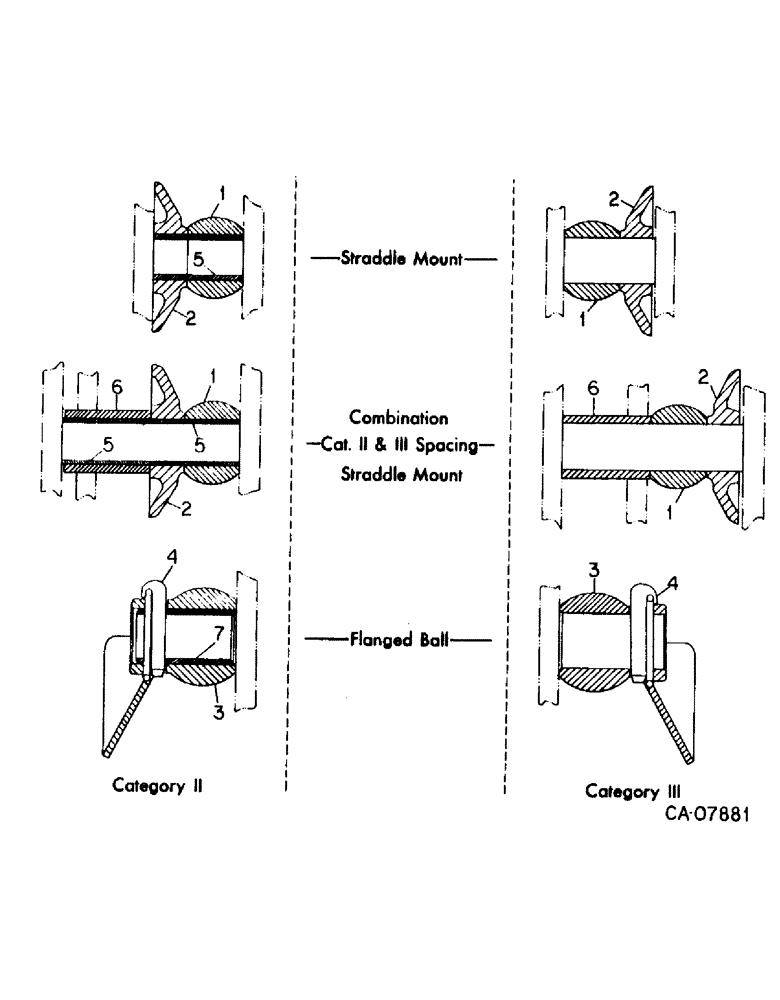

Запчасти Case IH 3488 (09-15) - FRAME, THREE POINT HITCH BALLS, CAT III (12) - FRAME

1

224783C1

BALL

plain, category III

2шт.

2

1263454C1

FLANGE

CONE guide

2шт.

3

224742C2

BALL

ASSY flange, category III

2шт.

4

224781C1

PIN,11.13mm OD

ASSY ball retainer

2шт.

5

1263456C1

SPACER

ball, category II/III bushing, For use w/ category II tools

4шт.

6

1252271C1

BUSHING

spacer, category III

2шт.

7

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

ball, category II/III bushing, For use w/ category II tools

2шт.

1252021C92

BALL

PARTS accessory, plain ball, category III, Consists of Ref. 1, 2, 5 and 6

1шт.

1252023C1

PARTS accessory, flanged ball, category III, Consists of Ref. 3, 4 and 7

1шт.
