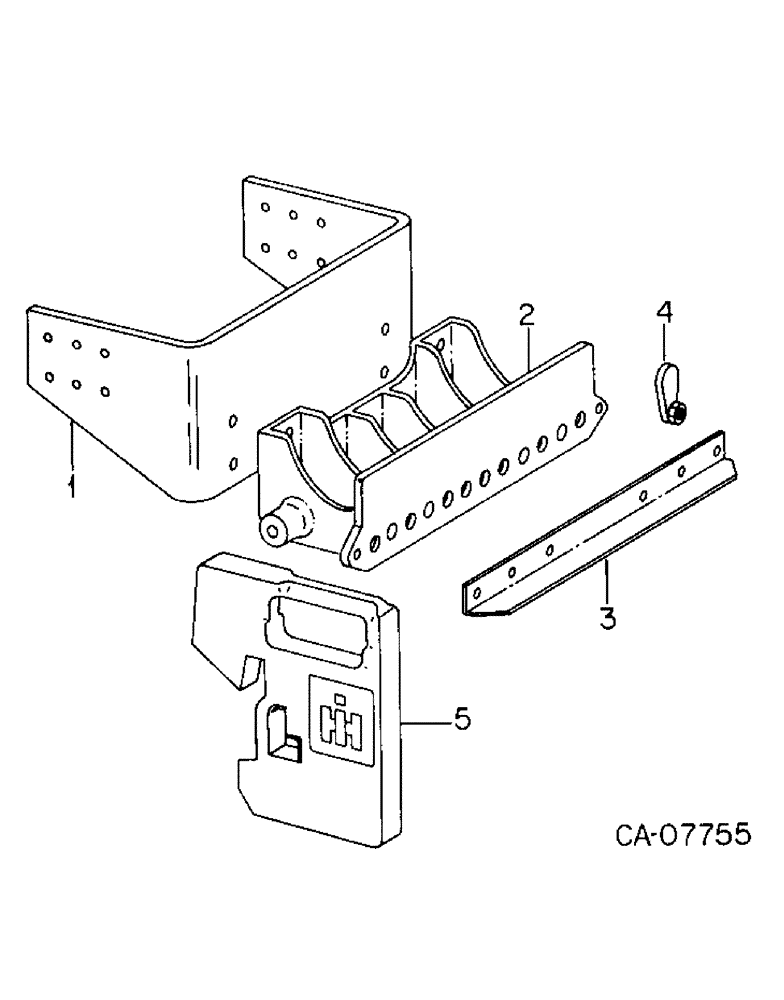

Запчасти Case IH 3488 (09-12) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

1

130235C1

ADAPTER

bracket

1шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

12шт.

934738R1

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

30178R1

WASHER,M17.5 x 30 x 4, HT

17.8 x 30 x 4 MM phc

24шт.

2

1280669C1

BRACKET

front weight, Replaces 120428C1 by also ordering washers 636946C1

4шт.

30555R1

BOLT,Hex, M20 x 75, 8.8

M20 x 75 MM class 8.8

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

2шт.

933815R1

LOCK WASHER,M20

WASHER lock, 20 MM

2шт.

30171R1

NUT,M20, Cl 10

M20 phc class 10

4шт.

636946R1

WASHER

0.81 x 2.0 x 0.25

4шт.

3

536043R1

BAR

weight retaining

1шт.

4

74202C1

CAM

locking

2шт.

930145R1

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

30178R1

WASHER,M17.5 x 30 x 4, HT

17.8 x 30 x 4 MM phc

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

5

WEIGHT 100 lb, Use as required, Weights serviced only as machine attatchment

1шт.
