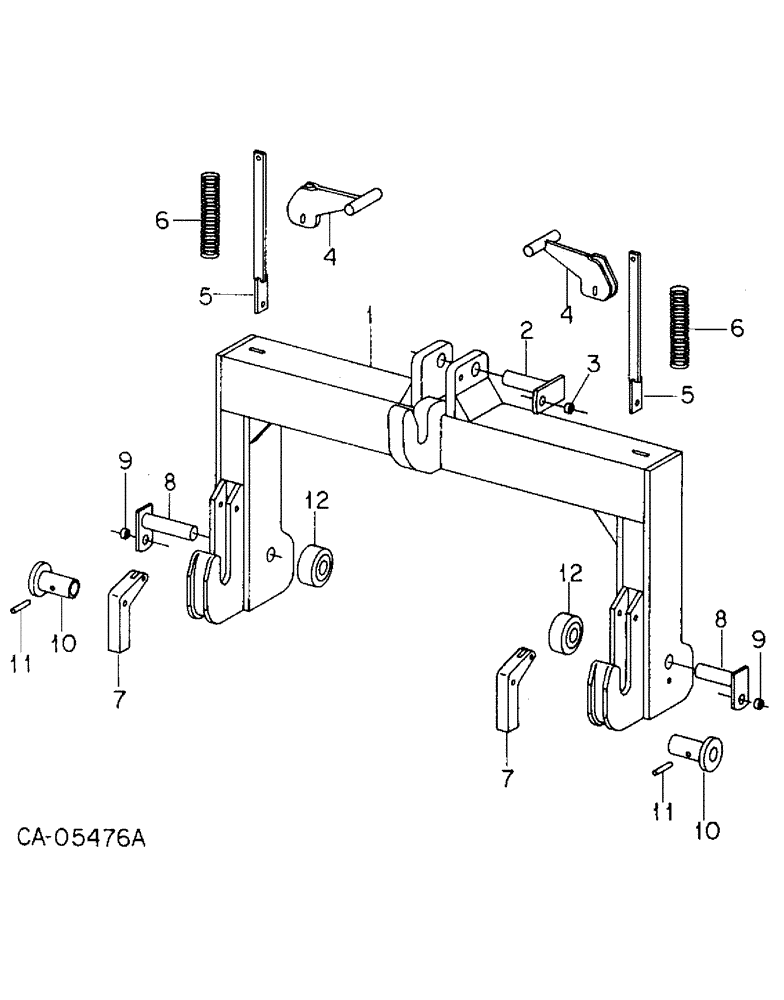

Запчасти Case IH 3488 (09-11) - FRAME, THREE POINT HITCH QUICK COPLER ATT., CATEGORY II (12) - FRAME

1255075C91

COUPLING

COUPLER ASSY quick, category II, Consists of Ref. 1 - 9, Also furnish (2) lower link hitch ball bushing 535448R1

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY

1шт.

2

64712C1

PIN

ASSY upper link

1шт.

3

64714C1

BUSHING

pin retainer

1шт.

495-11053

WASHER,1/2", SAE

0.531 x 1.062 x 0.074

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

1шт.

4

64715C1

HANDLE

latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN clevis, 5/16 x 1.062 pln

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

1266789C1

BAR

spring, Replaces 64716C1

2шт.

6

64717C1

SPRING

latch

2шт.

7

1266791C1

LUG

lock, Replaces 64718C1

2шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

28385R1

PIN, 1/2 x 2-1/4 hvy pln cld spr

2шт.

8

1255079C1

PIN

lower link

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

9

64714C1

BUSHING

pin retainer

2шт.

495-11053

WASHER,1/2", SAE

0.531 x 1.062 x 0.074

2шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

2шт.

10

401232R1

ADAPTER

implement lower hitch pin

2шт.

11

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

12

NOT USED IN THIS APPLICATION

1шт.

535448R1

BUSHING

lower link hitch ball

1шт.
