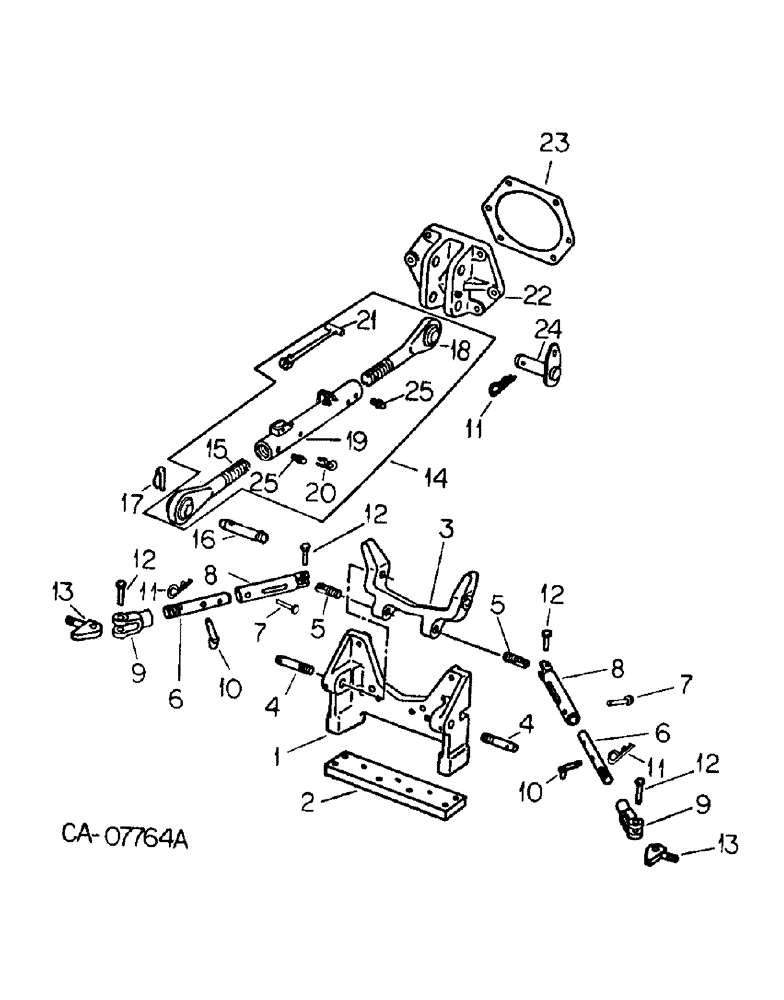

Запчасти Case IH 3488 (09-08) - FRAME, THREE POINT HITCH, CAT II, UPPER LINK AND LATERAL LIMITER (12) - FRAME

1

72392C1

SPROCKET ASSY.

SUPPORT drawbar

1шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

right crank arm stop, 5/8-NF x 1-3/4 pln type 5, Fine Thread

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

Right crank arm stop Jam, 5/8"-18, G5

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

2

73157C1

LARGE PLATE

PLATE drawbar support

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 pln type 5

4шт.

3

382386R2

ARM

stabilizer control

1шт.

4

383362R2

AXLE PIN,25.4mm OD x 106.68mm L

SHAFT stabilizer control arm

2шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-NF pln slt type 5

2шт.

119197

PIN cotter, 3/8 x 3-1/2 pln

2шт.

5

382390R1

BOLT (SPREADER),1 1/4" - 7 x 2.38"

EYEBOLT front stabilizer

2шт.

6

386198R1

STUD

lateral limiter

2шт.

7

527347R1

HEAD

PIN, 1/2 x 2-104 headed

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

0.531 x 1.062 x 0.074 pln

2шт.

364436R1

PIN,3/16" x 1", Coiled

2шт.

8

406243R2

UPPER LINK

YOKE lateral limiter

2шт.

9

406244R2

YOKE

lateral limiter rear

2шт.

10

383363R11

AXLE PIN

PIN ASSY lockout

2шт.

11

520175R1

CLIP

PIN cotter, quick attachable

3шт.

12

384852R1

AXLE PIN

PIN stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

13

382397R1

BOLT,3/4" - 16 x 2", Drilled

stabilizer, Replaces 1252048C1

2шт.

13

382397R1

BOLT,3/4" - 16 x 2", Drilled

EYEBOLT rear stabilizer, Use with telescoping lower link

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF pln slt type 5

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

14

108632C93

TURNBUCKLE

ASSY upper link

1шт.

15

395030R1

SCREW

ASSY left thread, Or

1шт.

15

395031R1

SCREW

ASSY left thread, Or

1шт.

15

395968R2

SCREW

ASSY left thread

1шт.

16

374132R1

PIN

upper link implement

1шт.

17

517758R91

SPLIT PIN/SAFETY PIN

PIN implement retaining

1шт.

18

395033R1

SCREW

ASSY right thread, Or

1шт.

18

395034R1

SCREW

ASSY right thread, Or

1шт.

18

395970R2

BOLT (SPREADER),Cheese, M5 x 8mm, Cl 5.8

SCREW ASSY right thread

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

19

404633R2

TURNBUCKLE

upper link

1шт.

20

517843R1

COTTER PIN

PIN cotter, quick attatchable

1шт.

21

108592C2

HANDLE

upper link turnbuckle

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1.750 pln hd type 1

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

22

382212R41

SUPPORT ASSY.

BRACKET ASSY upper link

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5шт.

27578R1

12 PT SCREW,Flg, 5/8"-11 x 2"

SCREW, 5/8 x 2.000 phc ast 12pt flg

1шт.

23

383330R1

GASKET

draft control adj opening cover

1шт.

24

382210R11

PIN

ASSY upper link bracket

1шт.

25

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING lube, 1/4 hole

2шт.
