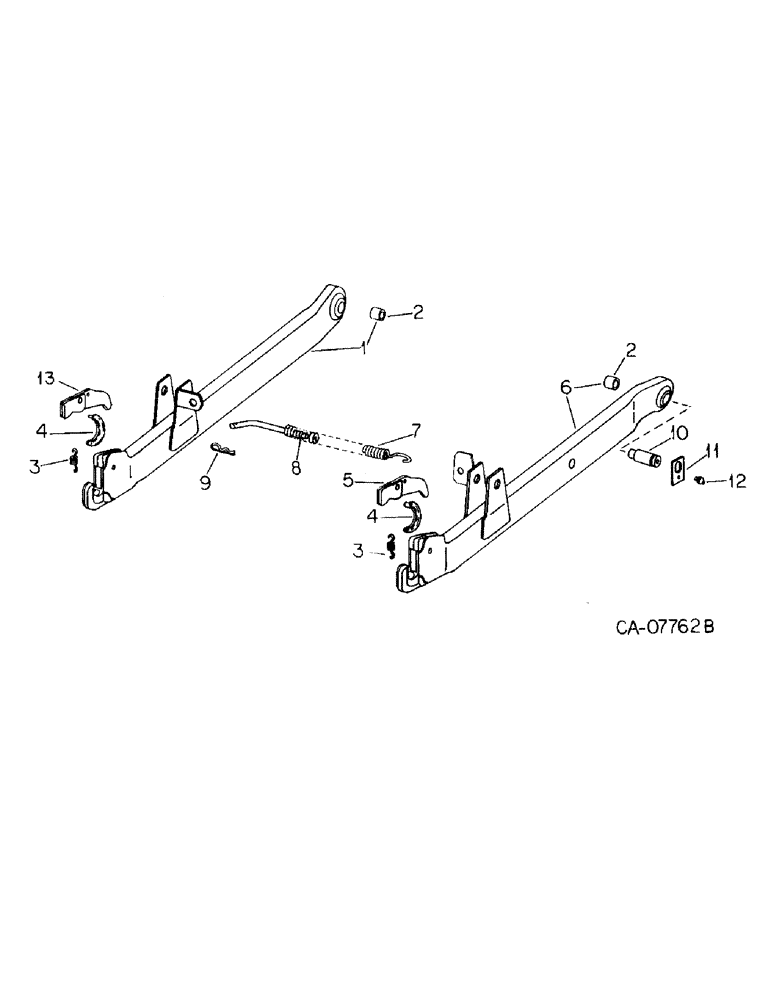

Запчасти Case IH 3488 (09-07) - FRAME, THREE POINT HITCH, CAT II, CLAW LOWER LINKS (12) - FRAME

1

1252030C92

LINK

ASSY lower, left

1шт.

2

71807C1

BUSHING,25.5mm ID x 32mm OD x 41.4mm L

link ball, front lower

2шт.

30758R1

PIN,M16 x 40, Coiled

16 x 40 MM znp cld spr

2шт.

30372R1

PIN,M6 x 40, Coiled

6 x 40 MM pln cld-spr

2шт.

3

1263338C1

SPRING

claw latch, Replaces 224652C1

2шт.

4

224653C1

LINK

claw latch

2шт.

5

1266998C1

LATCH

claw, right, Replaces 1252039C2

1шт.

6

1252031C93

LINK

ASSY lower, right

1шт.

7

1252040C91

SPRING

ASSY spacer

1шт.

8

79936C1

PLUG

1шт.

30953R1

LOCK PIN,M5 x 24, Slotted

PIN split, No. 5 x 24 MM pln

1шт.

9

591107R1

COTTER PIN

cotter, quick attachable

1шт.

10

406685R1

PIN,25.4mm OD x 101.6mm L

lower link

2шт.

11

406687R1

RETAINER

pin

1шт.

179882

PIN

1/2 x 1-1/8 pln type 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

13

1266904C1

LEVER

LATCH claw, left

1шт.
