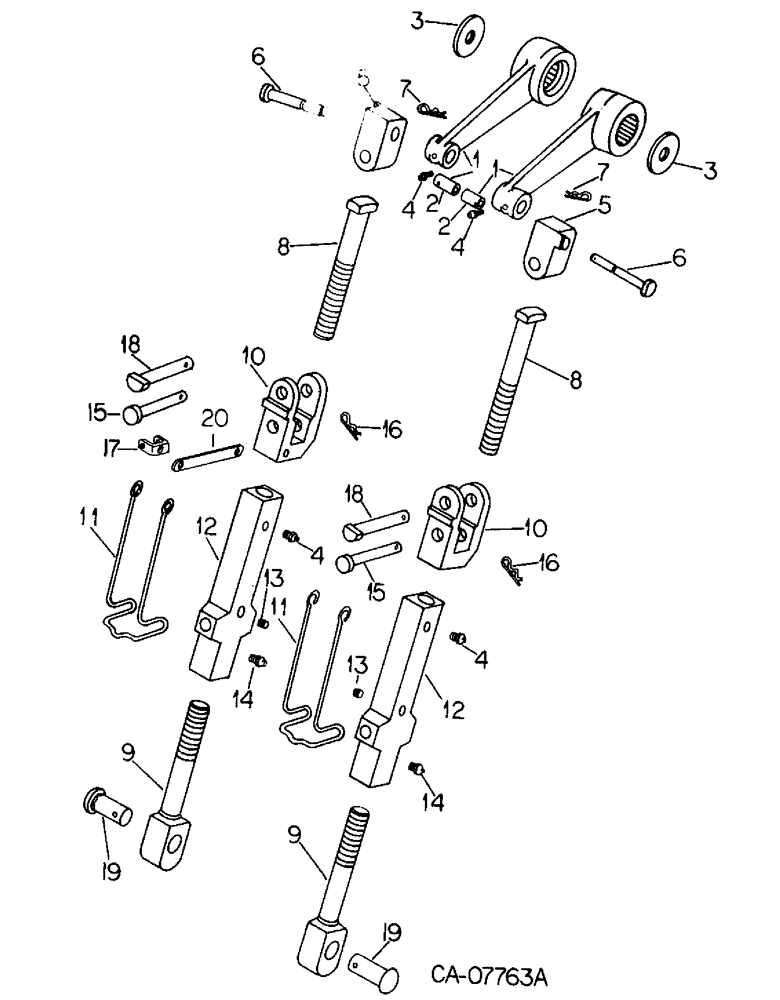

Запчасти Case IH 3488 (09-04) - FRAME, THREE POINT HITCH, CAT II, LIFT LINK ASSYS (12) - FRAME

1

382156R11

ARM

ASSY rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING lube, 1/4 hole

4шт.

5

71434C1

TRUNNION

SWIVEL

2шт.

6

108603C1

AXLE PIN

PIN leveling pivot

2шт.

Q3482

WASHER

1.156 x 1.750 x 0.105 pln

2шт.

7

520175R1

CLIP

PIN cotter, quick attatchable

2шт.

8

108584C1

ROD

upper leveling

2шт.

9

108583C1

ROD

lower leveling

2шт.

10

108585C1

YOKE

lift link

2шт.

11

123464C1

CLAMP

turnbuckle lock, bail

2шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 cad p/t type 5

1шт.

12

72877C1

TURNBUCKLE

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

13

444691

PLUG

auto pipe, 1/4-18 pln hex/skt

2шт.

14

273349

FITTING

lube, 1/4 ptf x/ short

2шт.

15

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

2шт.

16

480523R1

HAIR PIN COTTER

quick attachable

2шт.

17

1252260C1

BRACKET

spring assy storage, Not required w/ telescoping lower link

1шт.

18

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

19

109088C3

CARRIAGE BOLT

PIN square neck, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

20

1263344C1

BAR

spring storage bracket

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 cad p/t type 5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

380579R91

BUSHING

PARTS accessroy, bushing and pin adapter, For use w/ category I tools and implements when mounted on a category II three point hitch, Consists of

1шт.

380580R91

PIN

1шт.

NSS

NOT SOLD SEPARAT

PIN

1шт.

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

380581R1

BUSHING

1шт.

380582R1

BUSHING

1шт.

380583R1

BUSHING

2шт.

380584R1

BUSHING

2шт.

11484R

BUSHING

SPACER

2шт.
