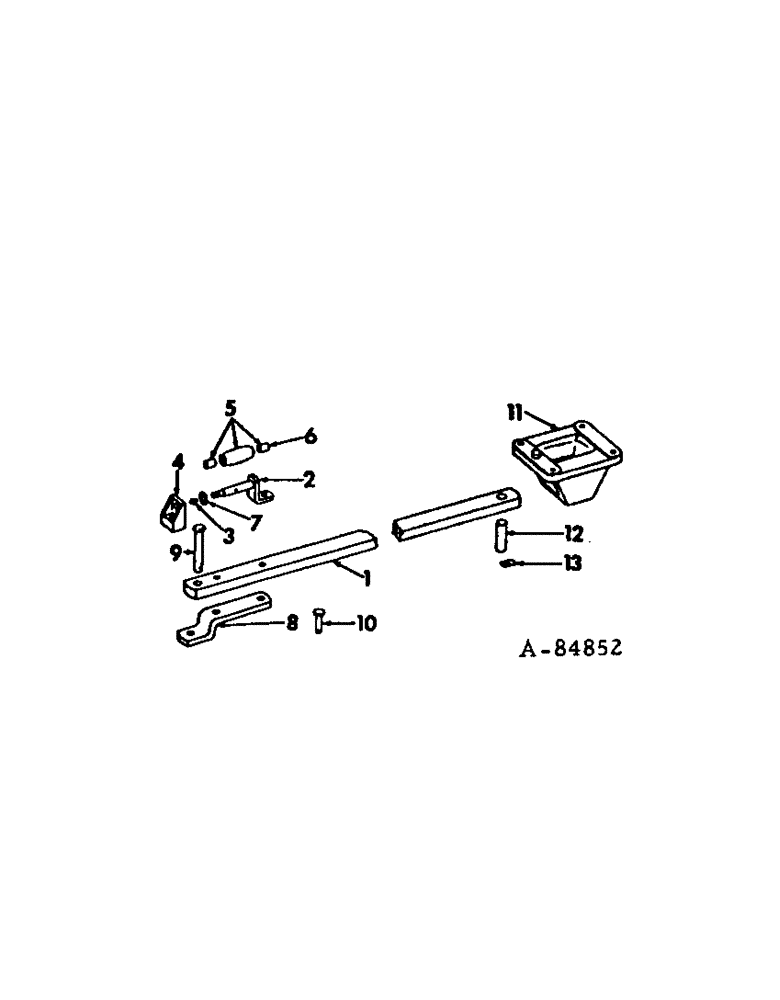

Запчасти Case IH 3488 (09-02[A]) - FRAME, HEAVY DUTY SWINGING DRAWBAR PART OF FIXED NON-ADJUSTABLE DRAWBAR ATT (12) - FRAME

1

108510C1

BAR

DRAWBAR swinging

1шт.

2

391873R11

SHAFT

ASSY swinging drawbar roller nut, 3/4 pln type 5

2шт.

220081

NUT

3/4 pln type 5

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4 x 3-3/4 pln type 5

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lube, 1/8-27 str

1шт.

4

391889R1

SUPPORT ASSY.

SUPPORT rear swinging drawbar shaft

1шт.

17269R1

SCREW,Hex, 3/4" - 10 x 6 1/4", Gr 5

BOLT, 3/4 x 6-1/4 pln type 5

1шт.

5

400299R11

ROLLER

ASSY swinging drawbar

1шт.

6

391869R1

BUSHING

swinging drawbar roller

2шт.

7

391870R1

WASHER

swinging drawbar roller shaft

2шт.

8

400297R1

SUPPORT

BRACKET swinging drawbar guide

1шт.

368514R1

SPACER

bracket

1шт.

9

530149R1

PIN

ASSY drawbar clevis, Or

1шт.

9

400300R1

CLEVIS PIN

PIN ASSY drawbar clevis

1шт.

520175R11

AXLE PIN

PIN ASSY cotter, quick attachable

1шт.

10

P14608

AXLE PIN

PIN drawbar roller stop, 3/4 x 2-3/4 headed

2шт.

520175R1

CLIP

PIN cotter, quick attachable

2шт.

11

SUPPORT ASSY swinging drawbar pivot, Refer to rear frame and covers, group 7

1шт.

12

108505C1

PIN

drawbar

1шт.

13

67828C1

RETAINER

pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
