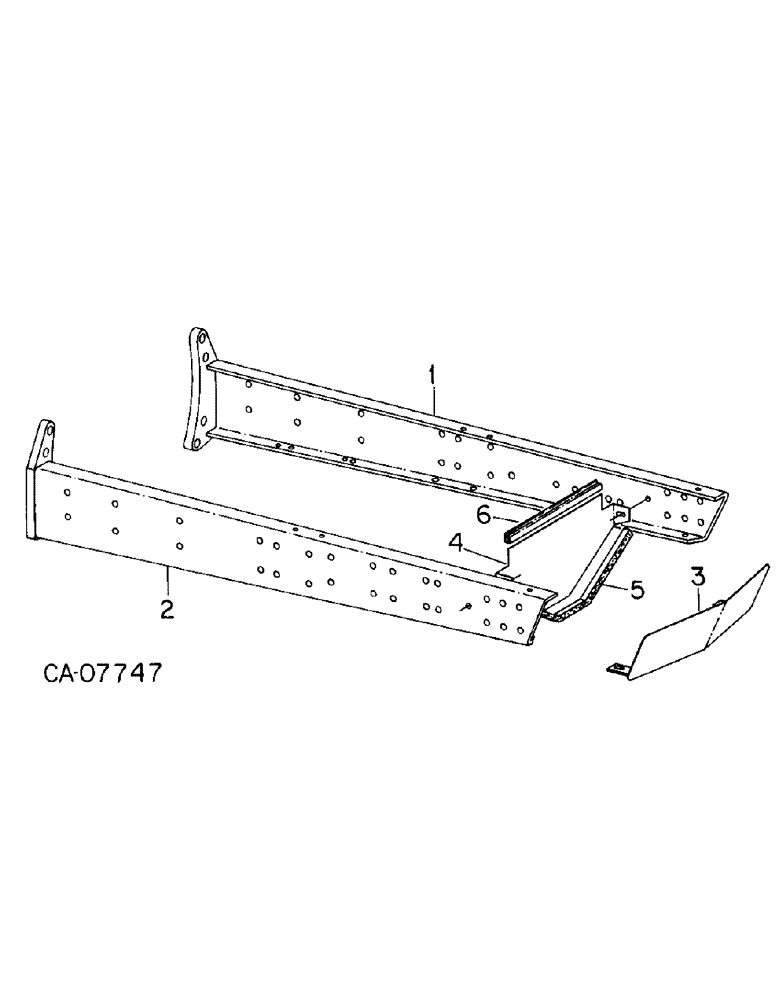

Запчасти Case IH 3488 (09-01) - FRAME, FRONT FRAME CHANNELS (12) - FRAME

1

130247C2

CHANNEL ASSY left

1шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 pln type 5

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4 x 3.500 pln ast 12 pt flg

1шт.

2

130248C2

CHANNEL ASSY right

1шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 pln type 5

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4 x 3.500 pln ast 12 pt flg

1шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 pln type 5

4шт.

3

130567C1

COVER

ASSY front channel

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

933965R1

LOCK WASHER,M10

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

4

1253046C2

COVER

bolster front

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

933965R1

LOCK WASHER,M10

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

5

GASKET foam, Furnish 600 MM from 4 ft. length marked 73220C1

1шт.

6

1253121C1

SEAL

front bolster cover

1шт.
