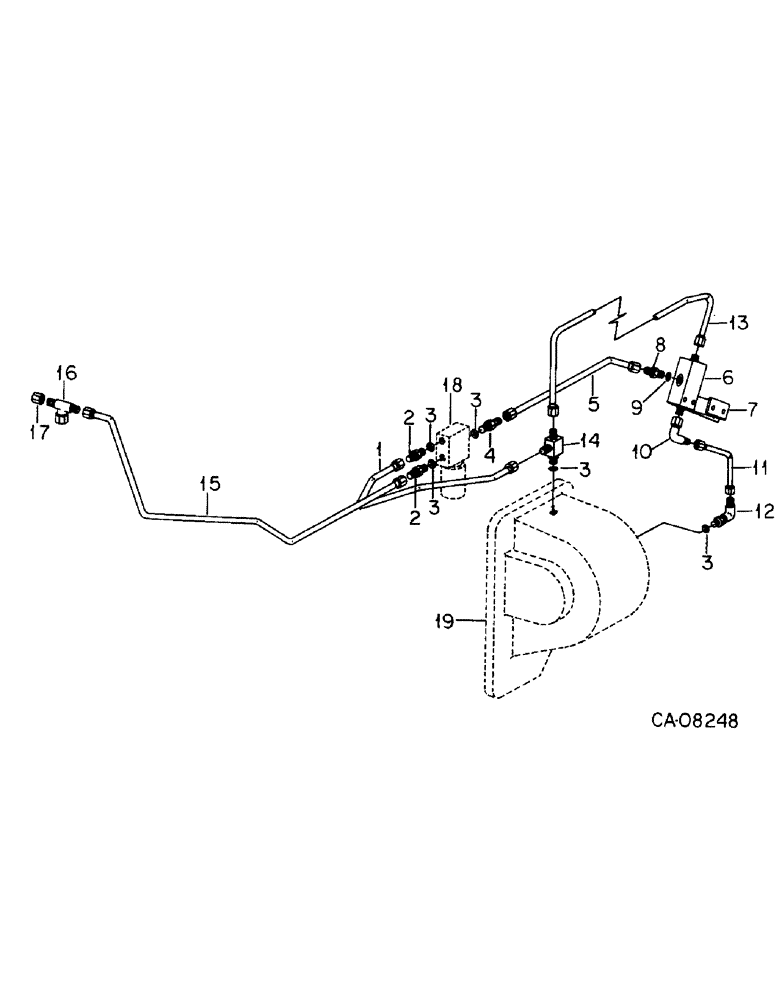

Запчасти Case IH 3488 (10-40) - HYDRAULICS, HYDRAULIC ALL WHEEL DRIVE CONTROLS, FOR TRACTORS W/ALL WHEEL DRIVE W/2-PIECE DRIVE SHAFT (07) - HYDRAULICS

1

1264595C1

HYD TUBE

TUBE ASSY solenoid valve dump

1шт.

2

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

5шт.

4

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

5

1264677C1

HYD TUBE,0.25" OD, 331.953 mm Length

TUBE ASSY solenoid valve to reducing

1шт.

6

VALVE ASSY pressure reducing, Refer to pressure reducing valve, this group for components

1шт.

7

104592C2

SUPPORT

reducing valve

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

8

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

10

9410252

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 deg swivel, 1/4 C-Z hyd fld

1шт.

11

1264679C1

HYD TUBE

TUBE ASSY reducing valve to gear box

1шт.

12

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

90 deg, C-Z hyd fld adj 3/8 to 1/4

1шт.

13

1264678C1

HYD TUBE

TUBE ASSY reducing valve dump

1шт.

14

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

3/8 C-Z hyd fld tube adj

1шт.

15

1264676C1

HYD TUBE

TUBE ASSY solenoid valve supply

1шт.

16

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

swivel, 3/8 C-Z hyd fld tube

1шт.

17

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube, For tractors equipped w/ vertical acting seat

1шт.

18

VALVE ASSY block and solenoid, Refer to block and solenoid valve, this group for components

1шт.

19

HOUSING transfer case, Refer to transfer case listing, group 7

1шт.
