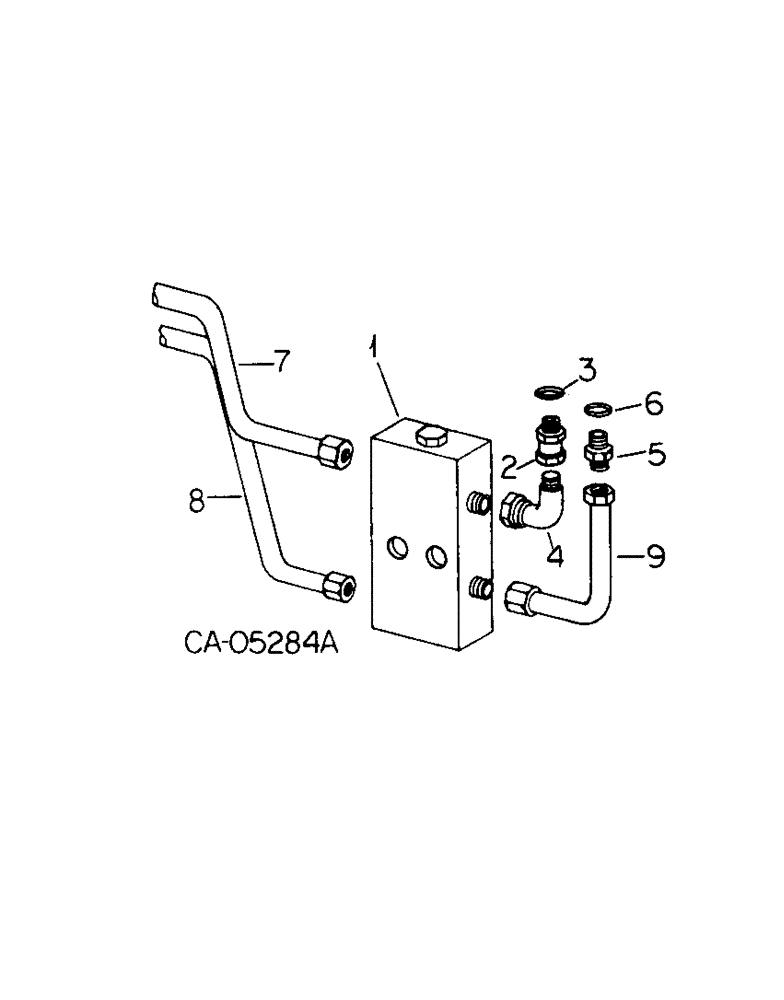

Запчасти Case IH 3488 (10-39[A]) - HYDRAULICS, ALTERNATING CHECK VALVE CONNECTIONS (07) - HYDRAULICS

1

142864C95

VALVE

ASSY alternating check

1шт.

2

66895C1

FITTING

COUPLER check valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

127957C1

HYD TUBE

TUBE ASSY 2nd valve raise

1шт.

7

133333C1

PIPE

TUBE ASSY 3rd valve raise

1шт.

8

127958C1

HYD TUBE

TUBE ASSY 2nd valve drop

1шт.

8

128013C1

HYD TUBE

TUBE ASSY 3rd valve drop

1шт.

9

127956C1

HYD TUBE

TUBE ASSY check, Serial Range: valve-auxiliary

1шт.
