Запчасти Case IH 3488 (10-35) - HYDRAULICS, FEMALE COUPLER, ISO (07) - HYDRAULICS

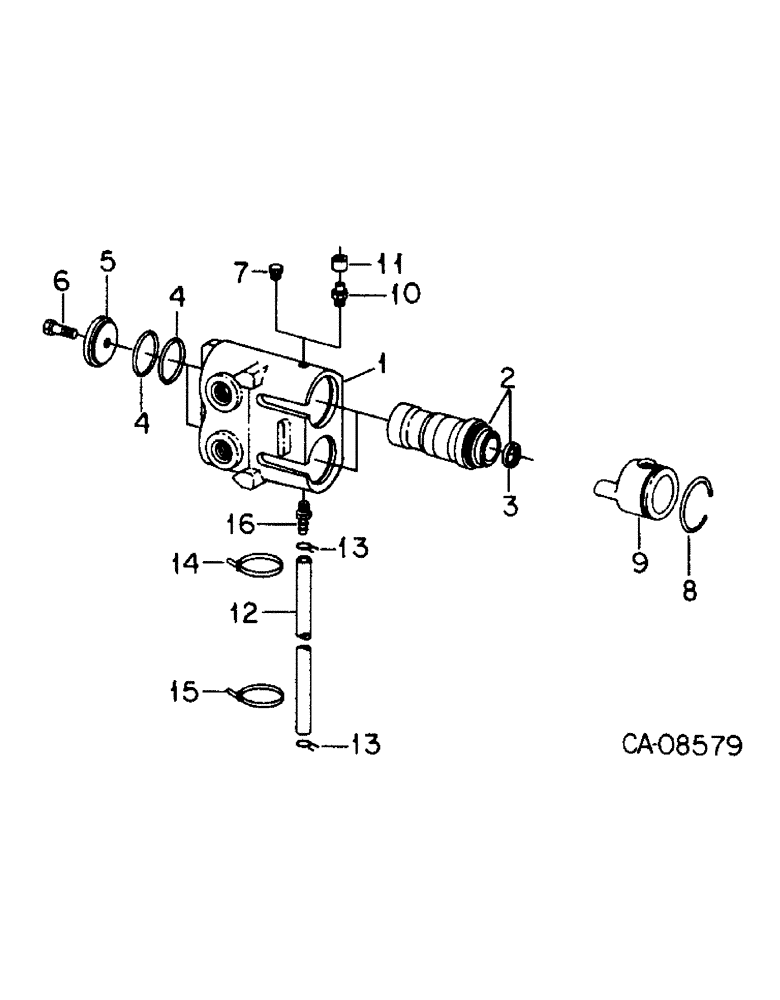

Схема запчастей Case IH 3488 - (10-35) - HYDRAULICS, FEMALE COUPLER, ISO (07) - HYDRAULICS
8
13
5
11
14
4
7
1
9
10
4
16
13
3
15
6
2
12

Артикул

Название

Примечание

Количество

1272192C91

COUPLING

COUPLER ASSY female, ISO, Includes Ref. 1 - 6

1шт.

1

1272470C1

VALVE BODY

BODY coupler

1шт.

2

1272489C91

ELEMENT

cartridge, Includes Ref. 3

2шт.

3

1282217C1

SEALING RING

RING sealing

2шт.

4

25173R1

O-RING,-130, 90 Duro, 1.612" ID x .103" Thk

1-5/8 x 1-13/16 class 6

4шт.

5

1272490C1

WASHER

WASHER cartridge retaining

2шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

7

FOR444613

PLUG

auto pipe, 1/8-27 pln h/hd

1шт.

8

1272197C1

RING, SNAP

RING retaining

2шт.

9

1272196C1

CAP

coupler dust

2шт.

10

1272765C1

FITTING,1/8" - 27 NPT

coupler drain

1шт.

11

1272764C1

SEAL

SEAL coupler drain

1шт.

12

1272488C1

HYDRAULIC HOSE,6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

Coupler drain 6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

1шт.

13

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP spring wire hose, No. type E

1шт.

14

291207C1

CLAMP

STRAP hose

1шт.

15

289862C1

CABLE TIE,3/16" x 7"

STRAP hose

1шт.

16

1282227C1

FITTING

drain hose

1шт.

1282456C1

KIT

coupler identification product graphic

1шт.

Выбрано товаров: 18
