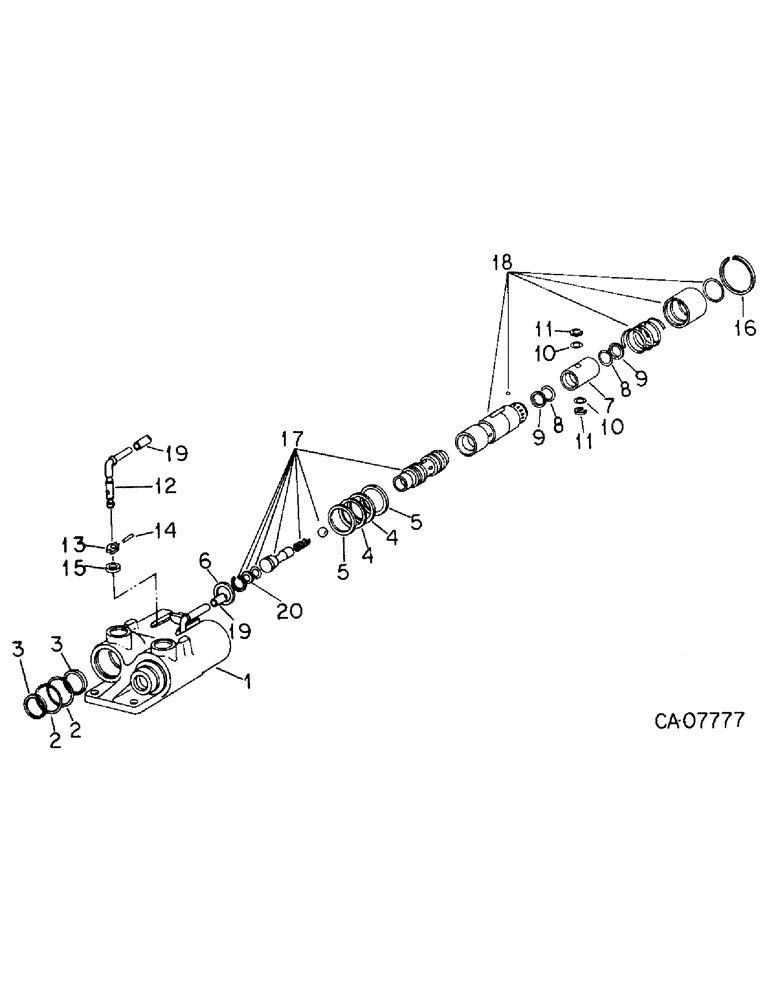

Запчасти Case IH 3488 (10-34) - HYDRAULICS, FEMALE COUPLER, IH (07) - HYDRAULICS

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY female

1шт.

1

544788R2

BODY

coupler

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING lube, 1/4 hole

2шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back up

4шт.

6

57071C1

RING

retaining, check body outer

2шт.

7

76931C1

SLEEVE

female body, small

2шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/8 x 1/2 x 1/16

4шт.

9

544799R1

WASHER

back up

4шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

1шт.

11

76932C1

WASHER

back up

4шт.

12

142371C1

HANDLE

ASSY valve

2шт.

13

544804R1

CAM

check valve

2шт.

14

544805R1

PIN

cam retainer

2шт.

15

76935C1

SPACER

cam check valve shaft

2шт.

16

537468R1

SNAP RING,#193, 2.081", Int

RING retaining

2шт.

17

549158R1

VALVE

ASSY check

2шт.

18

549159R2

SLEEVE

ASSY female body

2шт.

19

139346C1

SLEEVE

valve handle, black, motor control coupler

2шт.

19

139347C1

SLEEVE

valve handle, yellow, 2nd auxiliary control coupler

2шт.

19

139348C1

SLEEVE

valve handle, blue, 3rd auxiliary control coupler

2шт.

19

139349C1

SLEEVE

valve handle, tan, 4th auxiliary control coupler

1шт.

20

544795R1

WASHER

back up

2шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

4шт.

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

4шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

4шт.

544789R2

SEAL

4шт.

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

4шт.

544799R1

WASHER

4шт.

544800R1

WASHER

4шт.

76932C1

WASHER

2шт.

399921C1

RING

2шт.

76936C91

PACKAGE

female coupler handle service, Consists of

1шт.

142371C1

HANDLE

1шт.

76931C1

SLEEVE

1шт.

76935C1

SPACER

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

76932C1

WASHER

1шт.
