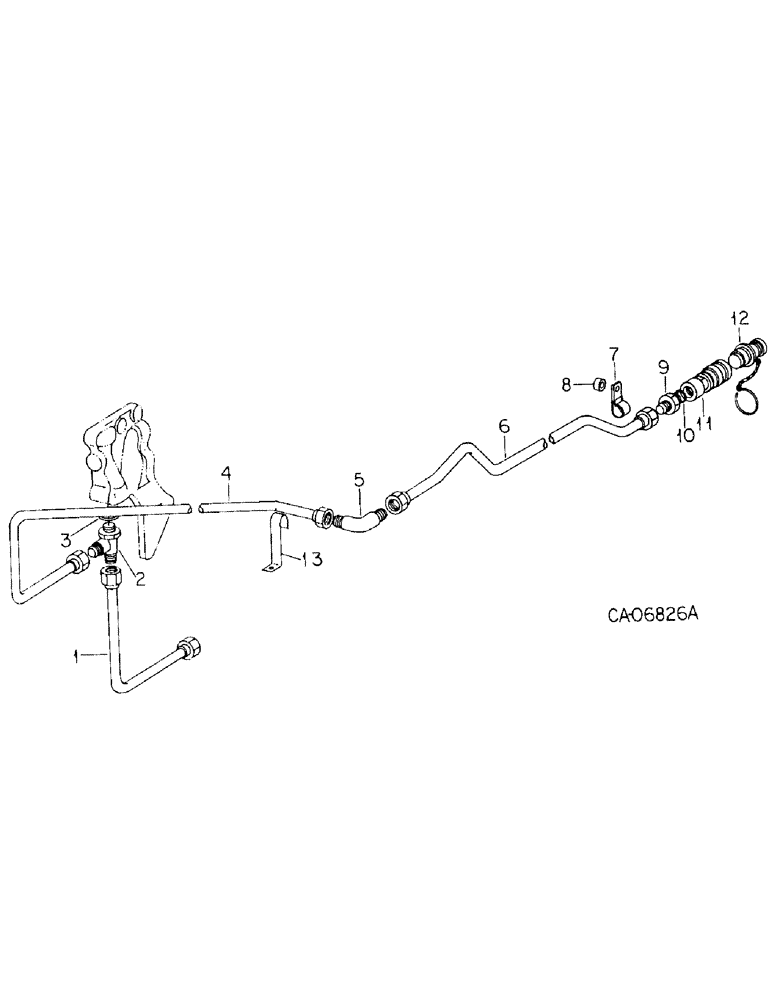

Запчасти Case IH 3488 (10-33) - HYDRAULICS, HYDRAULIC MOTOR RETURN (07) - HYDRAULICS

77878C91

KIT

PARTS accessory, hyd motor return

1шт.

1

139253C1

HYD TUBE

TUBE ASSY auxiliary valve return

1шт.

2

9411133

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

37 deg hyd flared tube

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

4

139225C1

HYD TUBE

TUBE ASSY motor return front

1шт.

5

9402945

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

90 deg, 37 deg hyd flared tube

1шт.

6

139224C1

HYD TUBE

TUBE ASSY motor return rear

1шт.

7

1259662C1

CLAMP

motor return

1шт.

8

1392541

SPACER clamp

1шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

BOLT, 5/8 x 1-7/8 type 5

1шт.

9

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 37 deg hyd flared tube short

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

11

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY hyd self sealing str thd, IH

1шт.

11

1272400C91

COUPLING

ASSY hyd self sealing str thd, ISO, Only servicable item is

1шт.

1282217C1

SEALING RING

RING sealing

1шт.

12

401757R11

PLUG

ASSY coupling dust

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

13

1259661C1

CLAMP

CLIP motor return

1шт.
