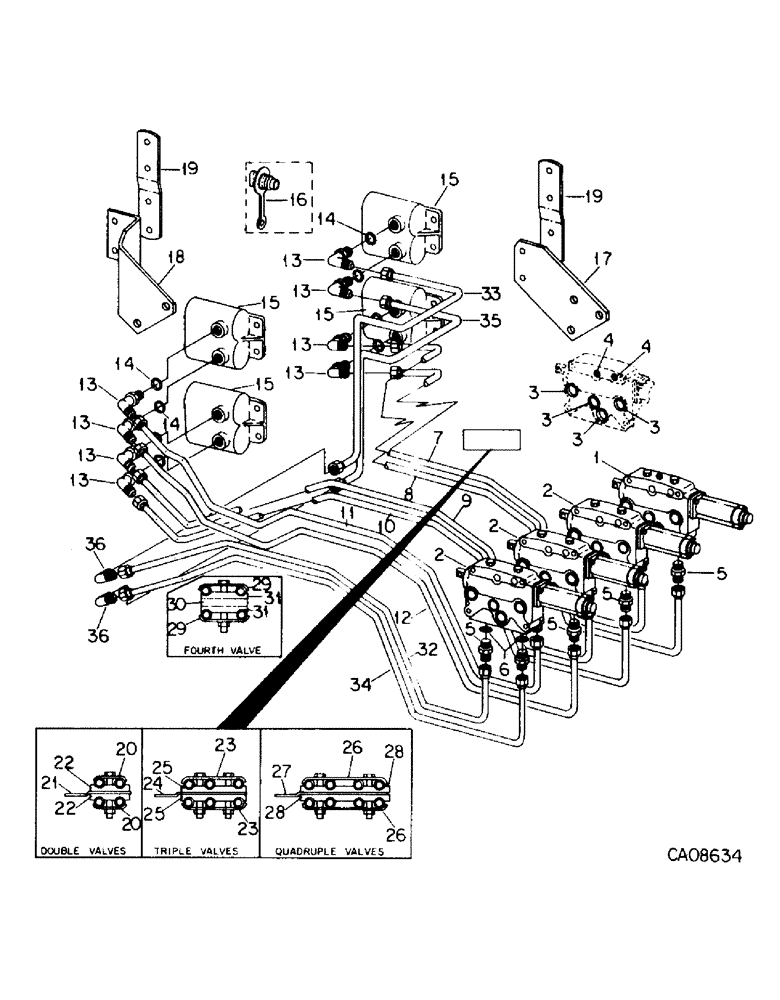

Запчасти Case IH 3488 (10-30) - HYDRAULICS, TWO, THREE AND FOUR AUXILIARY VALVE CONNECTIONS (07) - HYDRAULICS

1

123032C93

VALVE

ASSY close center motor control, For components, see list of parts under details of motor control valve

1шт.

20063R1

BOLT

3/8 x 5 pln type 8

2шт.

2

113888C93

VALVE

ASSY close center auxiliary control, (1) for double valves, (2) for triple valves, (3) for quadruple valves, For components see list of parts under details of auxiliary control valve

1шт.

20063R1

BOLT

3/8 x 5 pln type 8, For double valves

4шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

3/8 x 7 pln type 8, For triple valves

4шт.

20850R1

BOLT,Hex, 3/8"-16 x 8 1/2", G8

3/8 x 8-1/2 pln type 8, For quadruple valves

4шт.

3

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 class 6, 4 per valve

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 class 6, 2 per valve

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, 2 per valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 2 per valve

1шт.

7

128010C1

HYD TUBE

TUBE ASSY 1st valve raise

1шт.

8

128011C1

HYD TUBE

TUBE ASSY 1st valve drop

1шт.

9

127966C1

HYD TUBE

TUBE ASSY 2nd valve raise

1шт.

10

127967C1

HYD TUBE

TUBE ASSY 2nd valve drop

1шт.

11

133430C1

HYD TUBE

TUBE ASSY 3rd valve raise, For tractors w/ category II 3 pt. hitch

1шт.

11

127968C1

TUBE

ASSY 3rd valve raise, For tractors w/ category III 3 pt. hitch

1шт.

12

127969C1

HYD TUBE

TUBE ASSY 3rd valve drop

1шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 deg, 5/8 C-Z hyd fld adj, 2 per coupler

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 2 per coupler

1шт.

15

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY female, IH, (1) per valve, For components see list of parts under details of female coupler

1шт.

15

1272192C91

COUPLING

COUPLER ASSY female, ISO, (1) per valve, For components see list of parts under details of female coupler

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

1/2 x 7/8 pln type 5

4шт.

16

64757C1

PLUG

coupler dust, 2 per

1шт.

17

535033R3

BRACKET

coupler mtg, left

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

18

1259805C1

BRACKET

coupler mtg, right, Replaces 104317C1

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

19

120012C1

SUPPORT

BAR coupler mtg, (1) for triple valves, (2) for quadruple valves

1шт.

179882

PIN

1/2 x 1-1/8 pln type 5, 2 per bar

1шт.

20

486004R1

CLAMP

double auxiliary valve tubes

2шт.

21

104796C1

PLATE

double auxiliary valve tubes

1шт.

22

104799C1

STRIP

double auxiliary valve tube

2шт.

23

104795C1

CLAMP

triple auxiliary valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 phc p/t type 5

1шт.

24

104797C1

PLATE

triple auxiliary valve tubes

1шт.

25

104798C1

STRIP

triple auxiliary valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 phc p/t type 5

1шт.

26

120520C1

CLAMP

quadruple valve tubes

2шт.

27

120521C1

PLATE

quadruple valve tubes

1шт.

28

120522C1

STRIP

quadruple valve tubes

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 phc p/t type 5

1шт.

29

139113C1

CLAMP

4th auxiliary valve tubes

2шт.

30

139116C1

SPACER

4th auxiliary valve tubes

1шт.

31

139117C1

STRIP

4th auxiliary valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT lock, 3/8 phc p/t type 5

1шт.

32

1264793C1

TUBE

ASSY 4th valve raise, front, Replaces 139079C1 by also ordering tube assys 1264803C1, 1264794C1 and 1259804C1 and support 1259805C1

1шт.

33

1259803C1

HYD TUBE

TUBE ASSY 4th valve raise, rear, Replaces 139080C1 by also ordering tube assys 1264793C1, 1264794C1 and 1259804C1 and support 1259805C1

1шт.

34

1264794C1

TUBE

ASSY 4th valve drop, front, Replaces 139081C1 by also ordering tube assy 1264793C1, 1259803C1 and 1259804C1 and support 1259805C1

1шт.

35

1259804C1

HYD TUBE

TUBE ASSY 4th valve drop, rear, Replaces 139082C1 by also ordering tube assys 1264793C1, 1259803C1 and 1264794C1 and support 1259805C1

1шт.

36

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION 90 deg elbow, 5/8 C-Z hyd fld tube

2шт.
