Запчасти Case IH 3488 (10-22) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE, CAT. III (07) - HYDRAULICS

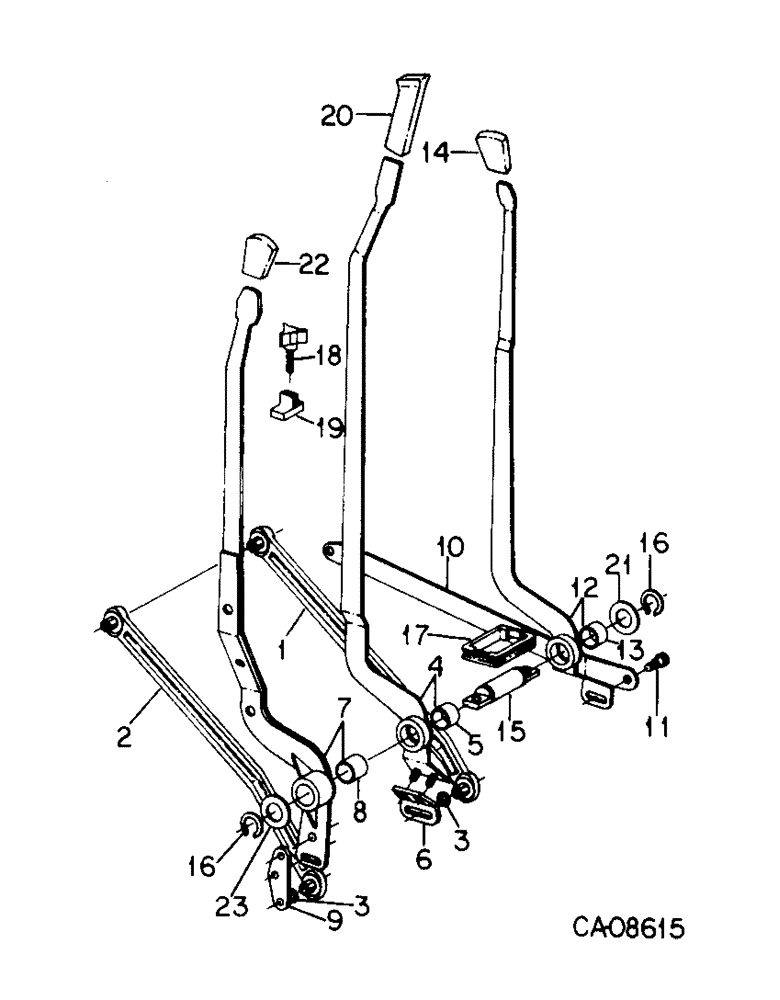

Схема запчастей Case IH 3488 - (10-22) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE, CAT. III (07) - HYDRAULICS
15
13
20
4
10
17
5
2
19
1
22
11
3
21
3
12
9
23
6
18
7
14
16
16
8

Артикул

Название

Примечание

Количество

1

120314C2

ROD

ASSY position control

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT lock, 5/16 phc p/t type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock, 5/16

1шт.

2

1258035C1

ROD

ASSY draft control

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT lock, 5/16 phc p/t type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock, 5/16

1шт.

3

532409R1

SPRING WASHER

serrated spring steel, handle slots

2шт.

4

1280102C91

HANDLE

ASSY position control, Uses grip 1259765C1

1шт.

5

144003C1

BUSHING

position control handle

1шт.

6

1253150C1

SUPPORT

1шт.

30986R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 h/flg

2шт.

7

1258033C1

HANDLE

ASSY draft control

1шт.

8

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

draft control handle

1шт.

9

1258076C1

SUPPORT

draft control

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 0.344 x 0.688 x 0.051

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT lock , 5/16 phc p/t type 5

2шт.

10

120498C2

LINK

raise rate connecting

1шт.

Q3817

WASHER

0.344 x 0.656 x 0.021 pln

1шт.

103363

PIN, SPLIT (COTTER)

PIN cotter, 1/16 x 1 pln

1шт.

21903R1

WASHER

0.531 x 0.750 x 0.054

1шт.

11

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder, 5/16

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock, 5/16

1шт.

12

1267381C91

HANDLE

ASSY raise rate control

1шт.

13

144003C1

BUSHING

raise rate control handle

1шт.

14

1267352C1

KNOB

raise rate control

1шт.

15

104532C2

SHAFT

control pivot

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

16

661652R1

SNAP RING,#75, Ext

2шт.

17

135877C1

SEAL

control

1шт.

18

1259821C1

KNOB

fluted

1шт.

20600R1

WASHER

0.281 x 0.750 x 0.105

1шт.

19

1259806C1

BAR

ASSY position control handle

1шт.

20

1259765C1

GRIP

position control handle, Use w/ handle 1280102C91

1шт.

20

1259760C1

BALL KNOB

KNOB position control handle, Use w/ handle 1253118C93

1шт.

21

16066R1

WASHER

0.781 x 1.500 x 0.054 pln, (1) required for inner position

1шт.

22

1259760C1

BALL KNOB

KNOB draft control handle

1шт.

23

16066R1

WASHER

0.781 x 1.500 x 0.054 pln, as required for outer position

1шт.

23

21018R1

WASHER

0.781 x 1.500 x 0.027 pln, as required for outer position

1шт.

Выбрано товаров: 42
