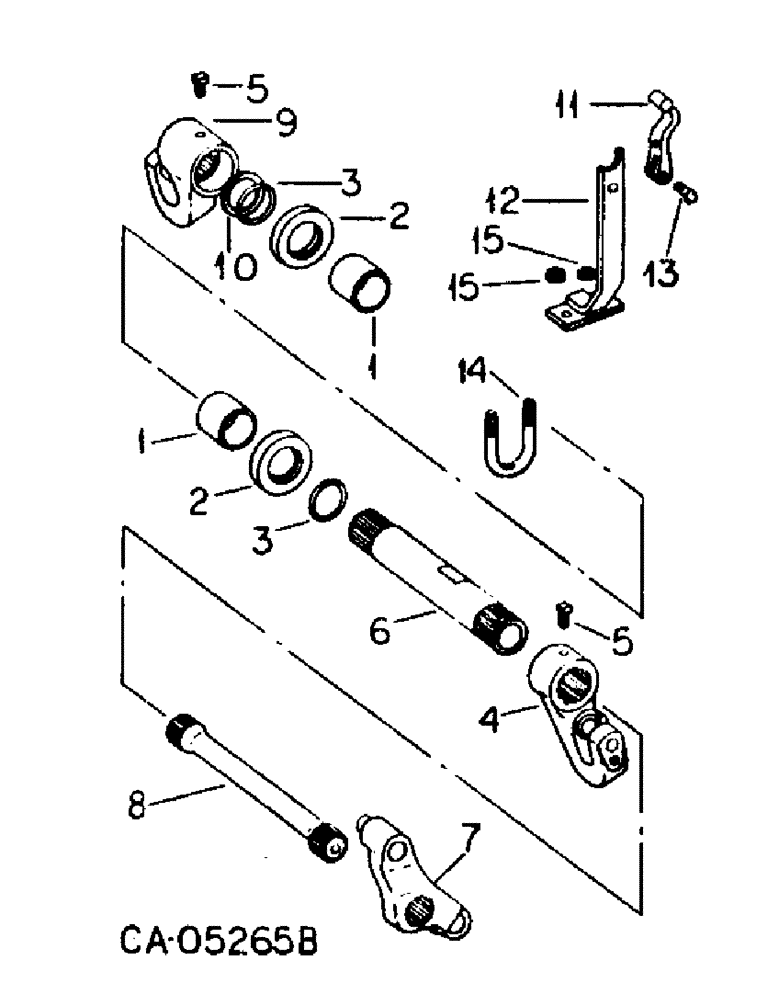

Запчасти Case IH 3488 (10-20) - HYDRAULICS, DRAFT SENSING, TRACTOR WITH CATEGORY III, THREE POINT HITCH (07) - HYDRAULICS

1

394889R91

BUSHING

ASSY liner and case

2шт.

2

392083R1

RETAINER

o-ring, crank arm

2шт.

3

142815C1

SEALING RING,2.85" ID x 0.21" Width

crank arm retainer, 2-7/8 x 3/16 quad

2шт.

4

71389C2

ARM

crank, right

1шт.

5

71390C1

BOLT,5/8" - 18 x 1 21/32", Grade 8

locating

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

77679C1

SHAFT

ASSY crank arm

1шт.

7

401362R31

BRACKET ASSY torsion bar anchor, Or

1шт.

7

392086R31

BRACKET

ASSY torsion bar anchor

1шт.

273303

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

5/8 x 5-1/4 pln type 5

2шт.

106267

WASHER,5/8"

0.688 x 1.750 x 0.108 pln

2шт.

8

71385C2

BAR

torison spring

1шт.

9

71388C1

ARM

crank, left

1шт.

10

142599C1

SHIM

0.054 thick

1шт.

11

390118R1

ARM

sensing upper

1шт.

109084

NUT,1/4"-20, G5

1шт.

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW set, 1/4 x 1-1/2 pln o/pt hdl/hs

1шт.

12

392093R91

ARM

ASSY sensing lower

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

14

392095R1

BOLT,3/8" - 16 x 3.28" W x 3.60" L

U-BOLT sensing arm

1шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.
