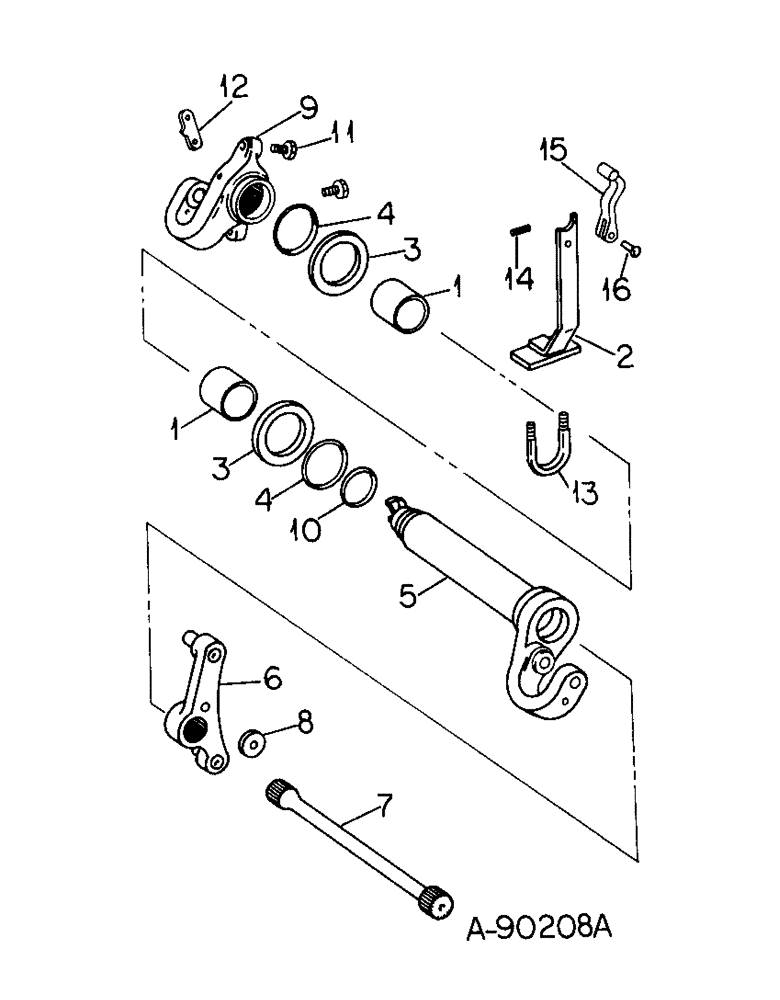

Запчасти Case IH 3488 (10-19) - HYDRAULICS, DRAFT SENSING, TRACTOR WITH CATEGORY II, THREE POINT HITCH (07) - HYDRAULICS

1

394838R91

BUSHING

ASSY liner and case

1шт.

2

391055R11

ARM

ASSY sensing lower

1шт.

3

385099R2

RETAINER

crank arm o-ring

2шт.

4

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

crank arm retainer, 3-3/8 x 3-3/4 x 3/16

2шт.

5

64835C1

ARM

ASSEMBLY crank, right

1шт.

6

64837C1

BRACKET

ASSY torsion bar anchor, Replaces 381923R11

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 pln type 5

2шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

0.656 x 1.312 x 0.188 pln hdn

2шт.

7

393243R1

SHAFT

BAR torsion spring

1шт.

8

354617R1

WASHER

RETAINER torsion bar

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

398097R1

ARM

crank, left

1шт.

10

383260R1

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

2-1/2 x 2-7/8 x 3/16

1шт.

11

383261R2

ADJUSTMENT SCREW

stop adjusting

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

12

383262R1

SUPPORT

RETAINER crank arm

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

381931R1

BOLT (SPREADER),3/8" - 16 x 3.05" W x 3.40" L

U-BOLT sensing arm

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

14

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW set, 1/4-20 hex-soc-hd ov-pt

1шт.

109084

NUT,1/4"-20, G5

1шт.

15

390118R1

ARM

sensing upper

1шт.

16

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
