Запчасти Case IH 3488 (10-18[A]) - HYDRAULICS, PRIORITY VALVE ASSY, BASIC TRACTORS WITHOUT DRAFT CONTROL (07) - HYDRAULICS

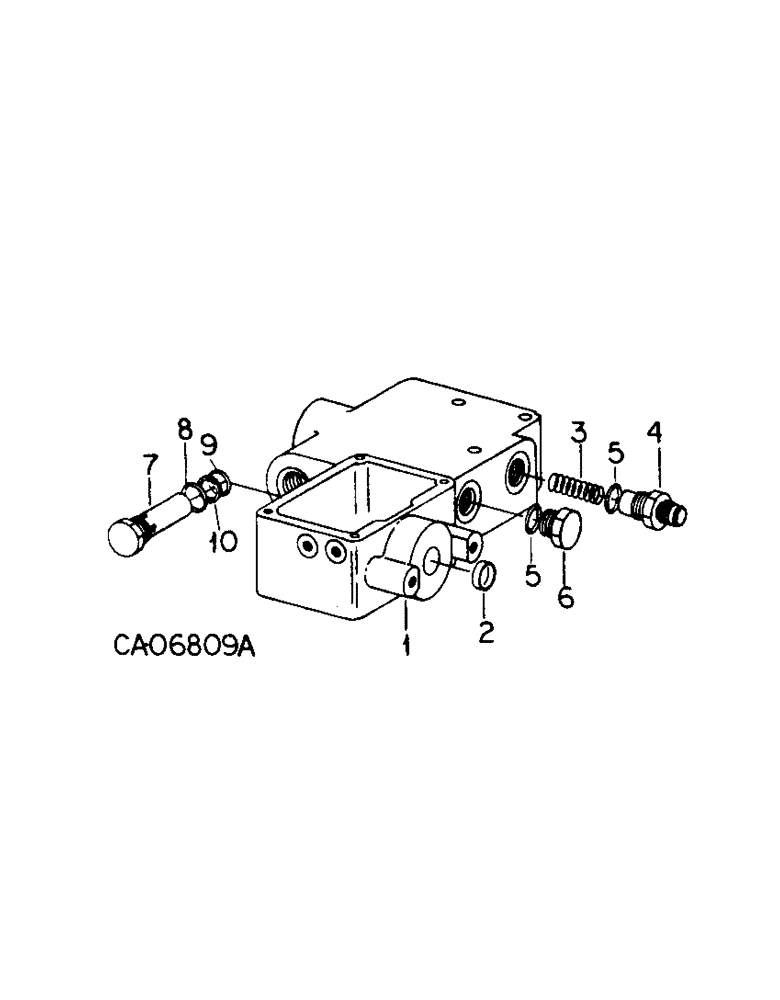

Схема запчастей Case IH 3488 - (10-18[A]) - HYDRAULICS, PRIORITY VALVE ASSY, BASIC TRACTORS WITHOUT DRAFT CONTROL (07) - HYDRAULICS
9
10
4
8
5
3
1
2
5
7
6

Артикул

Название

Примечание

Количество

1

BODY ASSY, Not serviced separately, Order valve assy 133799C91

1шт.

2

327412R1

PLUG,Cup, 13/16"

back up, priority valve

1шт.

3

127880C1

SPRING

motor valve

1шт.

4

127883C1

PLUG

motor valve

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

6

9410360

PLUG

7/8-14 str thd o-ring boss

1шт.

7

138046C91

VALVE

ASSY cushion relief

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

9

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

10

378985R2

BACK-UP RING

back up, relief valve

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1, For mtg priority valve body

2шт.

Выбрано товаров: 11
