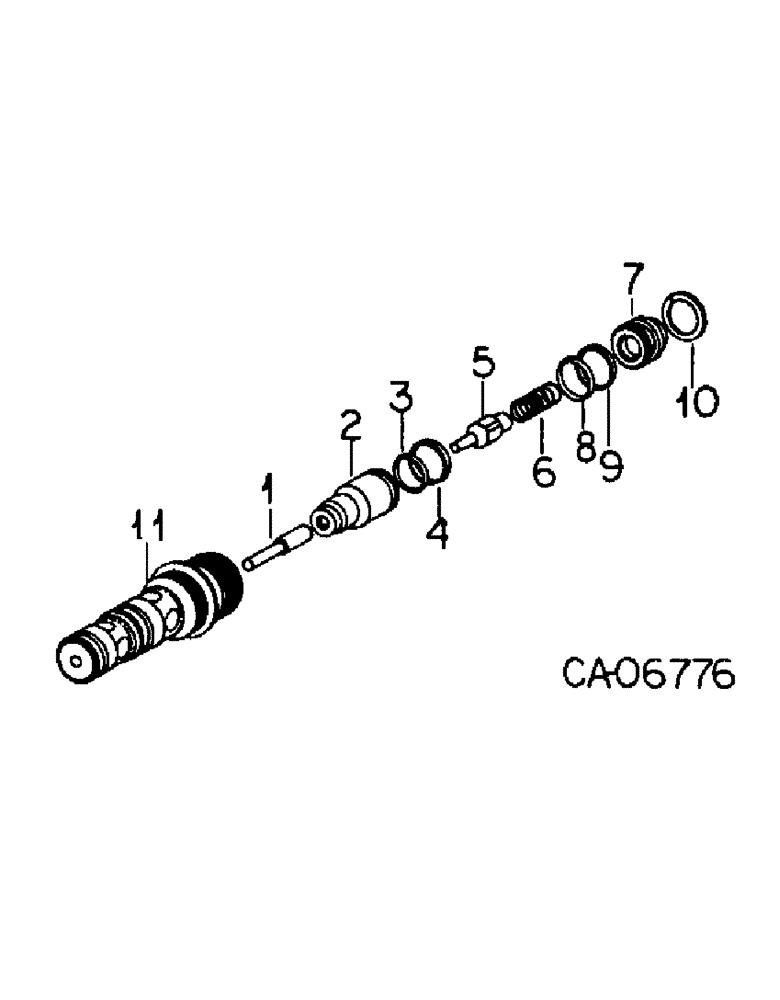

Запчасти Case IH 3488 (10-17) - HYDRAULICS, DROP VALVE ASSY (07) - HYDRAULICS

127835C92

VALVE

ASSY drop

1шт.

1

123262C1

PIN

actuating

1шт.

2

123264C1

VALVE

POPPET valve

1шт.

3

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

4

123279C1

RING

sealing

1шт.

5

123265C1

VALVE

POPPET pilot

1шт.

6

123266C1

SPRING

drop valve

1шт.

7

123267C1

PLUG

drop valve

1шт.

8

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

9

123268C1

RING

backup

1шт.

10

123278C1

RING

retaining, drop valve

1шт.

11

BODY valve, Not serviced separately, Order valve 127835C91

1шт.
