Запчасти Case IH 3488 (10-16) - HYDRAULICS, DRAFT CONTROL CYLINDER AND VALVE (07) - HYDRAULICS

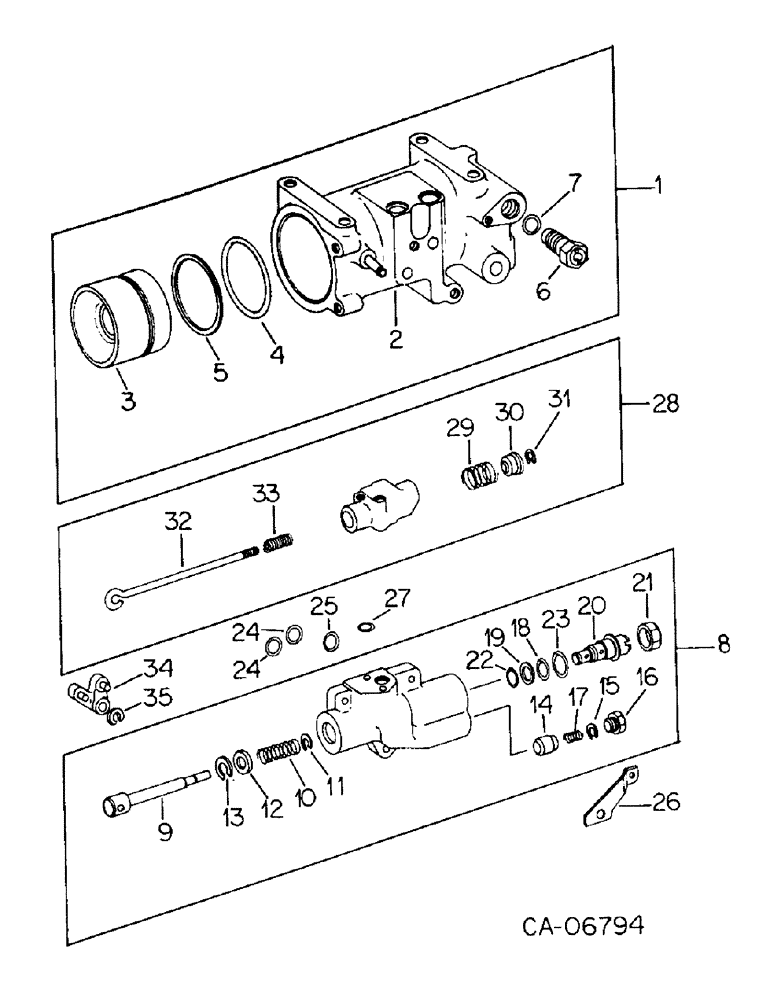

Схема запчастей Case IH 3488 - (10-16) - HYDRAULICS, DRAFT CONTROL CYLINDER AND VALVE (07) - HYDRAULICS
9
22
2
12
28
24
23
14
13
29
21
6
20
32
19
31
11
4
10
8
5
34
3
30
25
24
27
35
15
16
26
33
18
7
1
17

Артикул

Название

Примечание

Количество

1

127871C93

CYLINDER

ASSY draft control, Includes Ref. 2 - 7

1шт.

2

127870C3

CYLINDER

ASSY draft control

1шт.

3

397229R1

PISTON

ASSY draft contorl cylinder

1шт.

4

382604R1

O-RING,4.35" ID x 0.21" Width

draft control piston, 4-3/8 x 4-3/4 x 3/16

1шт.

5

382605R2

WASHER

back up, draft control piston

1шт.

6

1266861C91

LOCK VALVE

VALVE ASSY cushion relief, Start Serial: 757

1шт.

6

60517C92

VALVE

ASSY poppet relief, Serial Range: -756

1шт.

7

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32

1шт.

8

127834C92

VALVE

ASSY draft control, Includes Ref. 9 - 23

1шт.

9

123258C1

VALVE

ASSY spool

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

133702C1

SPRING

valve spool

1шт.

11

376771R1

RING, SNAP

RING retaining, actuator

1шт.

12

376759R1

RETAINER

PLUG spool bore

1шт.

13

303322R1

SNAP RING,1.00", Int, #100

Spool bore plug 1.00", Int, #100

1шт.

14

123260C1

VALVE

check poppet

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

check poppet valve plug, 7/8 tube

1шт.

16

395926R1

PLUG

check poppet valve

1шт.

17

382310R1

SPRING

check poppet valve

1шт.

18

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

drop valve, 11/16 x 13/16 x 1/16

2шт.

19

123263C1

WASHER

back up, drop valve

1шт.

20

127835C92

VALVE

ASSY drop, Refer to drop valve assy, this group for list of components

1шт.

21

9410062

LOCK NUT,Blkhd, 1 1/16"-12

NUT lock, adj fitting, 1-1/16

1шт.

22

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 x 1/16

1шт.

23

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

24

387926R2

RING

valve to cylinder, small

2шт.

25

388591R1

RING

valve to cylinder, large

1шт.

26

127882C1

ANCHOR

spring

1шт.

27

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

drop control valve, 11/16 x 7/8 x 3/32

1шт.

28

391913R91

VALVE

ASSY drop control, Includes Ref. 29 - 33

1шт.

138204

SCREW,Hex Skt, 1/4" - 20 x 1 1/2"

1/4 x 1-1/2 pln h/shd cap

1шт.

445568

BOLT,Hex, 1/4"-20 x 2 1/4", G8

1/4 x 2-1/4 pln type 8

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

382626R1

SPRING

spool return

1шт.

30

384053R1

BUSHING

drop control valve

1шт.

31

384052R1

SNAP RING,#43, .337" Dia, E-Type

Ring, Retaining, #43, .337" Dia, E-Type

1шт.

32

386006R1

ROD

spool actuating

1шт.

446160

WASHER,#10

0.219 x 0.438 x 0.036 pln

1шт.

18411R1

NUT,#10-32, GB

lock, No. 10-NF pln p/t type 5

1шт.

33

53393D

SPRING

spool actuating rod

1шт.

34

382629R11

LEVER

BELLCRANK ASSY drop control valve

1шт.

103361

PIN, SPLIT (COTTER)

PIN cotter, 1/16 x 1/2 pln

1шт.

446169

WIRE CONNECTOR,Female, 6 Pole

0.234 x 0.531 x 0.036 pln

1шт.

35

384052R1

SNAP RING,#43, .337" Dia, E-Type

Ring, Retaining, #43, .337" Dia, E-Type

1шт.

Выбрано товаров: 45
