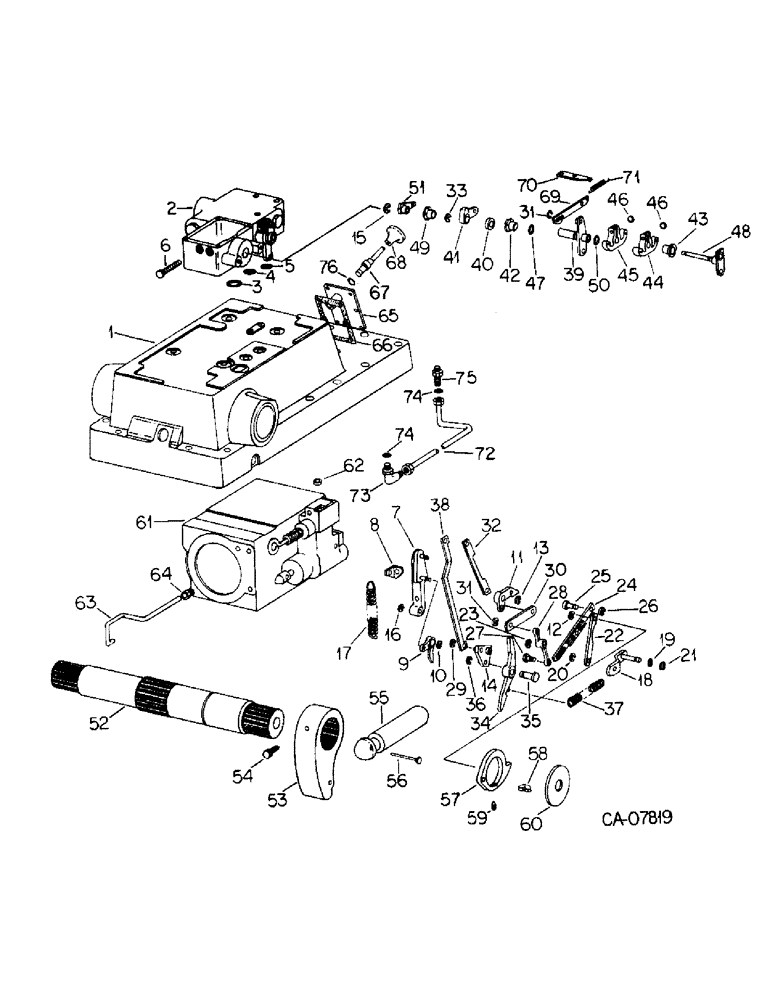

Запчасти Case IH 3488 (10-14) - HYDRAULICS, HYDRAULIC DRAFT CONTROL (07) - HYDRAULICS

1

1272206C91

COVER

ASSY rear frame, Replaces 1259630C91 by also ordering o-ring, 381885R1 and bolt, 28253R1, Refer to rear frame cover group 7 for components

1шт.

2

127925C92

VALVE

ASSY priority and variable raise rate control, Refer to priority valve this group for list of components

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

large, 2-5/16 x 2-1/2 x 3/32

1шт.

4

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

small, 1 x 1-3/16 x 3/32

1шт.

5

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 class 6

1шт.

6

108540C1

SQUARE BOLT

set, coated lock

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

7

384511R93

SUPPORT

ASSY position control stop pivot

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8 type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

113818C1

SUPPORT

balance spring

1шт.

9

384513R11

LEVER

ASSY draft control stop

1шт.

10

381478R1

SNAP RING,#X43, .375" Dia, E-Type

Ring, Retaining, , draft stop lever #X43, .375" Dia, E-Type

1шт.

11

382825R11

LEVER

BELLCRANK ASSY position control

1шт.

12

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

13

204502R1

SNAP RING,#43, Ext

Position control bellcrank #43, Ext

1шт.

14

113815C91

LEVER

ASSY draft control, eccentric

1шт.

15

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

16

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , draft control eccentric #50, .392" Dia, E-Type

1шт.

17

113817C1

SPRING

balance

1шт.

18

384399R92

ECCENTRIC

ASSY position control

1шт.

19

355967R1

O-RING,0.364" ID x 0.003" Width

eccentric shaft, 3/8 x 1/2 x 1/16

1шт.

20

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

21

971043R1

SNAP RING,#50, Ext

Eccentric shaft #50, Ext

1шт.

22

382838R1

LINK

, Serial Range: eccentric-rockshaft

1шт.

23

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

24

403984R1

LINK

ASSY walking, Serial Range: beam-valve

1шт.

25

382841R1

PIN

walking, Serial Range: beam-valve

1шт.

26

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

27

382842R1

SCREW,Shldr, Hex, 5/16" - 18 x 0.65", W/ Nylon Pellet

shoulder

1шт.

28

382843R11

BEAM

ASSY follow-up walking

1шт.

29

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

30

382845R1

LINK

walking, Serial Range: beam-bellcrank

1шт.

31

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Walking beam to bellcrank #X31, .243" Dia, E-Type

1шт.

32

108539C2

SUPPORT

position control inner, link

1шт.

33

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

34

392225R2

ARM

draft control sensing pickup

1шт.

35

382788R1

PIN

sensing pickup arm

1шт.

36

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , sensing pickup arm pin #37, .300" Dia, E-Type

1шт.

37

392280R1

SPRING

sensing arm return

1шт.

38

108538C1

SUPPORT

link, sensing inner

1шт.

39

127852C1

SHAFT

ASSY position control

1шт.

40

128036C1

SPACER

position control lever

1шт.

41

128038C1

LEVER

ASSY int. position control

1шт.

42

532395R1

BUSHING,19.07mm ID x 20.63mm OD x 16.64mm L

BEARING position control shaft

2шт.

43

65369C1

BUSHING,22.25mm ID x 23.8mm OD x 16.64mm L

BEARING sensitivity control shaft

1шт.

44

108536C1

SUPPORT

sensitivity control bearing

1шт.

45

108535C1

SUPPORT

position control bearing

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

181341

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-NF x 1-1/4 pln type 5

2шт.

46

532409R1

SPRING WASHER

safety spring

2шт.

137544C1

NUT

square, 5/16-24

1шт.

47

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

48

108523C1

SHAFT

ASSY sensitivity control

1шт.

49

863138R91

PLASTIC RING

BEARING sensitivity shaft

1шт.

50

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

51

108531C1

LEVER

ASSY sensitivity control

1шт.

19304R1

PIN,5.54mm OD x 28.57mm L, Coiled

1шт.

52

388573R2

ROCKSHAFT

hyd draft control

1шт.

53

382810R3

LEVER

BELLCRANK rockshaft

1шт.

54

382811R1

SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt

set, bellcrank lock-thread

1шт.

55

382812R4

ROD

piston connecting

1шт.

56

398314R2

PIN,6.35mm OD x 76.2mm L

piston connecting rod

1шт.

16558R1

WASHER

0.266 x 0.625 x 0.036 pln

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

57

384518R11

CAM

ASSY rockshaft actuating hub

1шт.

58

376057R1

BUCKET TOOTH KEY

KEY rockshaft actuating hub cam

1шт.

59

382816R1

SET SCREW

set, rockshaft actuating hub cam

1шт.

60

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

61

CYLINDER AND VALVE ASSY draft control, Refer to draft control cylinder and valve, this group for list of components

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

2шт.

62

387926R2

RING

, Serial Range: cylinder-cover

2шт.

63

385942R91

TUBE

ASSY cylinder lube

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

64

222-502

TUBE NUT,7/16"-24

NUT, 1/4 tube

1шт.

64

19984R1

TUBE NUT,7/16"-24

NUT nylon insert tube, 1/4

1шт.

65

130679C2

COVER

ASSY valve adj

1шт.

66

382416R1

GASKET

cover

1шт.

67

130677C2

COUPLING

adjusting

1шт.

68

130678C2

KNOB

valve adj screw

1шт.

69

127859C2

LINK

raise speed control

1шт.

70

127861C1

BAR

raise speed control spring

1шт.

71

127862C2

SPRING

raise speed control

1шт.

72

127863C1

HYD TUBE

TUBE ASSY signal line internal

1шт.

73

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

90 deg, 1/2-20 37 deg hyd flared tube adj str thd

1шт.

75

9403253

FITTING,Blkhd, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree

UNION, 1/2-20 37 deg hyd flared tube bulkhead

1шт.

76

130682C1

O-RING

size No. 109

1шт.

74

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

2шт.
