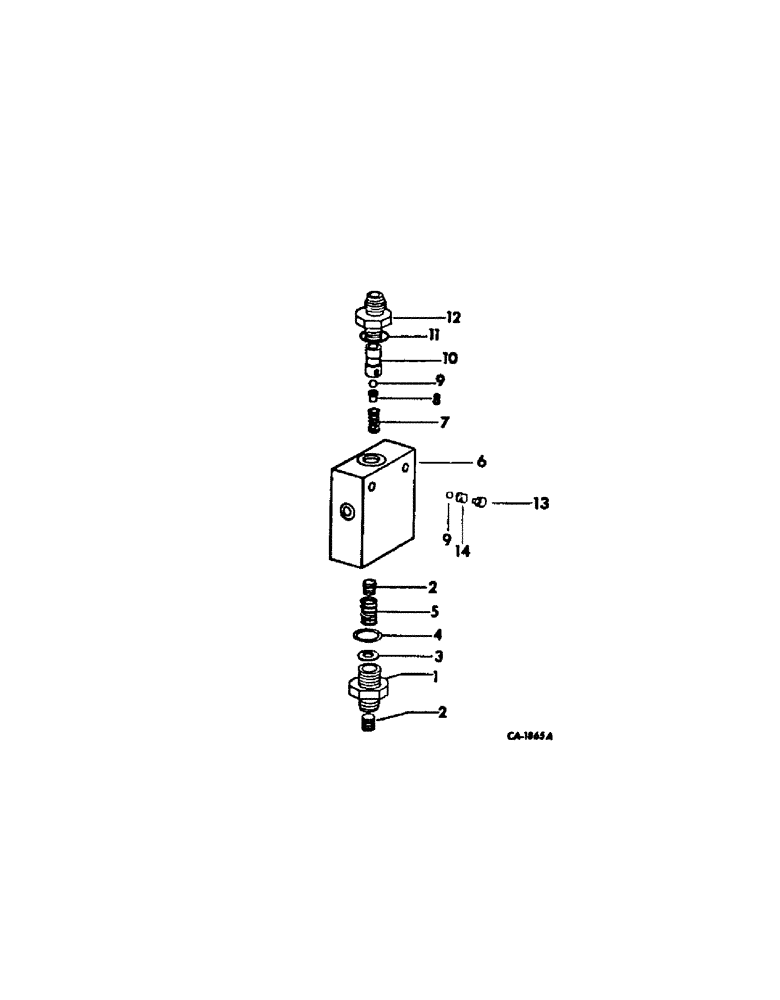

Запчасти Case IH 3488 (10-12[A]) - HYDRAULICS, PRESSURE REDUCING VALVE, FOR DIFFERENTIAL LOCK, FOR ALL WHEEL DRIVE ATT. (07) - HYDRAULICS

534750R92

VALVE

ASSY pressure reducing

1шт.

1

534757R2

FITTING

spring retainer

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW valve adjusting

2шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

3

Q102

WASHER

13/64 x 1/2 x 18 ga

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING pressure reducing valve

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

6

NSS

NOT SOLD SEPARAT

BODY pressure reducing

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

8

NSS

NOT SOLD SEPARAT

GUIDE relief valve spring

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

9

NSS

NOT SOLD SEPARAT

BALL, 7/32 cr-stl

2шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve spool

1шт.

12

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG ball check

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING ball check

1шт.

Not serviced separately, Order valve assy. 534750R92

1шт.
