Запчасти Case IH 3488 (10-11) - HYDRAULICS, POWER STEERING CYLINDER & CONNECTIONS, TRACTORS W/ALL WHEEL DRIVE W/ 2-PIECE DRIVE SHAFT (07) - HYDRAULICS

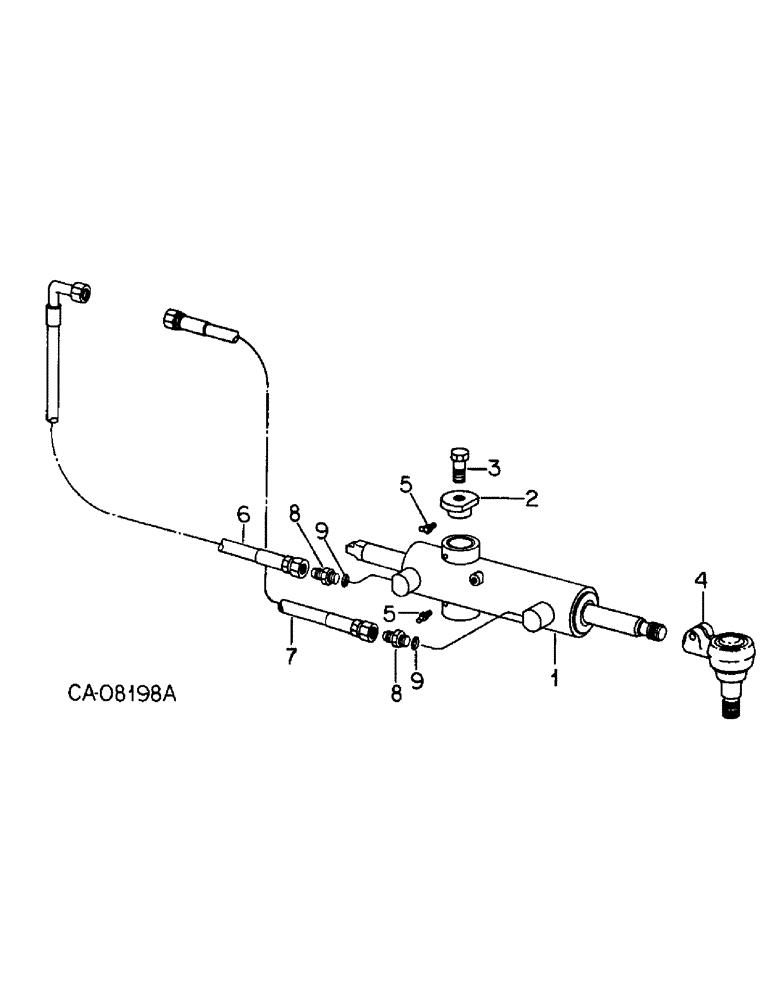

Схема запчастей Case IH 3488 - (10-11) - HYDRAULICS, POWER STEERING CYLINDER & CONNECTIONS, TRACTORS W/ALL WHEEL DRIVE W/ 2-PIECE DRIVE SHAFT (07) - HYDRAULICS
5
9
7
8
9
6
5
3
2
4
8
1

Артикул

Название

Примечание

Количество

1

145411C92

CYLINDER BLOCK

CYLINDER ASSY hyd steering, Refer to power steering cylinder, this group for list of components

1шт.

2

531237R1

CAP

trunnion

2шт.

3

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

1270887C1

WASHER

trunnion cap bolt

2шт.

4

1264690C1

END

steering cylinder

1шт.

614451R1

WASHER

1.031 x 1.750 x 0.105

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 p/t lock type 5

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING lube, 65 deg, 1/8 ptf short

2шт.

6

1251871C1

HYDRAULIC HOSE

HOSE steering, left

1шт.

7

1251872C1

HOSE

steering, right

1шт.

8

148831C1

FITTING

hose

2шт.

9

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

2шт.

Выбрано товаров: 15
