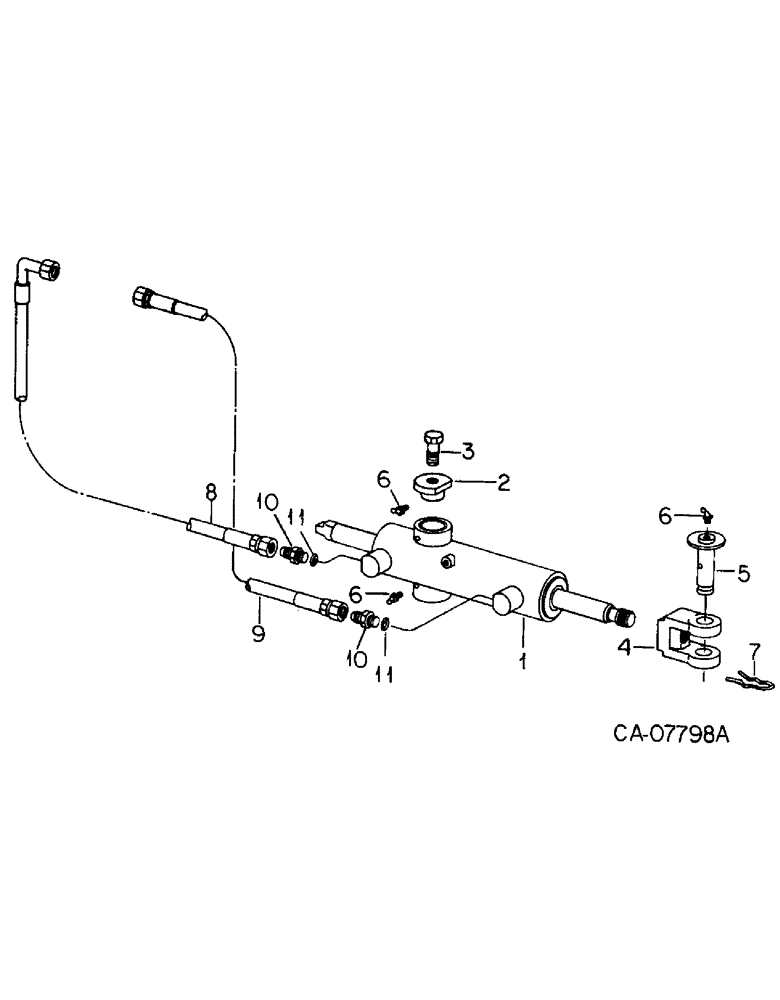

Запчасти Case IH 3488 (10-10) - HYDRAULICS, POWER STEERING CYLINDER & CONNECTIONS, TRACTORS W/ALL WHEEL DRIVE W/ 1-PIECE DRIVE SHAFT (07) - HYDRAULICS

1

145411C92

CYLINDER BLOCK

CYLINDER ASSY hyd steering, Refer to power steering cylinder, this group for list of components

1шт.

2

531237R1

CAP

trunnion

2шт.

3

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

575812R1

WASHER

0.719 x 1.500 x 0.105 pln

2шт.

4

148825C2

CLEVIS COUPLING

CLEVIS

1шт.

191951

SCREW,Hdls Hex Skt, 5/16" - 18 x 3/4", Cup Pt

set, 5/16 x 3/4 c/pt znp hdl/s

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

148826C3

CLEVIS COUPLING

PIN clevis

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING lube, 65 deg, 1/8 ptf

3шт.

7

148827C1

CLIP

spring

1шт.

8

1251871C1

HYDRAULIC HOSE

HOSE steering, left

1шт.

9

1251872C1

HOSE

steering, right

1шт.

10

148831C1

FITTING

hose

2шт.

11

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

2шт.
