Запчасти Case IH 3488 (10-08) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

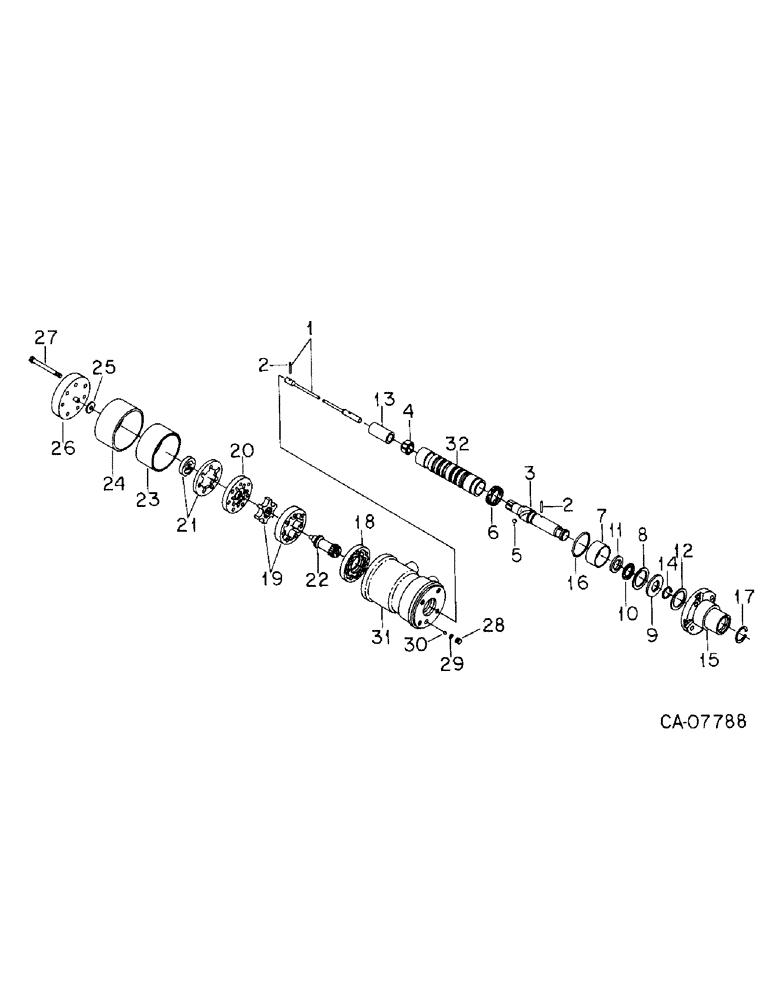

Схема запчастей Case IH 3488 - (10-08) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS
32
31
24
8
15
9
18
20
5
7
10
26
23
21
14
28
16
13
4
12
3
27
22
1
29
2
17
11
6
30
25
19
2

Артикул

Название

Примечание

Количество

1263446C91

PUMP

ASSY internal hydrostatic steering, Replaces 224675C91

1шт.

1263446C91R

REMAN-STEERING VALVE

3488 INTERNATIONAL HYDROSTATIC TRACTOR, ASSY internal hydrostatic steering

1шт.

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

224713C1

BAR

ASSY torsion, Use w/ pump 224675C91

1шт.

1

535055R1

BAR

ASSY torsion, Use w/ pump 1263446C91

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

17010R1

BALL,5/16" Dia

1шт.

6

79012C1

PACKAGE

KIT ball retainer

1шт.

7

79013C1

SPACER

1шт.

8

928469C1

WAVE WASHER

wave

1шт.

9

535087R1

THRUST WASHER

thrust

1шт.

10

379783R91

THRUST BEARING

BEARING ASSY thrust

1шт.

11

379785R1

THRUST WASHER

WASHER thrust

1шт.

12

67567C1

PACKAGE

KIT shim

1шт.

13

537277C1

SPACER drive link

1шт.

14

928752C1

RING

retaining

1шт.

15

70115C1

COVER

ASSY upper

1шт.

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

SCREW, 5/16 x 0.750 phc ast 12pt flg

4шт.

16

535091R1

RING

seal

1шт.

17

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

18

535093R1

SPACER

1шт.

19

537282R1

ROTOR

SET

1шт.

20

535096R1

MANIFOLD

1шт.

21

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

22

538069R1

DRIVE

LINK drive

1шт.

23

537279R1

SEAL

SEAL rotor

1шт.

24

71360C1

RETAINER

seal

1шт.

25

535100R1

THRUST WASHER

1шт.

26

535101R1

COVER

PLATE ASSY end cover

1шт.

27

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

end cover

7шт.

28

71085C1

PLUG

w/ o-ring

1шт.

29

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

1шт.

30

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

1шт.

31

BODY ASSY, Not serviced separately, Order pump assy 1263446C91

1шт.

32

SPOOL body, Not serviced separately, Order pump assy 1263446C91

1шт.

405788R91

PACKAGE

vane and spring

1шт.

224712C1

SEAL KIT

PACKAGE hydrostatic power steering hand pump service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

SPACER seal

1шт.

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.

Выбрано товаров: 42
