Запчасти Case IH 3488 (10-06) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTIONS (07) - HYDRAULICS

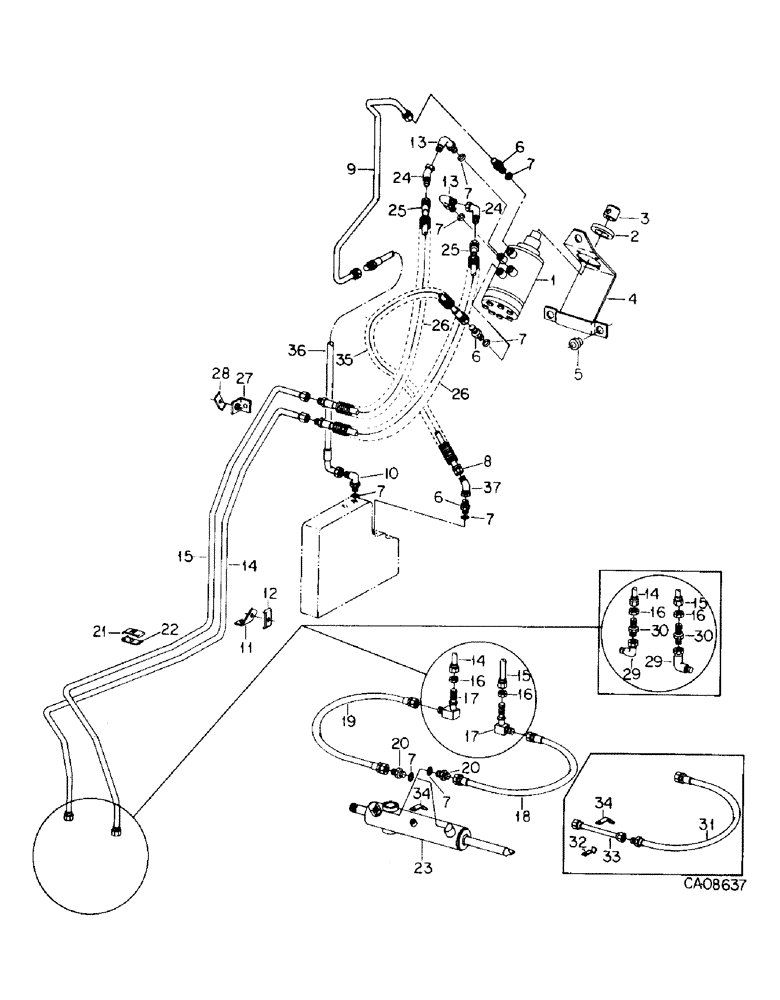

Схема запчастей Case IH 3488 - (10-06) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTIONS (07) - HYDRAULICS
34
20
32
29
27
26
33
15
20
2
7
30
9
12
7
4
37
7
17
14
14
36
18
16
5
16
16
6
14
16
11
21
28
25
30
7
19
13
1
29
6
10
25
24
23
15
26
13
31
24
6
34
17
3
7
15
8
7
35
7
7
22

Артикул

Название

Примечание

Количество

1

1263446C91

PUMP

ASSY power steering hand, Replaces 224675C91, Refer to power steering hand pump this group for list components

1шт.

1

1263446C91R

REMAN-STEERING VALVE

3488 INTERNATIONAL HYDROSTATIC TRACTOR, ASSY power steering hand

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

*

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust, For tractors w/o tilt steering

1шт.

2

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft dust, For tractors w/ tilt steering

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY hand pump mtg.

1шт.

*

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket

3шт.

*

536642R1

WASHER

13/32 x 1 x 0.060

3шт.

*

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

8шт.

8

1264672C1

HOSE ASSY.

HOSE ASSY steering pressure, Replaces 104750C1 by also ordering package 1270850C91

1шт.

9

1270849C1

HYD TUBE

TUBE ASSY power steering return, Replaces 104454C2 by also ordering package 1270850C91

1шт.

10

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

C-Z hyd fld adj 1/2 to 3/8 90D

1шт.

11

537844R2

BRACKET

ASSY steering tube

1шт.

12

535307R1

CLAMP

steering tube

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

95-11034

WASHER,1/4"

0.344 x 0.688 x 0.051 pln

1шт.

*

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 deg, 3/8 C-Z hyd fld adj

2шт.

14

1270508C2

HYD TUBE

TUBE ASSY right turn steering, Replaces 120443C2 by also ordering package 1270513C92

1шт.

15

1270507C2

HYD TUBE

TUBE ASSY left turn steering, Replaces 120444C2 by also ordering package 1270513C92

1шт.

16

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, 3/8 C-Z bulkhead union

2шт.

17

1272240C1

ELBOW

90 deg, 3/8 C-Z hyd fld bulkhead

2шт.

18

148487C1

HOSE

ASSY power steering, left, 736 MM (29.00 in.) long

1шт.

19

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY power steering, right

1шт.

20

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

21

384855R11

CLAMP

ASSY power steering tube

1шт.

22

384855R1

CLAMP

tube

1шт.

*

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

CYLINDER ASSY power steering, Refer to power steering cylinder, this group for components

1шт.

24

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 deg swivel, 3/8 C-Z hyd fld

2шт.

25

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY steering

2шт.

26

TUBING corrugated, Use 600 MM from bulk roll marked 1266755C1

1шт.

27

1270445C2

SUPPORT TUBE

SUPPORT ASSY steering tubes

1шт.

28

535307R1

CLAMP

strg tubes

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

29

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 deg, 3/8 C-Z hyd fld, if required

2шт.

30

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead, if required

2шт.

31

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY power steering, left, 578 MM (22.75 in.) long

1шт.

32

533578R2

CLAMP

tube, For use w/ hose assy 70312C1

1шт.

33

533579R2

TUBE

ASSY cylinder to left strg hose, For use w/ hose assy 70312C1

1шт.

34

533577R2

CLAMP

hose

1шт.

*

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

35

TUBING corrugated, Use 1700 MM from bulk roll marked 1266755C1, Start Serial: 737

1шт.

36

1264673C1

HOSE

ASSY steering return, Start Serial: 737

1шт.

37

9410255

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

45 deg swivel, 1/2 C-Z hyd fld, Start Serial: 737

1шт.

*

1270850C91

STRIPPER PACKAGE

PACKAGE steering pressure and return hose service, Consists of

1шт.

*

1264672C1

HOSE ASSY.

HOSE ASSY steering pressure

1шт.

*

9410255

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

45 deg swivel, 1/2 C-Z hyd fld

1шт.

*

NSS

NOT SOLD SEPARAT

TUBING corrugated

1шт.

*

1264673C1

HOSE

ASSY steering return

1шт.

*

1270849C1

HYD TUBE

TUBE ASSY steering return

1шт.

*

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

*

1270513C92

TUBE

PACKAGE left and right steering lines, Consists of

1шт.

*

1270508C2

HYD TUBE

TUBE ASSY right turn

1шт.

*

1270507C2

HYD TUBE

TUBE ASSY left turn

1шт.

*

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY steering

2шт.

*

TUBING corrugated, 600 MM from 1266755C1

2шт.

*

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 deg swivel, 3/8 C-Z hyd fld

2шт.

*

1270445C2

SUPPORT TUBE

SUPPORT ASSY steering tubes

1шт.

*

535307R1

CLAMP

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

179814

SPACER

5/16 x 5/8 pln type 5

1шт.

*

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

Выбрано товаров: 69
