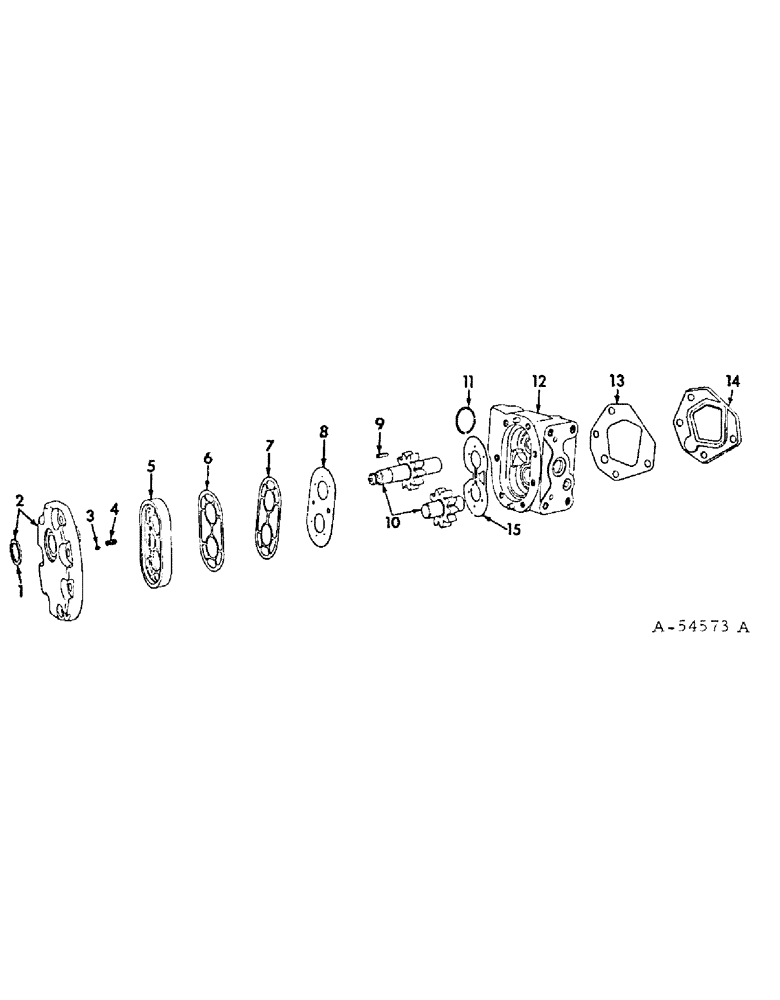

Запчасти Case IH 3488 (10-04) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 17 GPM (07) - HYDRAULICS

70935C91

PUMP, HYDRAULIC

PUMP ASSY hydraulic, 17 GPM

1шт.

1949292C1

REMAN-HYD PUMP

3488 INTERNATIONAL HYDROSTATIC TRACTOR, PUMP ASSY

1шт.

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL oil, pump shaft, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

2

COVER ASSY pump, Not serviced separately, Order pump assembly 70935C91

1шт.

3

17007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING ball check

1шт.

5

SEAL diaphragm, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

6

GASKET protector, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

7

GASKET back-up, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

8

DIAPHRAGM pressure, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

9

71266C1

KEY

5/32 x 1/2 sq-parallel

1шт.

10

PACKAGE drive and driven gear, Not serviced separately, Order pump assembly 70935C91

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

suction port, 1-1/4 x 1-1/2 x 1/8

1шт.

12

BODY pump, w/ bushing, Not serviced separately, Order pump assembly 70935C91

1шт.

13

71265C1

GASKET

rear implement pump cover

1шт.

14

371524R1

LARGE PLATE

COVER rear implement pump

1шт.

15

PLATE thrust, Not serviced separately, Order o-ring and gasket package 71264C1

1шт.

71264C1

SEAL KIT

PACKAGE hydraulic pump, o-ring and gasket service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

THRUSTPLATE

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

BALL

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.
