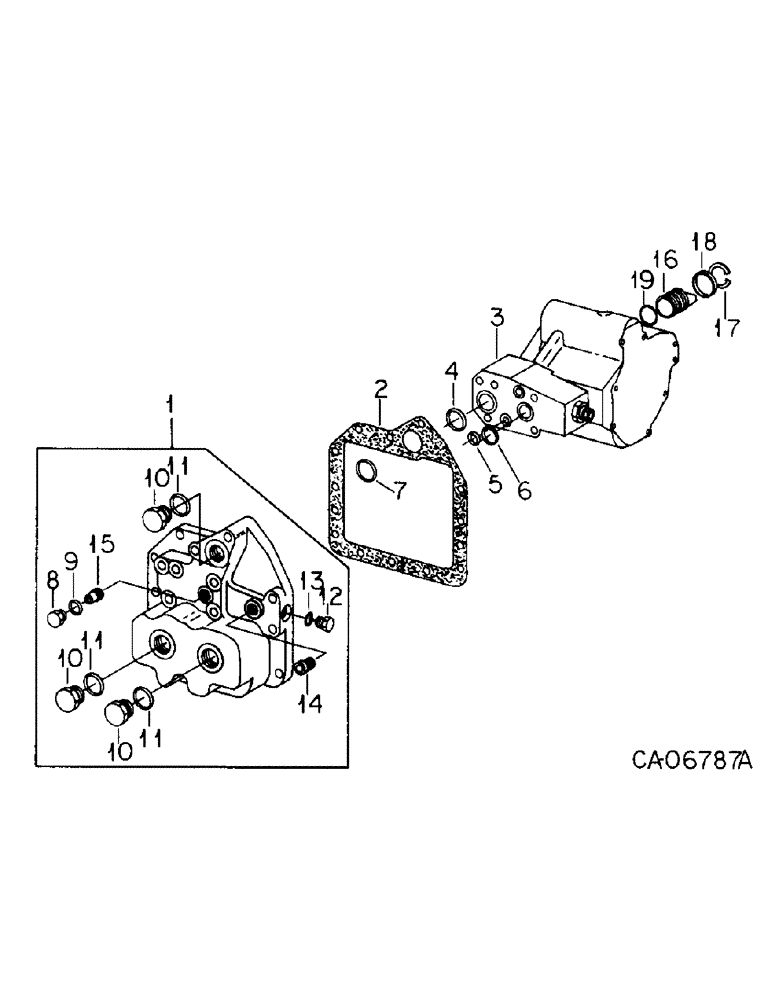

Запчасти Case IH 3488 (10-03) - HYDRAULICS, HYDRAULIC POWER SUPPLY, IN REAR FRAME, TRACTOR W/ DRAFT CONTROL AND/OR AUXILIARY VALVES (07) - HYDRAULICS

1

140628C91

FLANGE

ASSY pump mtg, Includes Ref. 8 - 15

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

5шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 type 5

5шт.

565832R1

WASHER

hyd pump mounting bolt

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

382244R4

GASKET

pump mounting flange

1шт.

3

PUMP piston, renewed, Not serviced separately, Order service package 1263450C91

1шт.

4

25897R1

O-RING,-022, 90 Duro, .989" ID x .070" Thk

pressure port, 1 x 1-1/8 x 1/16

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

attenuator port, 3/8 x 9/16 x 3/32

1шт.

6

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

signal port, 13/16 x 1 x 3/32

1шт.

7

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

pump mtg flange to rear frame, 1-1/8 x 1-5/16 x 3/32

1шт.

8

9410358

PLUG

9/16-18

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

10

9410361

PLUG

1-1/16-12

2шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

5шт.

12

9410356

PLUG

7/16-20

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

14

127886C1

BLEEDER VALVE

VALVE ASSY signal orifice

1шт.

15

140736C1

FILTER SCREEN

SCREEN ASSY signal

1шт.

16

128186C2

TUBE,1.25" OD, 2.125" Length

pump suction

1шт.

17

27933R1

SNAP RING,#125, 1.188", Ext Spiral

RING retaining

1шт.

18

537545R92

SEAL

oil, pump suction tube

1шт.

19

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

pump inlet, 1-1/4 x 1-7/16 class 5

1шт.

1263450C91

PACKAGE

pfc pump, renewed, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSY renewed

1шт.

1263450C91C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263450C92C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263450C92R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump; For N.A. only

1шт.

1263472C91

PACKAGE

seal and gasket, Consists of

1шт.

537545R92

SEAL

pump suction tube

1шт.

382257R2

GASKET

1шт.
