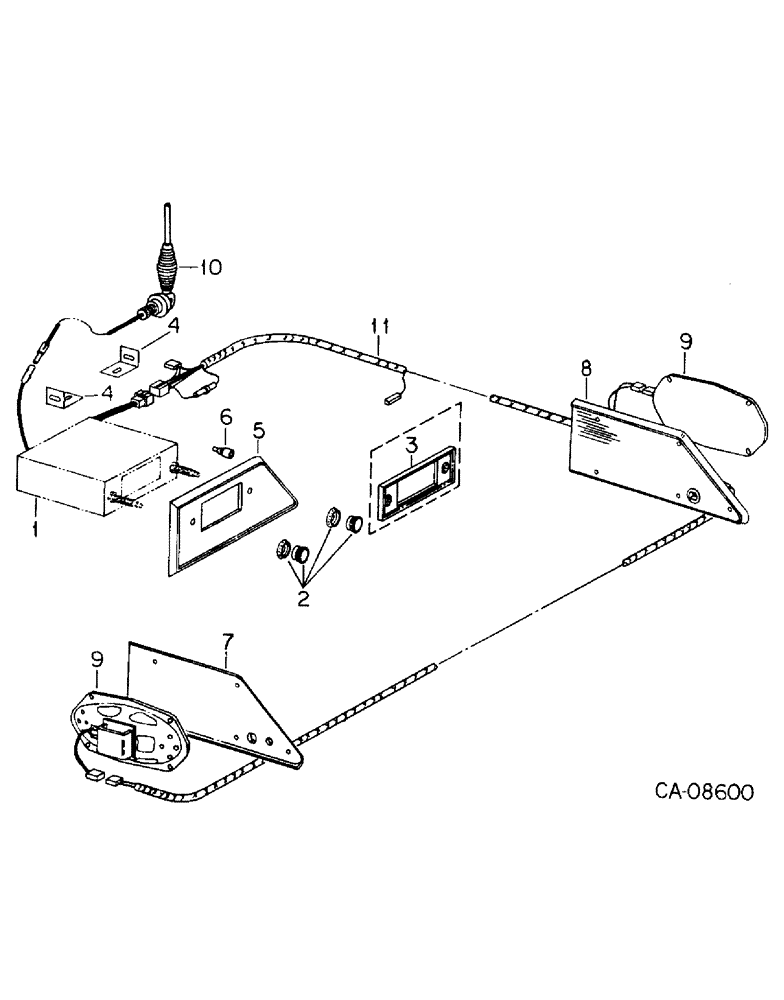

Запчасти Case IH 3488 (08-25) - ELECTRICAL, RADIO EQUIPMENT, AM/FM AND TAPE PLAYERS (06) - ELECTRICAL

111640C92

RADIO

PARTS accessory, AM radio w/ fader control, Consists of radios 111643C1 or 111644C1 and Ref. 2 - 12 and instructions

1шт.

111641C92

RADIO

PARTS accessory, AM/FM monaural radio w/ fader control, Consists of radios 111645C1 or 111646C1 and Ref. 2 - 12 and instructions

1шт.

111642C92

RADIO

PARTS accessory, AM/FM multiplex radio w/ 8 track tape player, Consists of radio 111647C1, Ref. 2 - 12 and instructions

1шт.

146558C91

RADIO

PARTS accessory, AM/FM push button multiples stereo radio, Consists of radio 146560C1 and Ref. 2 - 12 and instructions

1шт.

146559C91

PACKAGE

PARTS accessory, AM/FM stereo push button radio w/ cassette tape player, Consists of radio 111648C1 and Ref. 2 - 12 and instructions

1шт.

1

111643C1

RADIO

AM w/ fader, Boman, Or

1шт.

1

111644C1

RADIO AM w/ fader, Motorola

1шт.

1

111645C1

RADIO

AM/FM monaural, Boman, Or

1шт.

1

111646C1

RADIO AM/FM monaural, Motorola

1шт.

1

111647C1

RADIO

AM/FM, w/ 8 track tape, Boman

1шт.

1

111648C1

RADIO

AM/FM stereo cassette push-button, Boman

1шт.

1

146560C1

RADIO

AM/FM stereo push-botton, Boman

1шт.

142919C1

NUT

large shaft, For use w/ Boman radios

2шт.

142920C1

WASHER

shaft, For use w/ Boman radios

2шт.

142921C1

NUT

small shaft, For use w/ Boman radios

2шт.

25056R1

WASHER

shaft, For use w/ Motorola radios

2шт.

328505C1

NUT

mounting, For use w/ Motorola radios

2шт.

2

117993C1

PACKAGE

KIT radio control knobs, For use w/ Boman

1шт.

2

385531C1

KNOB

tone and balance, For use w/ Motorola radios

2шт.

3

117992C1

PLATE

trim, For use w/ Boman radios

1шт.

4

117818C1

ANGLE

radio mounting

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

4

143124C1

ANGLE

radio mounting, For use w/ factory installed radio 111648C1 on burgandy and western cabs

2шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER lock, external-internal tooth, 1/4

2шт.

143059C1

NUT

tamper resistant, 1/2-20

1шт.

5

118376C1

PANEL

radio trim, For use w/ Boman

1шт.

5

142955C1

PANEL

radio, For use w/ Motorola

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW trim panel mtg

5шт.

6

117995C1

PACKAGE

KIT trim panel fastener, Consists of 5 fasterners

3шт.

7

111402C2

PANEL

speaker trim, left

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW trim panel mtg

5шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic, 5/8 hole

1шт.

8

1114703C1

PANEL speaker trim, right

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW trim panel mtg

5шт.

9

142956C1

SPEAKER

4 x 8 4 ohm

2шт.

10

111237C1

ANTENNA

ASSY

1шт.

169850C1

CLIP

self adhesive

1шт.

11

143177C1

HARNESS

ASSY radio and speaker

1шт.

445635

FUSE,3 Amp, Type 1AG

1AG, 3 amperes

1шт.

118154C91

ACCESSORIES

PARTS accessory, headphone connecting jack, For tractors w/ ROPS frame, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CABLE

1шт.

NSS

NOT SOLD SEPARAT

HARNESS ASSY ear phone jack extension

1шт.

118106C1

WASHER

cup trim

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

70566C91

JACK

PARTS accessory, headphone connecting jack, For tractors w/ cab, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CABLE

1шт.

143186C92

RADIO

PARTS accessory, radio completing, For tractors w/ ROPS frame, Consists of

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

118595C1

BRACKET

ASSY

1шт.

444272

SCREW

2шт.

159592

SCREW,Cross Pan Hd, #8 - 32 x 1/2"

2шт.

445106

SPARE PART

NUT

2шт.

118258C1

PANEL

2шт.

28058R1

SCREW

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

8шт.

142995C1

CABLE

ASSY

1шт.

118070C1

CABLE

ASSY

1шт.

187626C2

ANGLE

1шт.

118120C1

SUPPORT

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

187625C1

COVER ASSY

COVER

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.
