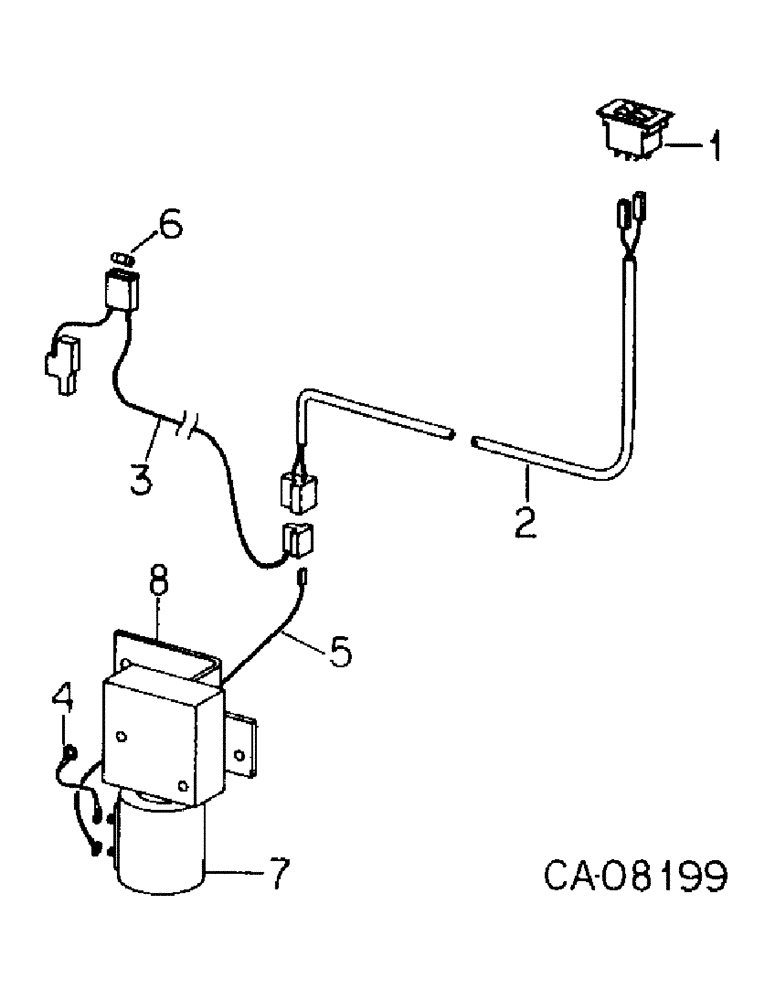

Запчасти Case IH 3488 (08-24) - ELECTRICAL, ALL WHEEL DRIVE CONTROLS, ELECTRICAL TRACTORS W/ALL WHEEL DRIVE W/TWO PIECE DRIVE SHAFT (06) - ELECTRICAL

1

1264637C1

SWITCH

ASSY AWD actuating

1шт.

2

1264633C1

CABLE

ASSY AWD, Serial Range: junction-switch

1шт.

3

1264634C1

CABLE

ASSY fuse block to AWD switch junction

1шт.

4

139138C1

CABLE

ASSY solenoid, Serial Range: valve-ground

1шт.

5

139153C1

CABLE

ASSY actuating, Serial Range: switch-solenoid

1шт.

6

131222C1

FUSE

10 amp, red

1шт.

7

VALVE ASSY block and solenoid, For details see block and solenoid valve listing, group 10

1шт.

8

1264675C1

BRACKET ASSY solenoid valve

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.
