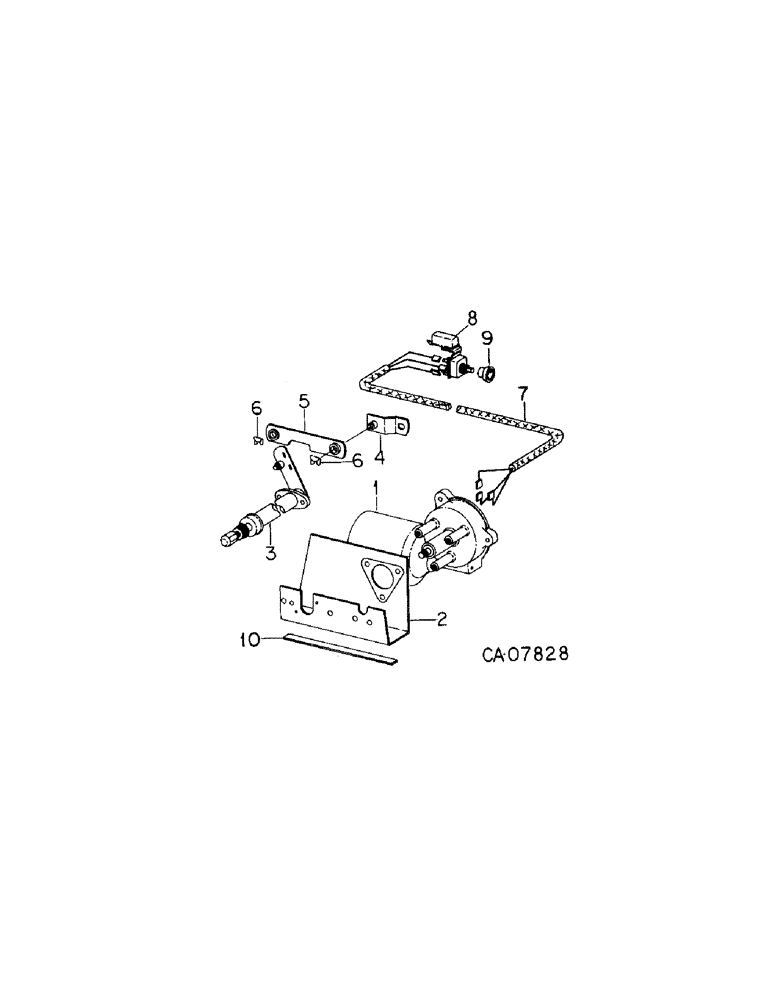

Запчасти Case IH 3488 (08-20) - ELECTRICAL, WINDSHIELD WIPER MOTOR & CONNECTIONS, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

1267548C91

WIPER MOTOR

MOTOR ASSY windshield wiper, Replaces motor 143417C1 and bracket 923480C1, Consists of Ref. 1 - 6

1шт.

1

MOTOR windshield wiper, Not serviced separately, Order motor assy 1267548C91

1шт.

2

BRACKET mounting, Not serviced, Order motor assy 1267548C91

1шт.

148074R1

WASHER

2шт.

3

SHAFT AND PIVOT ASSY

1шт.

Not serviced seperately. Order kit 1267542C91

1шт.

1267556C1

BUTTON

NUT knurled driver, Replaces 3016057R1

1шт.

4

ARM ASSY drive

1шт.

Not serviced seperately. Order kit 1267542C91

1шт.

5

LINK ASSY connecting

1шт.

Not serviced seperately. Order kit 1267542C91

1шт.

6

239487C1

CLIP spring, Replaces 937547C1

2шт.

7

146340C1

HARNESS ASSY windshield wiper

1шт.

8

109222C1

SWITCH

windshield wiper, w/circuit breaker

1шт.

109311H

JAM NUT

hex face, 7/16-28

1шт.

9

111282C1

KNOB

wiper control

1шт.

10

118149C1

BAR

wiper mounting, shim

1шт.

117829C1

NUT

J-type retainer

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23048R1

WASHER

0.719 x 1.250 x 0.027, Or as required

4шт.

1267542C91

PACKAGE

KIT wiper linkage service, Consists of Ref. 3 - 6 and instructions

1шт.

SCREW

3шт.

NUT lock

1шт.

SCREW, w/ lock washer

2шт.
