Запчасти Case IH 3488 (08-18[A]) - ELECTRICAL, FRONT FLOOD LIGHT MOUNTING TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

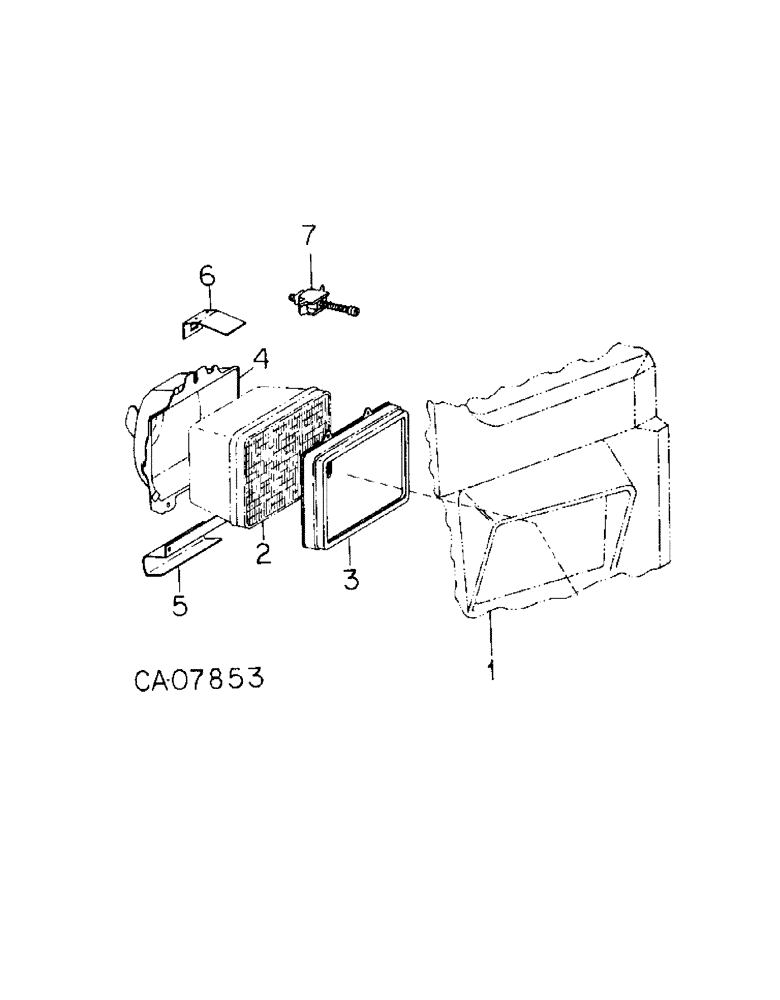

Схема запчастей Case IH 3488 - (08-18[A]) - ELECTRICAL, FRONT FLOOD LIGHT MOUNTING TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL
4
3
6
1
5
2
7

Артикул

Название

Примечание

Количество

1

PANEL front lower, Refer to deluxe control center, group 13

1шт.

2

LIGHT rectangular front flood, Refer to tractor flood and head lights, this group

2шт.

3

146478C1

RING

retaining

2шт.

4

146477C1

RING

front flood light mounting, left

1шт.

4

146476C1

RING

front flood light mounting, right

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, No. 8-18 x 1/2 p/hdcr tap

8шт.

5

143275C1

SUPPORT

front flood light mtg

2шт.

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

8-18 x 1/2 phc p/hd cr/rec tap

8шт.

6

143276C1

SUPPORT

front flood lamp aiming

2шт.

7

143279C1

SCREW

ASSY flood lamp aiming

2шт.

Выбрано товаров: 10
