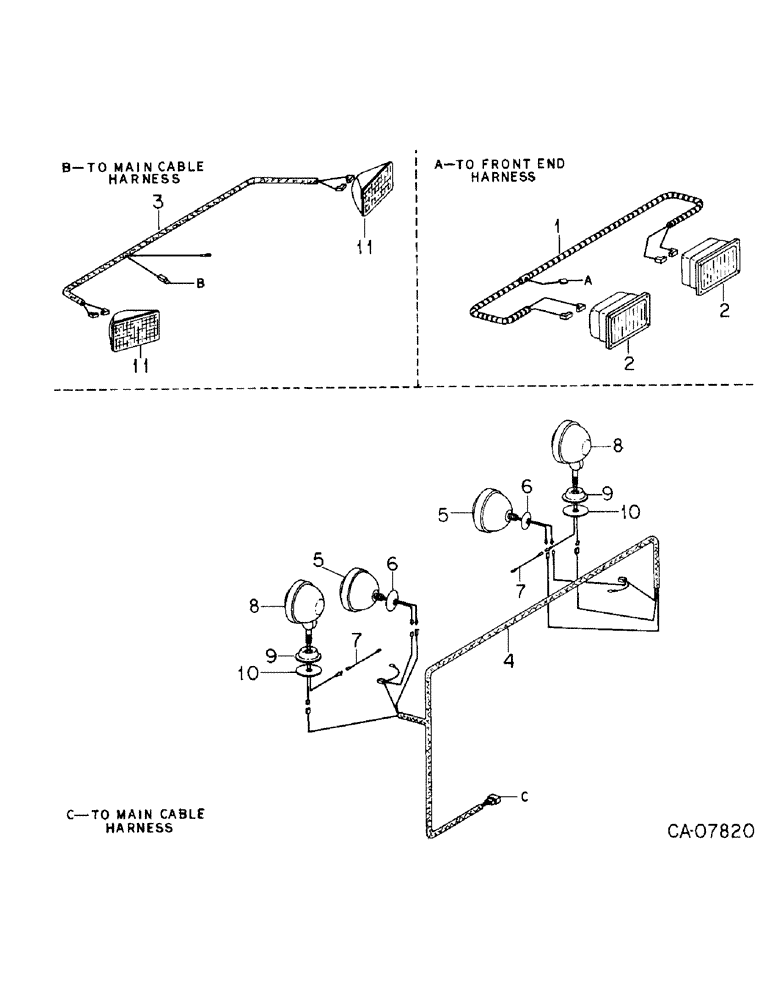

Запчасти Case IH 3488 (08-17) - ELECTRICAL, TRACTOR FLOOD AND HEAD LIGHTS (06) - ELECTRICAL

1

1251925C3

HARNESS

ASSY headlight

1шт.

384554R1

CLIP

headlight and horn cables

1шт.

2

131227C92

HEADLIGHT

ASSY 12-volt rectangular, Only servicable item is

2шт.

1265547C1

LAMP

ASSY rectangular

2шт.

144117C1

NUT

J type spring

8шт.

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAP, Cross Pan Hd, #8 x 1"

1шт.

3

148848C2

HARNESS

ASSY front flood lights

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Ground to clutch housing Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

4

146513C2

HARNESS

ASSY fender lights, Serial Range: -737

1шт.

4

245179C1

HARNESS

ASSY fender lights, Start Serial: 738

1шт.

CONDUIT convoluted, left, Use 24.0 in from bulk roll marked 464835C1

1шт.

CONDUIT convoluted, right, Use 26.0 in from bulk roll marked 464835C1

1шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 x 1-9/16 x 3/4

4шт.

5

388945R91

HEADLIGHT

LAMP ASSY rear flood, Only servicable items are

2шт.

373662R91

LAMP

type C-6, trade No. 4411

2шт.

131508C1

LAMP BASE

LAMP replacement, GE No. H7610

2шт.

676078R1

RETAINER

shock proof light

2шт.

6

388947R1

RETAINER

lamp

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

7

405209R1

CABLE

ASSY auxiliary light ground

2шт.

362667R1

CLIP

auxiliary light cable

3шт.

8

131368C92

HEADLIGHT

LIGHT ASSY rear auxiliary flood, Only servicable items are

2шт.

131203C1

LAMP

ASSY sealed beam

2шт.

676078R1

RETAINER

shockproof light, For J.W. Hobbs Light Assy.

2шт.

1252609C1

RETAINER

shockproof light, From Midwest Mfg. Light Assy.

2шт.

9

1267358C1

SEAT

rear flood light mtg ball

2шт.

120371

NUT,1/2"-20, G5

2шт.

10

NOT USED THIS APPLICATION

1шт.

11

146479C1

HEADLIGHT

LIGHT rectangular front flood, OR

2шт.

11

1265547C1

LAMP

LIGHT rectangular trapezoidal lens

2шт.
