Запчасти Case IH 3488 (08-16[A]) - ELECTRICAL, SEVEN PIN CONNECTOR AND CONNECTIONS (06) - ELECTRICAL

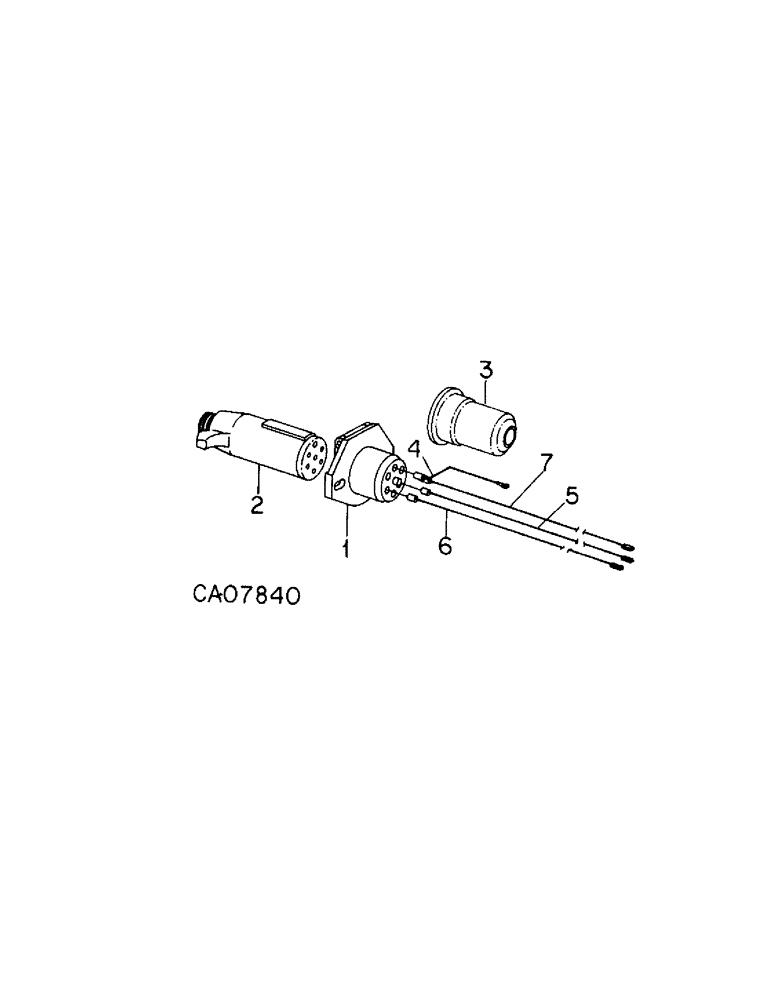

Схема запчастей Case IH 3488 - (08-16[A]) - ELECTRICAL, SEVEN PIN CONNECTOR AND CONNECTIONS (06) - ELECTRICAL
2
6
3
7
4
4
5

Артикул

Название

Примечание

Количество

1

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY connector, 7 pole flap lock

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

M8 class 8

2шт.

2

121646C1

TERMINAL CONNECTOR,Female

PLUG connector, 7 contact

1шт.

3

481849C1

PROTECTIVE COVER

COVER rubber, 7 pole socket

1шт.

4

104388C2

CABLE

ASSY 7 pin connector to ground, white

1шт.

5

64525C1

CABLE

ASSY right warning light to 7 pin connector, lt green

1шт.

6

64526C1

CABLE

ASSY left warning light to 7 pin connector, yellow

1шт.

7

1252544C1

CABLE

ASSY tail light to 7 pin connector, brown

1шт.

365584R1

CLIP

7 pin connector cables

2шт.

Выбрано товаров: 10
