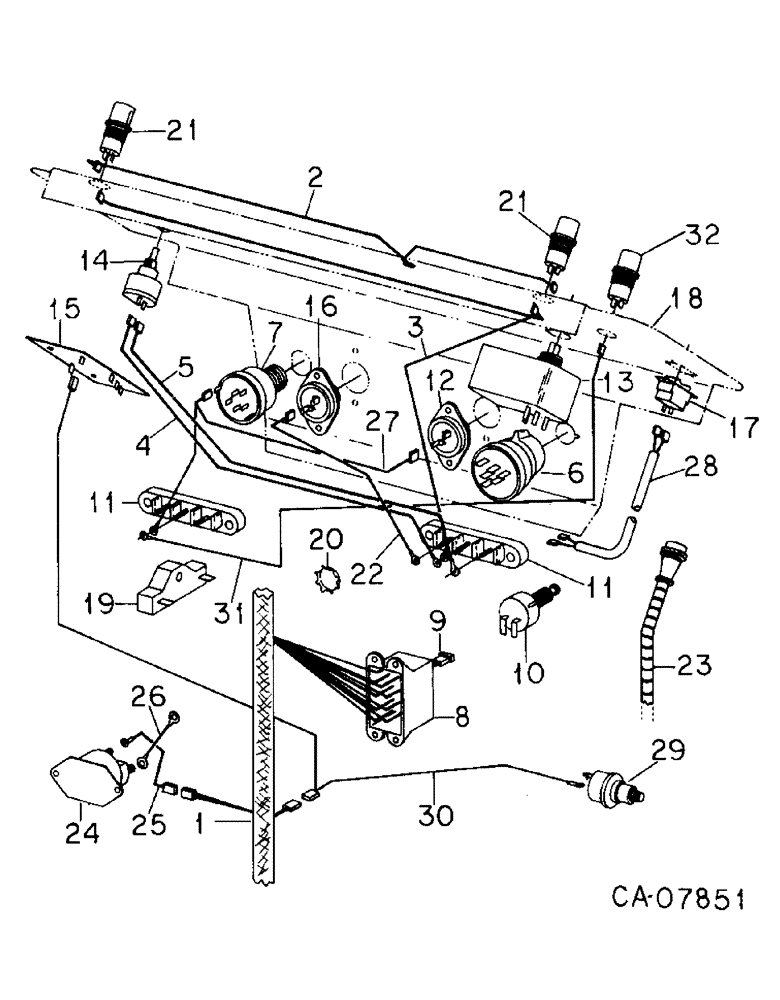

Запчасти Case IH 3488 (08-14) - ELECTRICAL, INSTRUMENT PANEL WIRING, SWITCHES AND RELATED PARTS (06) - ELECTRICAL

1

HARNESS ASSY main cable, Refer to tractor chassis wiring, this group

1шт.

2

1251646C1

CABLE

ASSY inst-lights to ground, one 9 in wire, one 11.8 in wire

1шт.

2

104384C1

CABLE

ASSY inst-lights to ground, two 10 in wires

1шт.

3

104385C1

CABLE

ASSY inst-lights to junction blk

1шт.

104389C1

CLIP

instrument light cables

2шт.

4

120294C1

CABLE

ASSY light switch to dimmer switch

1шт.

5

1120295C1

CABLE ASSY dimmer switch to instrument lights

1шт.

CONDUIT convoluted, For use on dimmer switch cables, Use 5.0 in from bulk roll marked 2643122R1

1шт.

104389C1

CLIP

dimmer switch cables

1шт.

6

107200C2

LIGHT SWITCH

SWITCH ASSY lighting

1шт.

7

1252476C1

SWITCH

ASSY key start, w/ electronic connections

1шт.

365502R1

NUT

switch mounting

2шт.

375431R1

LOCK WASHER

switch mounting

1шт.

131313C1

KEY, IGNITION

KEY ignition switch

1шт.

8

BLOCK fuse, Not serviced separately, Order main cable harness

1шт.

30988R1

SCREW,Cross Pan Hd, M4 x 20

M4 x 20 MM class 4.8 p/hdcr

4шт.

30277R1

SCREW,Cross Pan Hd, M4 x 14

WASHER, 4.3 x 9 x 0.8 MM pln

4шт.

933832R1

LOCK WASHER,M4

WASHER lock, 4 MM

4шт.

30267R1

NUT,M4, Cl 8

M4 phc class 10

8шт.

9

571691C1

FUSE

auto, type ATC-30, lt green, headlights

1шт.

9

571691C1

FUSE

auto, type ATC-30, lt green, deluxe control center

1шт.

9

509080C1

FUSE,Lt Blue, 15 Amp

auto, type ATC-15, lt blue, auxiliary lights

1шт.

9

131322C1

FUSE auto, type ATC-10, red, warning lights

1шт.

131222C1

FUSE

auto, type ATC-10, red, TA and diff lock solenoids

1шт.

9

131220C1

FUSE

auto, type ATC-5, tan, instrument gage cluster

2шт.

9

131219C1

FUSE

auto, type ATC-3, violet, digital date gauge

1шт.

10

121629C2

SWITCH

ASSY neutral starting

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP neutral start cables

1шт.

245196C91

IGNITION SWITCH

PACKAGE neutral start switch service, Consists of, Serial Range: -737

1шт.

561884C1

CONNECTOR, ELEC

CONNECTOR

1шт.

739675C2

IGNITION SWITCH

SWITCH neutral start

1шт.

245184C1

CABLE

neutral start

1шт.

364910R1

BOOT

INSULATOR terminal

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

11

107355C1

BLOCK

ASSY instrument panel junction

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

12

397940R93

SWITCH

ASSY ether solenoid push bottom

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, No. 10NF x 1/2 polyseal p/hdcr mach

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER lock, external tooth, No. 10

2шт.

26303R1

HARDWARE,#10-24

NUT, No. 10 phc mach screw type 1

2шт.

13

131209C91

SWITCH

ASSY turn signal and flasher

1шт.

71485C1

PACKAGE

KIT turn signal signal, switch handle and hardware service

1шт.

14

121705C91

SWITCH

ASSY instrument light dimmer, Only servicable items are

1шт.

146566C1

KNOB

inst-light dimmer switch

1шт.

109311H

JAM NUT

inst-light dimmer switch mounting

1шт.

15

130977C1

RECTIFIER

ASSY indicator light

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, No. 8-18 x 1/2 p/hdcr tap

2шт.

16

397940R93

SWITCH

horn button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, No. 10NF x 1/2 polyseal p/hdcr mach

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER lock, external tooth, No. 10

2шт.

26303R1

HARDWARE,#10-24

NUT, No. 10 phc mach screw type 1

2шт.

17

131319C1

SWITCH

ASSY auxiliary light rocker, For tractors w/ rear fender lights

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW, No. 6 x 3/8 polyseal p/hdcr mach

1шт.

17

141879C1

PLUG

auxiliary light switch hole, For tractors w/o rear fender lights

1шт.

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW, No. 6-20 x 1/2 polyseal p/hdcr tap

1шт.

18

PANEL instrument, Refer to group 11

1шт.

19

107558C1

RESISTOR

UNIT resistance, 25 ohm

1шт.

930693R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

M6 x 30 pln class 8.8

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 x 12.5 x 1.6 MM pln

1шт.

20

28370R1

PLUG button, 29/32 hole dia znp 29/32"

1шт.

21

107370C91

HOUSING

ASSY instrument panel light, Only servicable items are

2шт.

130894C1

LENS

instrument light

2шт.

200577H1

BULB, No. 1815

2шт.

22

404397R1

CABLE

ASSY horn switch to junction blk

1шт.

23

107238C2

HARNESS

ASSY digital data gauge, instrument panel

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP wiring

1шт.

24

107655C1

SOLENOID SWITCH

SWITCH ASSY cab power solenoid

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER lock, external tooth, No. 6 MM

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

25

143420C2

CABLE

ASSY mag switch key terminal

1шт.

26

1255753C3

CABLE

ASSY chassis cab power

1шт.

399470R1

BOOT

INSULATOR terminal cover boot, Furnished as part of 1255753C2

2шт.

27

1252532C1

CABLE

ASSY key switch, I, terminal

1шт.

28

107330C1

CABLE

ASSY auxilary lighting switch, external, For tractors w/ tilt telescoping steering wheel

1шт.

29

534599R1

SWITCH

low pressure warning

1шт.

354558R1

SHIELD

low pressure warning

1шт.

30

104770C1

CABLE

ASSY harness junction to pressure switch

1шт.

31

57592C1

CABLE

ASSY key to temp indicator light

1шт.

32

121764C91

LIGHT

ASSY trans oil temp

1шт.
