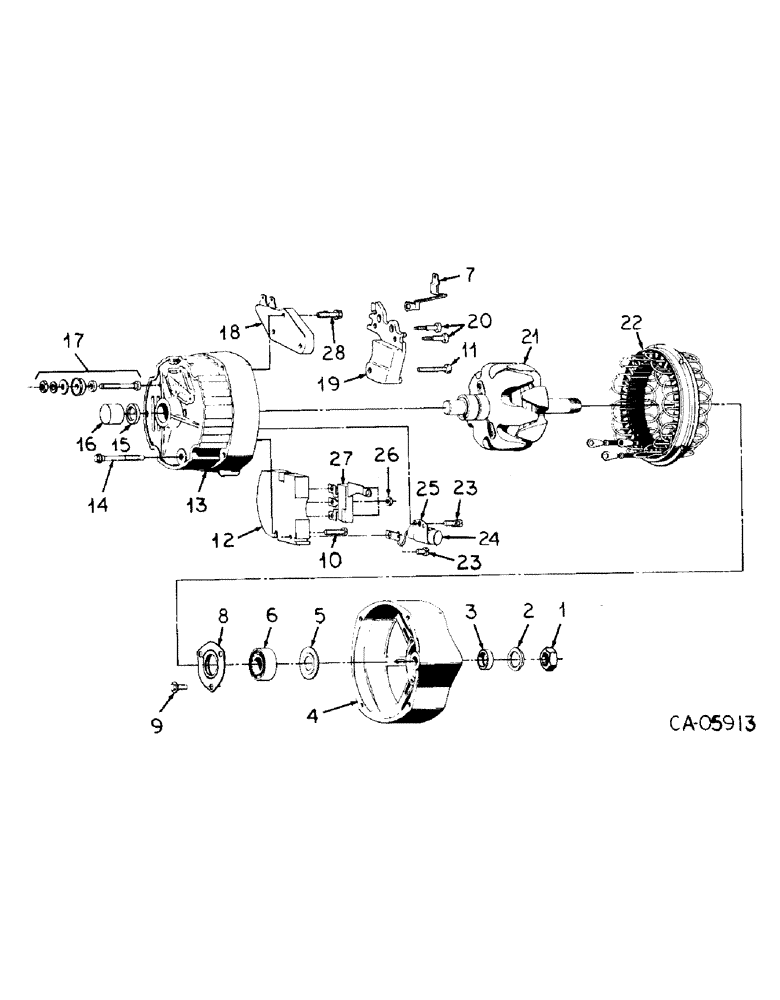

Запчасти Case IH 3488 (08-03) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO REMY (06) - ELECTRICAL

1105164

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 61 ampere, Replaces 1103183

1шт.

Components for alternator 1105164 not available at time of printing. Components listed are for alternator 1103183.

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt, 61 Ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New PN 1105164

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1105178

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 72 ampere, Replaces 1103184

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1105538

GENERATOR

ALTERNATOR-GENERATOR ASSY, 105 ampere, Replaces 1101440

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Altenator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

103808A1R

REMAN-ALTERNATOR

Remanufactured Altenator, 12 Volt 105 Ampere

1шт.

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1915172

NUT

NUT drive shaft end

1шт.

2

1941978

WASHER

WASHER lock, drive end shaft

1шт.

3

A49733

COLLAR

COLLAR drive end shaft, outside, Used on 61 and 72 amp alternator

1шт.

3

1998940

COLLAR drive end shaft, outside

1шт.

1975350

COLLAR

COLLAR drive end shaft, inside, Used on 105 amp alternator

1шт.

4

1976808

FRAME

FRAME drive end, Used on 61 and 72 amp alternator

1шт.

4

1975331

FUNNEL

FRAME FRAME drive end, Used on 105 amp alternators

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

1974861

BALL BEARING

BEARING drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL relay, Used on 61 and 72 amp alternators

1шт.

7

1979726

TERMINAL CONNECTOR

TERMINAL relay, Used on 105 amp alternators

1шт.

8

1971993

PLATE

PLATE drive end ball bearing retainer

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW bearing retainer plate attaching

3шт.

10

1876668

SCREW

SCREW rectifier support

1шт.

11

1974020

SCREW

SCREW brush holder pivot, Used on 61 and 72 amp alternators

1шт.

11

1979727

SCREW

SCREW brush holder pivot, Used on 105 amp alternators

1шт.

12

1891055

SUPPORT

SUPPORT rectifier, Used on 61 and 72 amp alternators

1шт.

12

1979721

SUPPORT

SUPPORT recitifier, Used on 105 amp alternators

1шт.

13

1975718

FRAME

FRAME slip ring end, Used on 61 and 72 amp alternators

1шт.

13

1979719

PACKAGE

FRAME slip ring end, Used on 105 amp alternators

1шт.

14

1956975

BOLT

SCREW frame attaching

4шт.

15

SEAL slip ring end, roller bearing, Part of 1974862

1шт.

16

1974862

BUSHING

BEARING slip ring end roller, Replaces 9436831

1шт.

17

1975471

PACKAGE

PACKAGE battery output terminal, Replaces 1846900

1шт.

18

585624C1

REGULATOR

REGULATOR voltage, Replaces 1116387, Used on 61 and 72 amp alternators and 105 amp alternator 1105538

1шт.

18

1116392

REGULATOR

REGULATOR voltage, Used on 105 amp alternator 1101440

1шт.

1894586

SCREW

SCREW ASSY reg attaching ground

1шт.

19

1894559

HOLDER

HOLDER ASSY, with brush, Used on 61 and 72 amp alternators

1шт.

19

1979724

HOLDER

HOLDER ASSY, with brush, Used on 105 amp alternators

1шт.

20

1876681

SCREW

SCREW ASSY brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY Used on 61 and 72 amp alternators

1шт.

21

1975333

ROTOR

ROTOR ASSY Used on 105 amp alternators

1шт.

22

1894562

STATOR

STATOR ASSY, 61 ampere

1шт.

22

1851572

STATOR

STATOR ASSY, 72 ampere

1шт.

22

1979722

STATOR

STATOR ASSY, 105 ampere

1шт.

23

1851612

SCREW

SCREW capacitor bracket and lead attaching, with lock washer

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY, Used on 61 and 72 amp alternators

1шт.

24

1978146

CAPACITOR

CAPACITOR AND BRACKET ASSY, Used on 105 amp alternators

1шт.

25

1869573

BRACKET

BRACKET capacitor mtg, Used on 61 and 72 amp alternators

1шт.

26

120622

NUT,#8-32

NUT, #8-32

3шт.

27

1971528

RECTIFIER

RECTIFIER diode trio, Used on 61 and 72 amp alternators

1шт.

27

1975328

RECTIFIER

RECTIFIER diode trio, Used on 105 amp alternator

1шт.

28

1894586

SCREW

SCREW ASSY brush holder ground, Used on 105 amp alternator

1шт.
