Запчасти Case IH 3488 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL

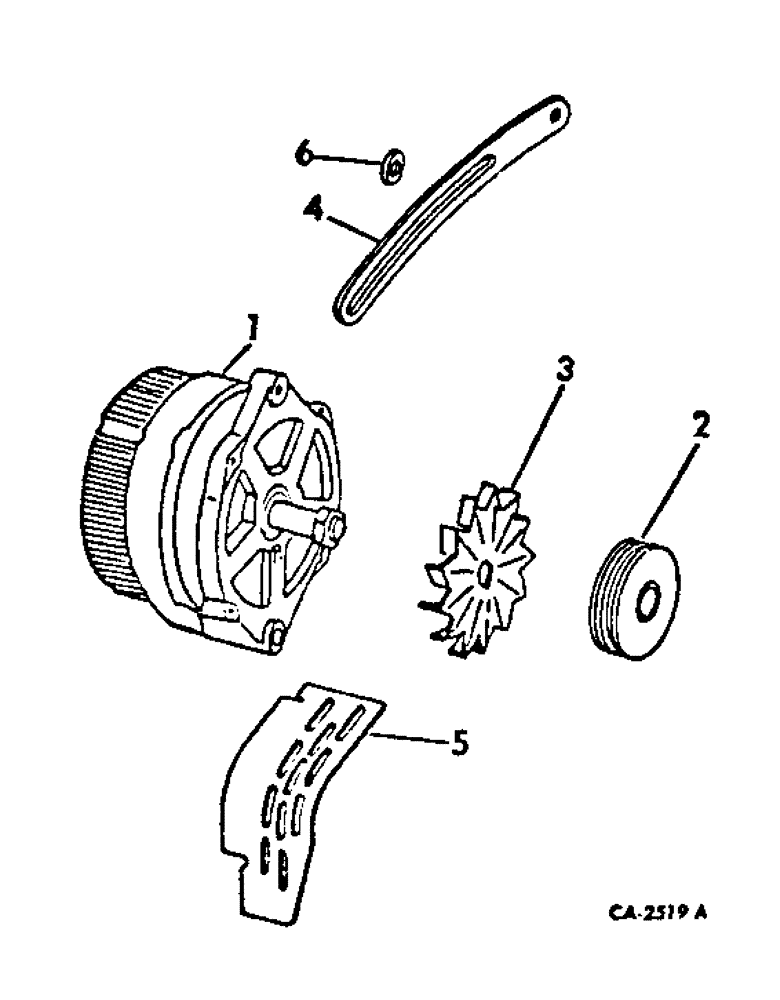

Схема запчастей Case IH 3488 - (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL
6
1
2
4
3
5

Артикул

Название

Примечание

Количество

1

1105164

ALTERNATOR

ALTERNATOR-GENERATOR, 61 amp, Delco, Replaces 1103183, For tractors w/ ROPS, OR

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 61 Amp

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN 1105164

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

107560C91

ALTERNATOR

ALTERNATOR-GENERATOR, 67 amp, Motorola, For tractors w/ ROPS

1шт.

1

ALTERNATOR-GENERATOR, 72 amp, Delco, For tractors w/ black trim cab, service replacement order 1105538

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1

1105538

GENERATOR

ALTERNATOR-GENERATOR, 105 amp, Delco, Replaces 1101440, For tractors w/ burgandy or western cab, service replacement for 1105178 or 1103184 on tractors w/ black trim cab

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Altenator, 12 Volt 105 Ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103808A1R

REMAN-ALTERNATOR

Remanufactured Altenator, 12 Volt 105 Ampere

1шт.

1

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

25709R1

WASHER

WASHER, 0.406 x 0.812 x 0.089 hdn

2шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10 MM type B hdn

2шт.

2

384645R1

PULLEY

PULLEY alternator-generator, For tractors equipped w/ ROPS frame

1шт.

2

131042C1

PULLEY

PULLEY alternator-generator, For tractors equipped w/ cab

1шт.

3

221425R1

FAN

FAN alternator-generator, For tractors equipped w/ ROPS or black cab

1шт.

3

1978026

FAN

FAN alternator-generator, For tractors equipped w/ western or burgundy cab

1шт.

4

146489C1

BRACE

BRACE alternator-generator, Replaces 532418R1

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 pln class 8.8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 MM phc

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

SEE HARDWARE LISTED UNDER ALTERNATOR-GENERATOR BRACE

1шт.

Выбрано товаров: 40
