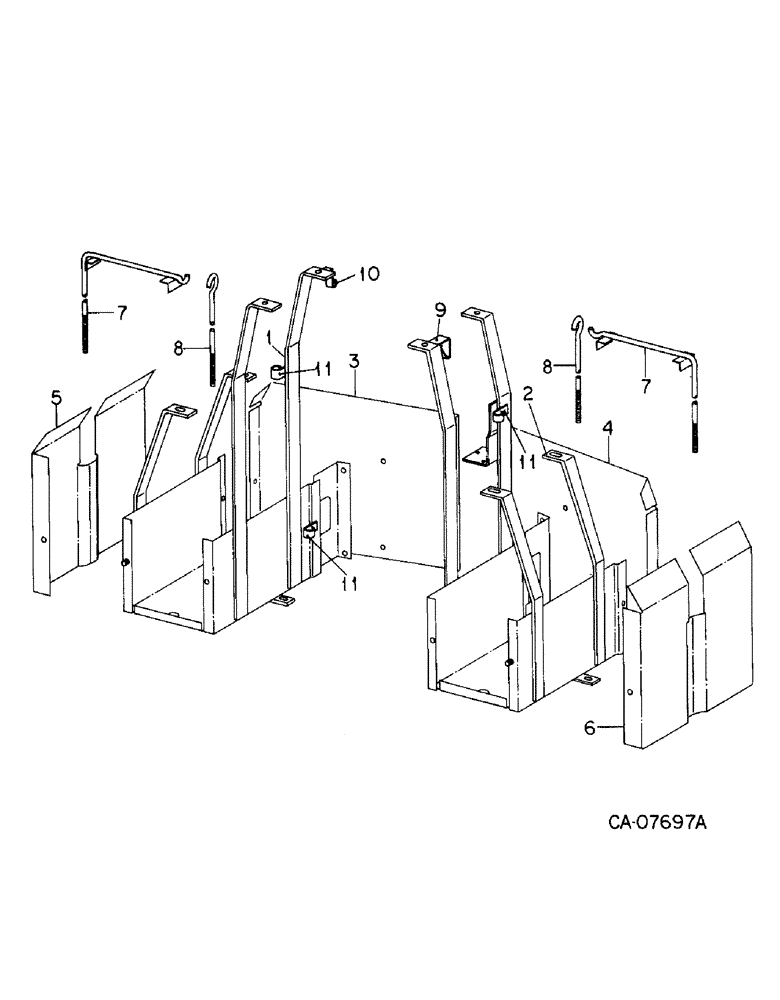

Запчасти Case IH 3488 (08-01) - ELECTRICAL, BATTERY BOX AND MOUNTING (06) - ELECTRICAL

1

1250419C2

BOX

ASSY. battery, left, Includes Ref. 10 and 11

1шт.

2

1250217C92

BOX

ASSY. battery, right, w/ product graphic, Includes Ref. 9 and 11

1шт.

599576R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 pln crg type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

flanged lock

4шт.

104329C1

NUT

1/4-20 speed

8шт.

3

1250599C2

SUPPORT

front battery box, left, For tractors w/o all wheel drive

1шт.

3

1255807C2

PANEL

SUPPORT front battery box, For tractors w/ all wheel drive

1шт.

1250591C1

CAPTIVE WASHER SCREW

SCREW hex, washer-hd cap

3шт.

4

1250600C2

SUPPORT

front battery box, right

1шт.

1250591C1

CAPTIVE WASHER SCREW

SCREW hex, washer-hd cap

3шт.

5

1255770C1

COVER

battery box, left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

flange lock, 1/4

1шт.

6

1255771C1

COVER

battery box, right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

flange lock, 1/4

1шт.

7

1255736C2

BRACKET

ASSY battery hold down

2шт.

129-419

WING NUT,5/16"-18

NUT wing, 5/16

2шт.

8

1255734C2

BOLT,5/16" - 18 x 242mm

BOLT battery hold down

2шт.

129-419

WING NUT,5/16"-18

NUT wing, 5/16

2шт.

9

1250508C1

CLAMP

CLIP hose

1шт.

10

1255747C1

CLAMP

CLIP cable harness, 90 deg

1шт.

11

1251744C2

CLAMP

CLIP battery cable, 2 required per battery box

1шт.

120391C1

DECAL

GRAPHIC product, caution inst

1шт.
