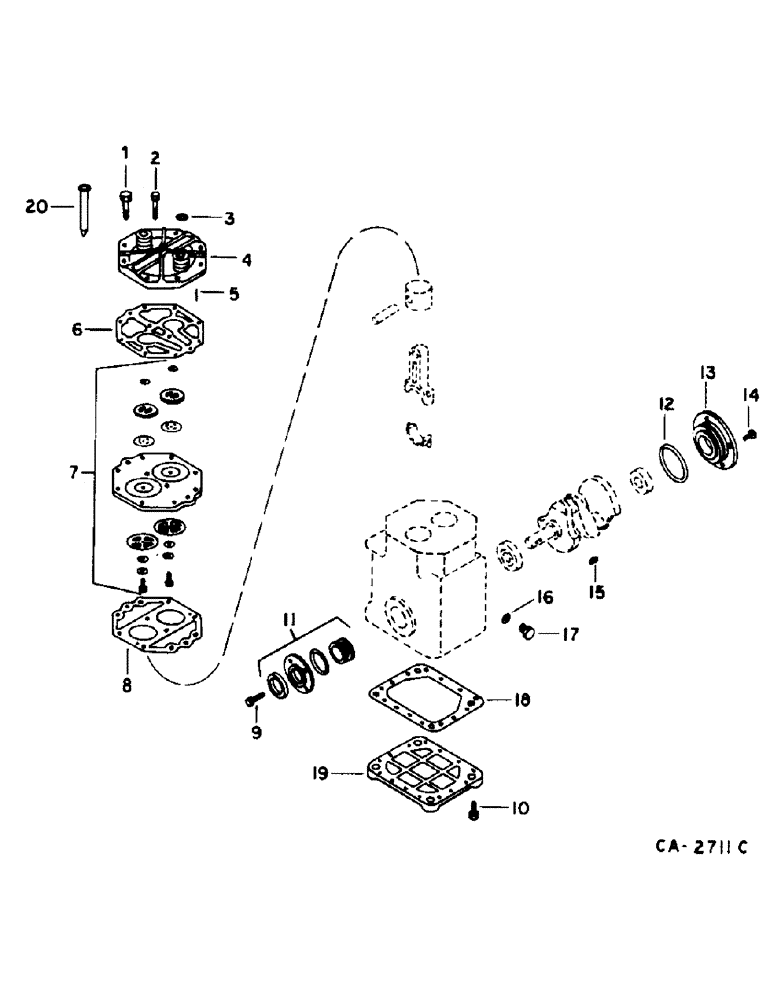

Запчасти Case IH 3488 (13-41) - SUPERSTRUCTURE, COMPRESSOR (05) - SUPERSTRUCTURE

1255750C91

COMPRESSOR

COMPRESSOR ASSY air conditioner

1шт.

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

1924009C1

CORE-A/C COMPRESSOR

Return Number, Air Compressor Assy

1шт.

1

20641R1

SCREW

SCREW, 5/16 x 1-3/8 pln h/hd mach

8шт.

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

SCREW, 5/16 x 1.500 phc ast 12pt flg

2шт.

2

118469C1

GASKET

GASKET service valve

2шт.

3

478412C91

KIT cylinder head, w/ gaskets

1шт.

4

21247R1

DOWEL,1/8" x 3/4"

PIN dowel, 1.8 x .750 pln hdn

2шт.

5

431756C1

CYLINDER HEAD GASKET

GASKET head

1шт.

6

394430C91

KIT

KIT valve plate, w/ gaskets

1шт.

7

431761C1

CYLINDER HEAD GASKET

GASKET valve plate

1шт.

8

443874

BRACKET

No. 10 x 1/2 znp h/hd mach

6шт.

9

21024R1

SCREW

SCREW, 1/4 x 5/8 znp h/hd mach

14шт.

10

592263C91

SEAL KIT

KIT shaft seal front, Replaces 428606C91

1шт.

11

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL

1шт.

12

431757C1

HOUSING

HOUSING rear bearing

1шт.

13

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

14

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

15

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL oil plug

2шт.

16

86982693

PLUG

PLUG filler/drain, 3/8-24 znp out/h/hd

2шт.

17

431760C2

GASKET

GASKET base

1шт.

18

431755C1

PLATE

SPARE PART PLATE base

1шт.

19

118210C1

FILTER SCREEN

SCREEN suction filter

1шт.
