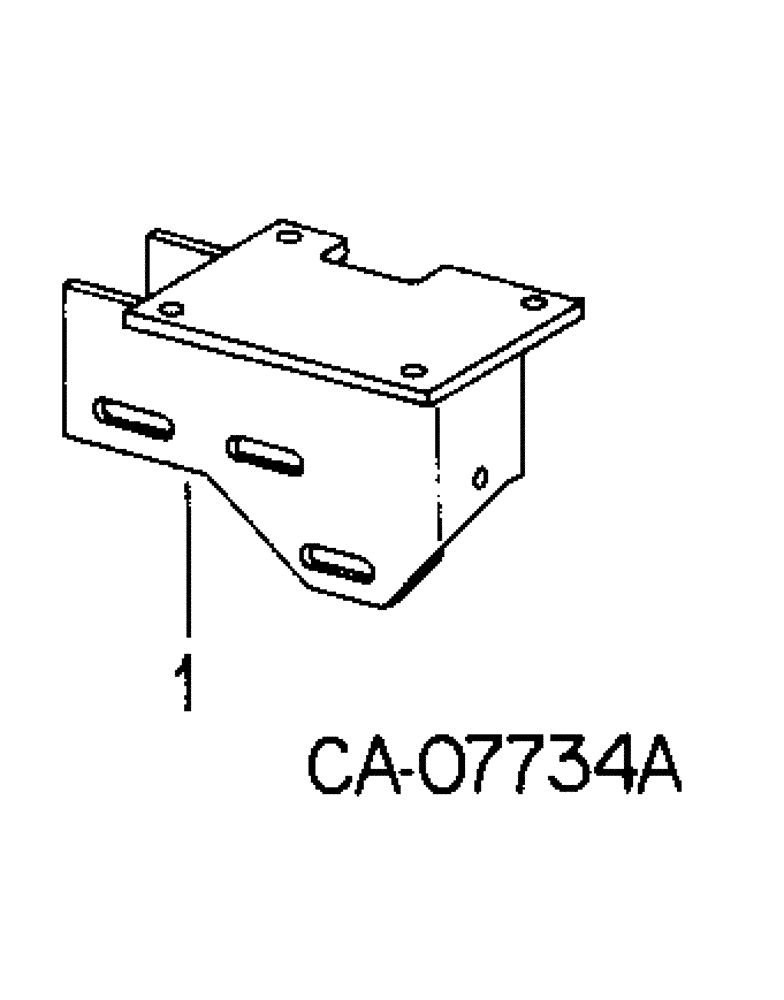

Запчасти Case IH 3488 (13-39) - SUPERSTRUCTURE, COMPRESSOR MOUNTING (05) - SUPERSTRUCTURE

1

1267286C1

BRACKET

ASSY, Replaces 143140C1

1шт.

28365R1

SCREW

set, 3/8 x 3-1/4 znp sq/hd c/pt

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

21741R1

WASHER

0.406 x 0.875 x 0.105

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.
