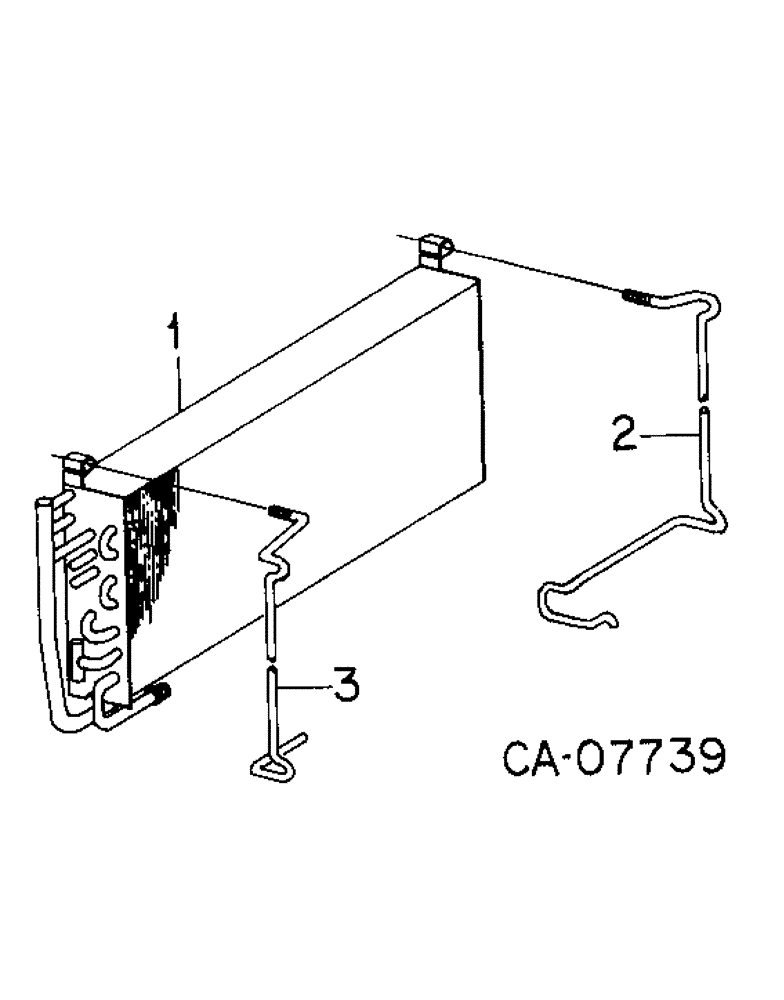

Запчасти Case IH 3488 (13-37) - SUPERSTRUCTURE, CONDENSER AND MOUNTING (05) - SUPERSTRUCTURE

1

143022C1

CONDENSER

ASSY

1шт.

2

1250466C1

BRACKET

condenser mtg, left

1шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

M8 x 20 phc class 10.9

4шт.

30173R1

NUT,M30 x 3.5, Cl 10

M30 phc class 10

8шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

WASHER lock, 8 MM

2шт.

934900

NUT wing, M8 znp

2шт.

3

143178C1

BRACKET

condenser mtg, right

1шт.
