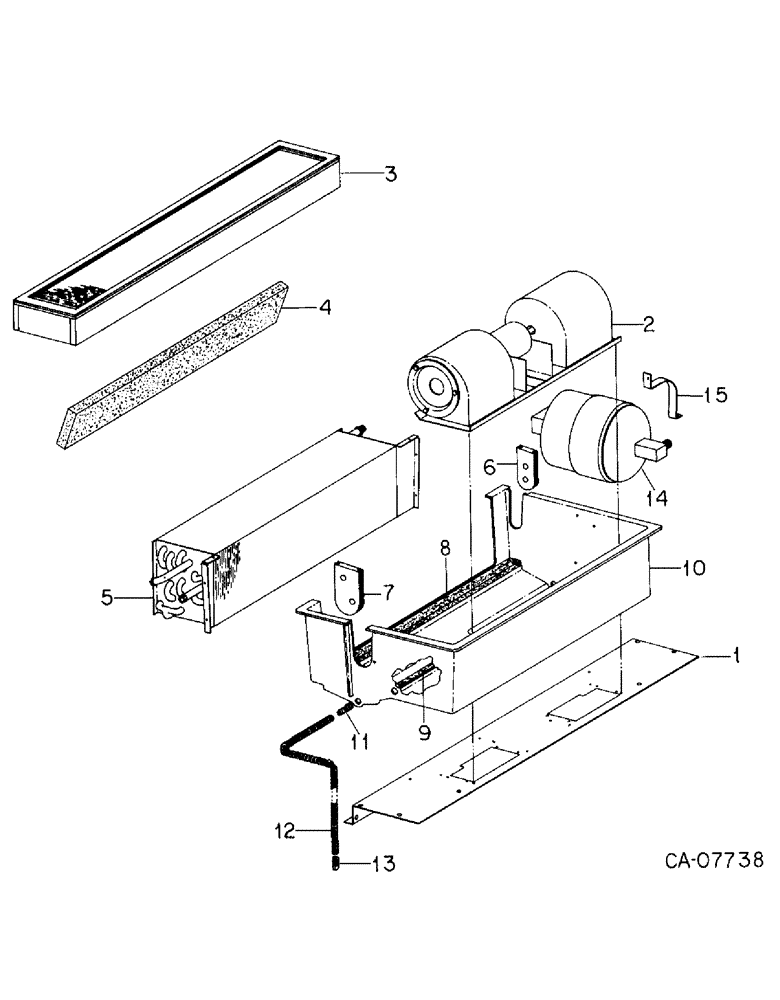

Запчасти Case IH 3488 (13-36) - SUPERSTRUCTURE, EVAPORATOR-HEATER CORE, BLOWER AND RELATED PARTS (05) - SUPERSTRUCTURE

1

1262366C1

SUPPORT

sheet, blower box mtg, Replaces 135778C2

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, No. 10-16 x 1/2 polyseal

4шт.

2

1255878C91

BLOWER ASSY.

BLOWER ASSY pressurizer, Refer to pressurizer blower, this group for list of components

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

8шт.

3

143481C92

CAB FILTER

PACKAGE cab panel filter

1шт.

3

87543798

CAB FILTER

Charcoal cab filter

1шт.

4

109240C1

CAB FILTER

FILTER air recirculation

1шт.

5

135777C2

CORE

combined evaporator-heater

1шт.

6

1250463C2

GROMMET

rubber, evaporator tubes

1шт.

7

1250464C2

GROMMET

rubber, heater tubes

2шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, No. 10-16 x 3/8 polyseal p/hdcr tap

4шт.

8

1250534C3

SEAL

STRIP evaporator-heater core, front

1шт.

9

1250533C2

SEAL

STRIP evaporator-heater core, rear

1шт.

10

135776C1

HOUSING

evaporator-heater core

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, No. 10-16 x 3/4 phc p/wh cr tap

6шт.

445444

NUT,U, #10-16

10-12 phc u-spr style II

2шт.

11

1250522C2

FITTING

drain spout

2шт.

12

HOSE evaporator drain, Use 100 in from bulk roll marked 198091C1

2шт.

169850C1

CLIP

2шт.

13

109239C2

CHECK VALVE

VALVE, CHECK, Evaporator drain

2шт.

14

143469C2

RESERVOIR

RECEIVER-DRYER

1шт.

15

1250439C1

CLAMP

receiver dryer

1шт.
