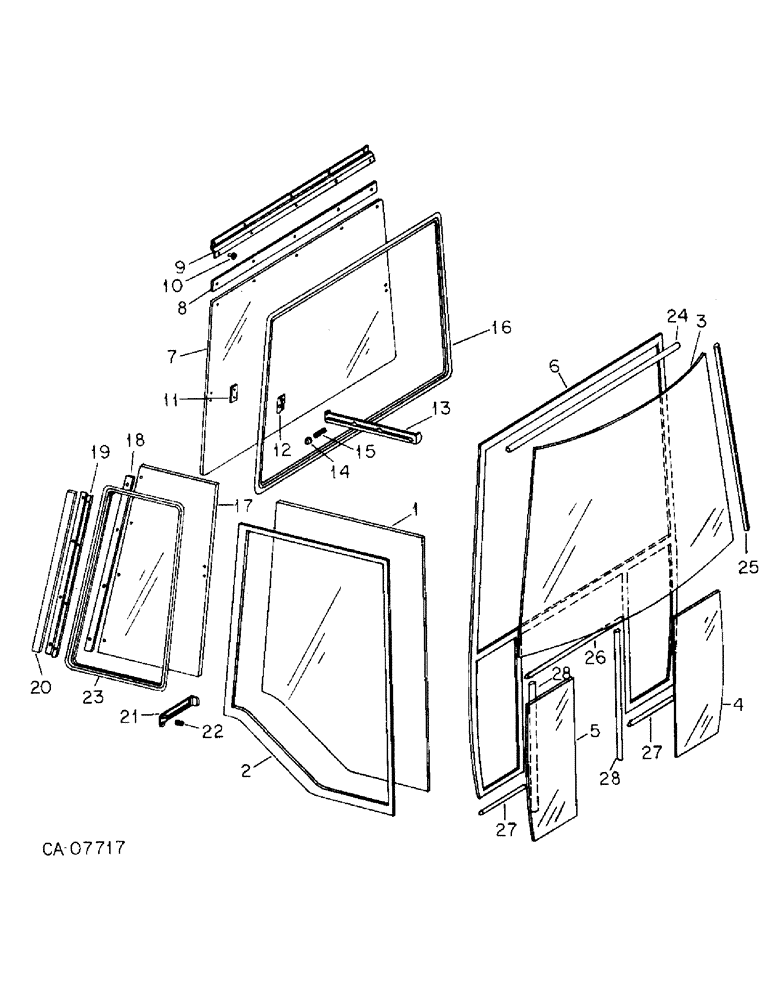

Запчасти Case IH 3488 (13-32) - SUPERSTRUCTURE, CAB GLASS (05) - SUPERSTRUCTURE

1

109584C2

GLASS

door window

2шт.

2

109578C2

DOOR SEAL

door window glass, left

1шт.

2

109579C2

DOOR SEAL

door window glass, right

1шт.

3

109133C3

GLASS

upper windshield

1шт.

4

109131C2

GLASS

lower windshield

1шт.

5

109132C2

GLASS

lower windshield, right

1шт.

6

111611C2

SEAL

windshield

1шт.

7

109318C2

GLASS

rear window

1шт.

8

109586C1

PAD

rear window hinge

1шт.

9

117673C1

HINGE

ASSY rear window

1шт.

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW, 1/4 x 3/4 polyseal p/hdcr tap

8шт.

115109

WASHER,1/4"

1/4"

8шт.

120392

WASHER,1/4", SAE

0.281 x 0.625 x 0.051

5шт.

111626C1

NUT

lock, 1/4-20 nylon insert lt-thn lc-stl phc

5шт.

10

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

21шт.

11

109587C1

PAD

sector arm pivot

4шт.

12

109588C1

BRACKET

sector arm pivot

4шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW , w/ washer, 1/4-20 x 3/4

8шт.

120392

WASHER,1/4", SAE

0.281 x 0.625 x 0.051

8шт.

111626C1

NUT

lock, 1/4-20 nylon insert lt-thn lc-stl phc

8шт.

13

111353C2

ARM

rear window sector, left

1шт.

13

111354C2

ARM

rear window sector, right

1шт.

27930R1

PIN

3/8 x .500 n/d phc type 1 hd

2шт.

14

118140C1

NUT

FASTENER push-on

6шт.

15

109590C1

SPRING

sector arm comperssion

4шт.

111365C1

CONE WASHER

coned

8шт.

16

SEAL rear window glass, Furnish 148 in from bulk 25 ft roll marked 64518C1

1шт.

17

1250436C2

GLASS

quarter window

2шт.

18

109592C1

PAD

quarter window hinge

2шт.

19

109478C1

HINGE

quarter window

2шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW, w/ washer, 1/4-20 x 3/4

12шт.

115109

WASHER,1/4"

1/4"

8шт.

120392

WASHER,1/4", SAE

0.281 x 0.625 x 0.051

8шт.

111626C1

NUT

nylon insert, 1/4-20 znd

8шт.

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 polyseal p/h cr tap

8шт.

20

118122C1

SEAL

quarter window hinge

2шт.

21

111412C1

ARM

quarter window sector, left

1шт.

21

111413C1

ARM

quarter window sector, right

1шт.

27931R1

PIN

3/8 x 1 n/d phc type 1 hd

2шт.

22

109585C1

SPRING

pivot comperssion

2шт.

23

SEAL quarter window, Use 88.1 in from a bulk 25 ft roll marked 64518C1

2шт.

24

LOCK windshield glass seal, header, Use 48.06 in from a bulk 50 ft roll marked 64514C1

1шт.

25

LOCK windshield glass seal, side, Use 58.02 in from a bulk 50 ft roll marked 64514C1

2шт.

26

LOCK windshield glass seal, center, Use 55.54 in from a bulk 50 ft roll marked 64514C1

1шт.

27

LOCK windshield glass seal, bottom, Use 13.45 in from a bulk 50 ft roll marked 64514C1

2шт.

28

LOCK windshield glass seal, inner, LH, Use 21.35 in from a bulk 50 ft roll marked 64514C1

1шт.

28

LOCK windshield glass seal, inner, RH, Use 21.35 in from a bulk 50 ft roll marked 64514C1

1шт.
