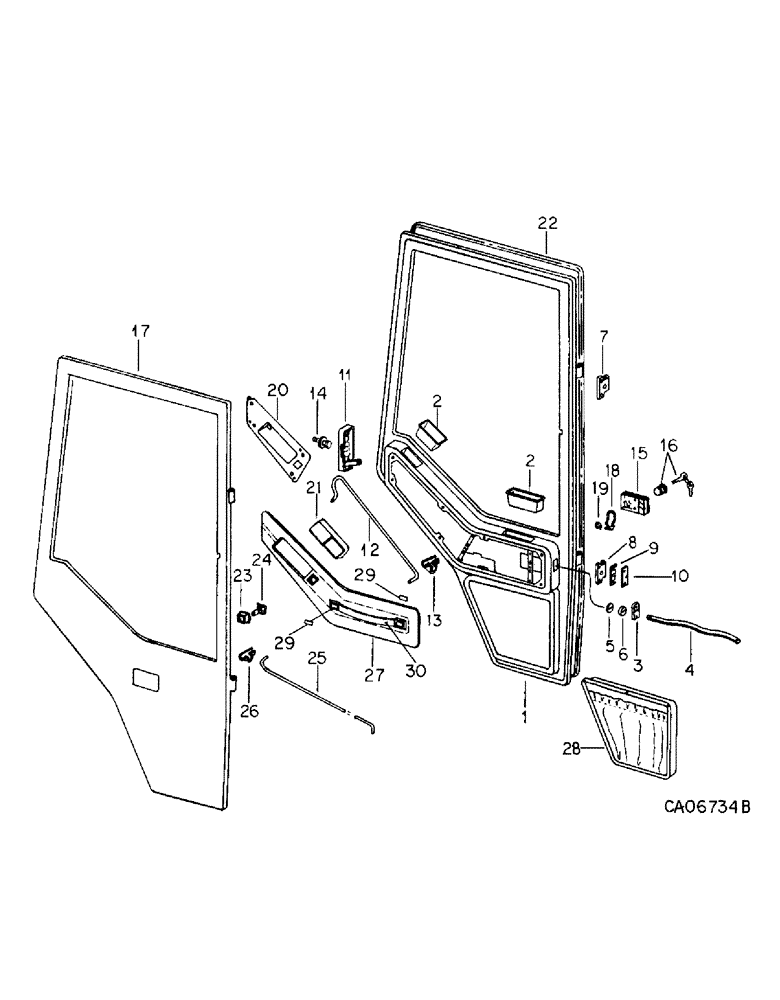

Запчасти Case IH 3488 (13-28) - SUPERSTRUCTURE, DOORS, TRACTORS WITH BURGUNDY CAB (05) - SUPERSTRUCTURE

1

143348C2

DOOR

ASSY cab, left side

1шт.

131-835

SPRING NUT,U, #10-24

10-24 phc u-spr style II

4шт.

2

111398C1

POCKET

door grab

4шт.

3

111552C2

HINGE

LATCH ASSY door check, Also order No. 8 hardware, 1/4" for 111552C1

2шт.

159658

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

No. 8 x 3/4 znp p/hdcr mach

4шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

120622

NUT,#8-32

4шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

4

111495C2

ARM

door check

2шт.

5

111493C1

WASHER

slotted

2шт.

6

111494C1

WASHER

bumper

2шт.

18556R1

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

2шт.

28375R1

PIN, 1/4 x 0.750 phc type 1 hd

2шт.

1255811C1

NUT

push hat

2шт.

7

109522C2

HINGE

cab door, upper body leaf

2шт.

8

111341C2

HINGE

cab door, lower body leaf

2шт.

9

109524C1

SHIM

cab door hinge, Or as required

4шт.

10

109385C1

PLATE

door hinge tapping

4шт.

1276055C1

SELF-TAP SCREW,Cross Flat Hd, 5/16" x 7/8"

SCREW, 5/16 x 7/8 polyseal f/hdcr l/w mach, Or

1шт.

1276058C1

SCREW,Cross Flat Hd, Csk, 5/16" - 18 x 1", w/LW

5/16 x 1 polyseal, Or as required

12шт.

11

111471C1

LATCH

ASSY door, left

1шт.

11

111472C1

HANDLE

LATCH ASSY door, right

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 polyseal p/hdcr mach

8шт.

178515

WASHER lock, external-internal tooth, 1/4 phc

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

12

117953C1

ROD

latch control, left

1шт.

12

117954C1

ROD

latch control, right

1шт.

13

428497C1

REINFORCEMENT

rod

6шт.

14

111464C1

PLATE

STRIKER ASSY door lock

2шт.

22825R1

WASHER

0.469 x 1.250 x 0.164, Or as required

2шт.

21331R1

WASHER

0.469 x 1.250 x 0.054, Or as required

2шт.

15

111465C1

HANDLE

ASSY door outer, left

1шт.

15

111332C1

HANDLE

ASSY door outer, right

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

flange lock, 10-24 C-Z

2шт.

16

111663C1

LOCK

ASSY cab door, w/ key, left

1шт.

17

143349C2

DOOR

ASSY cab, right side

1шт.

445438

BOX

10-24 phc u-spr style II

4шт.

18

897845R1

RETAINER

cylinder housing

1шт.

19

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

1шт.

20

118512C1

PANEL

inner door cover, left

1шт.

20

118513C1

PANEL

inner door cover, right

1шт.

21

111394C1

HANDLE

ASSY inner door, left

1шт.

21

111395C1

HANDLE

ASSY inner door, right

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

flange lock, 10-24 C-Z

4шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, No. 10 x 3/8 polyseal p/hdcr mach

8шт.

22

109595C1

DOOR SEAL

door, left

1шт.

22

109596C1

DOOR SEAL

door, right

1шт.

23

118593C1

HOUSING

inner lock, right

1шт.

24

111410C1

BUTTON

inner lock, right

1шт.

25

109573C1

ROD

inner lock, right

1шт.

26

428497C1

REINFORCEMENT

rod end

2шт.

27

143380C92

PANEL

ASSY inner door trim, left

1шт.

27

143381C92

PANEL

ASSY inner door trim, right

1шт.

143353C1

NUT

10-24 speed

4шт.

118550C1

CLAMP

CLIP trim speed

18шт.

28

143013C2

POCKET

ASSY door, left

1шт.

28

143014C2

POCKET

ASSY door, right

1шт.

29

143354C1

COVER

handle

4шт.

30

143365C2

HANDLE

door trim

2шт.

143127C1

FASTENER

push-in

6шт.
