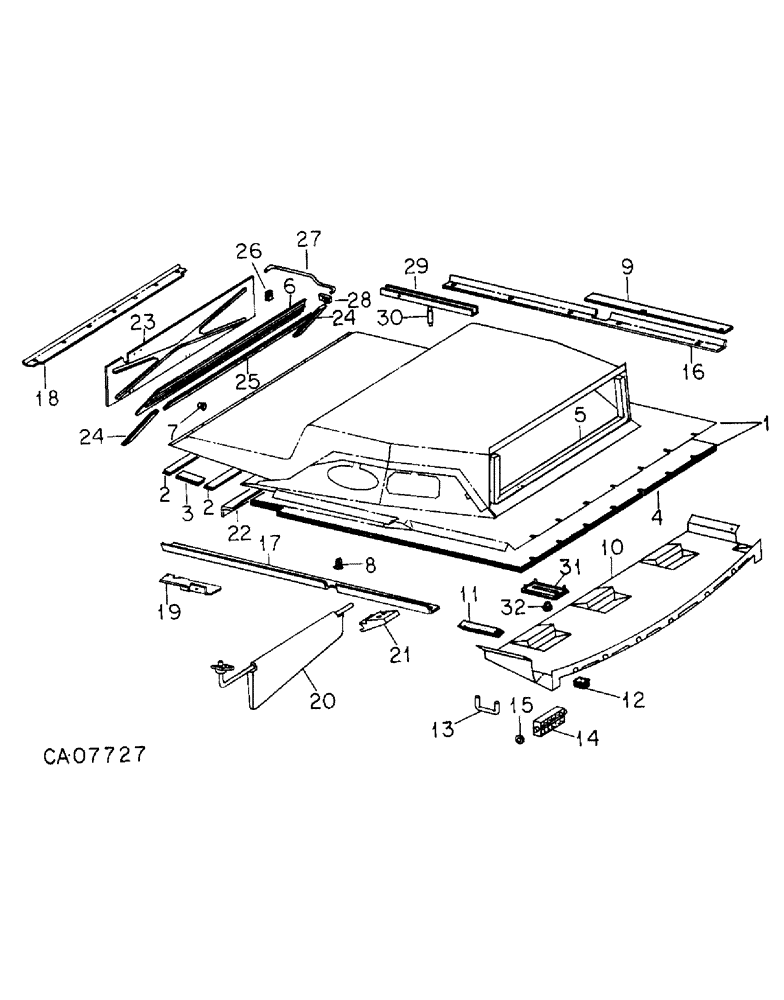

Запчасти Case IH 3488 (13-24) - SUPERSTRUCTURE, HEADLINER AND SUN VISORS (05) - SUPERSTRUCTURE

1

118184C94

DUCT

ASSY headliner, For cabs w/ black trim interior

1шт.

1

143151C93

DUCT

ASSY headliner, w/ radio, For cabs w/ western or burgundy interior

1шт.

1276096C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 polyseal p/hdcr tap

4шт.

1276098C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/8"

SCREW, 104 x 1-3/8 polyseal

2шт.

1250628C2

SPACER

spacer

6шт.

118151C1

CLIP

U-shaped spring

16шт.

143382C1

CLIP

U-shaped spring

1шт.

2

118144C1

SEAL

rear intake, long

2шт.

3

118145C1

SEAL

rear intake, short

2шт.

4

117632C4

SHEET

rear headliner foam, For cabs w/ black trim interior

1шт.

4

1262101C1

SHEET

foam, For cabs w/ western or burgundy interior

1шт.

5

1250479C2

SEAL

duct front

1шт.

6

109282C1

GRILLE

recirculation

1шт.

7

111296C1

BUTTON

KNOB griller retainer

6шт.

8

489348C1

RETAINER

rear headliner assy

2шт.

9

118155C2

STRIP

headliner

2шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, No. 10-16 x 1/2 polyseal

4шт.

10

118194C2

PANEL

front headliner

1шт.

118520C2

SCREW

shoulder tap 10-16 phc

7шт.

28439R1

WASHER, 0.266 x 0.50 x 0.036 phc

7шт.

1276101C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal p/hdcr tap

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 x 0.625 x 0.051 phc

6шт.

11

118206C1

SEALING STRIP

front headliner

2шт.

12

118207C1

SEALING STRIP

front air

2шт.

13

117756C1

SEAL front headliner corner

2шт.

14

109227C1

VENT

ASSY air discharge

3шт.

15

117611C2

SPACER

friction

9шт.

16

109505C1

RETAINER

headliner side, left, For cabs w/ black trim interior

1шт.

16

118539C1

RETAINER

headliner side, left, For cabs w/ western or burgundy interior

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

5шт.

17

109506C1

RETAINER

headliner side, right, For cabs w/ black trim interior

1шт.

17

118540C1

RETAINER

headliner side, right, For cabs w/ western or burgundy interior

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

5шт.

18

109460C1

SUPPORT

ASSY rear headliner

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, No. 10-16 x 1/2 polyseal

7шт.

19

109507C1

SUPPORT

headliner corner, left

1шт.

19

109508C1

SUPPORT

headliner corner, right

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

2шт.

20

118543C1

VISOR, SUN

VISOR ASSY sun, For cabs w/ western or burgundy interior

2шт.

1276054C1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, No. 10 x 1/2 polyseal o/hdcr mach

8шт.

21

118537C1

RETAINER

visor arm, For cabs w/ western or burgundy interior

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, No. 10 x 3/8 polyseal p/hdcr mach

2шт.

118542C1

NUT

twin spring, 10-24

1шт.

22

111666C1

BRACKET

door

1шт.

23

117621C1

DOOR

ASSY recirculation

1шт.

24

111668C1

SEAL

recircluation door, short

2шт.

25

111669C1

SEAL

recirculation door, long

2шт.

26

118345C1

BUMPER

recirculation door

1шт.

27

111670C2

ROD

recirculation control

1шт.

28

428497C1

REINFORCEMENT

rod end

2шт.

29

117610C1

CHANNEL

ASSY slide

1шт.

30

111675C1

STUD

control

1шт.

31

118183C1

PANEL

recirculation control trim

1шт.

1276099C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3 3/4"

SCREW, No. 8-18 x 2-3/4 polyseal o/hdcr tap

4шт.

32

111683C1

KNOB

air control

1шт.

117995C1

PACKAGE

KIT trim panel fastener

1шт.
